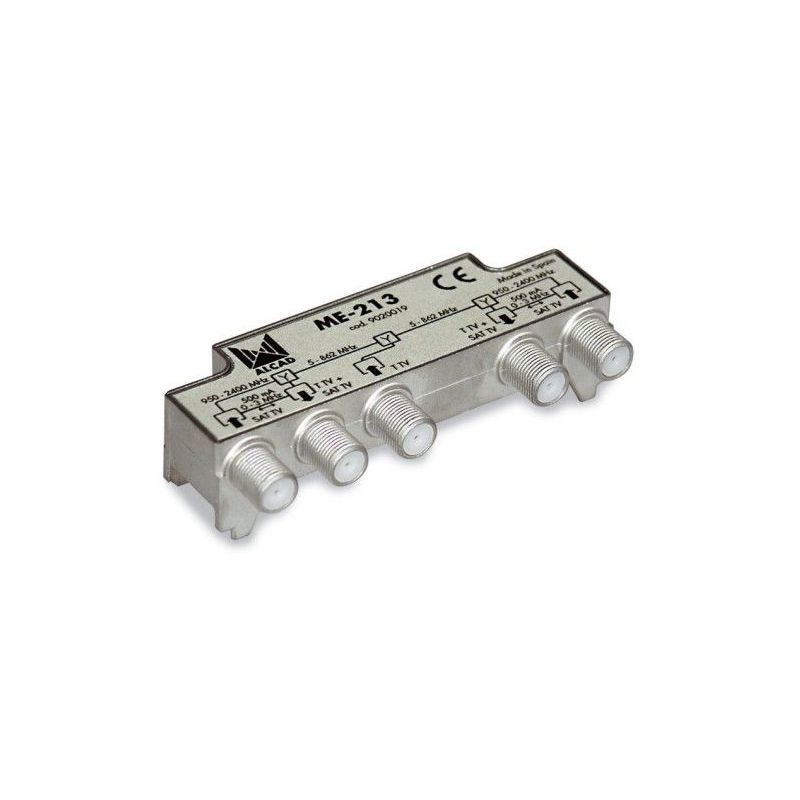

Alcad ME-213 - Serie 902: Double multiplexer tv-sat for indoor use.

Double multiplexer that combines the terrestrial TV and FM radio signals with two separate satellite IF signal from two LNBs. The two resulting signals are distributed each one a single coaxial cable. It can be also used as a diplexer for terrestrial TV and satellite IF signals coming from a single cable. SIngle and double multiplexer

Applications

• Designed for TV installations with two coaxial cables in which distribution to the dwellings is performed with two coaxial cables. SMATV satellite and terrestrial TV installations.
• It is used to combine the signals after amplifying at the head of the installation, or it is used as a separator to distribute terrestrial and satellite TV signals to different points.

Characteristics

• Shielded zamak chassis and type F connectors.
• DC Path to the SAT input to power and switch the LNB.

Accessories

• 9120039 CM-004 F male connector for coaxial Ø6.6 mm.
• 9080023 MC-302 F male connector for coaxial Ø7.0 mm.
