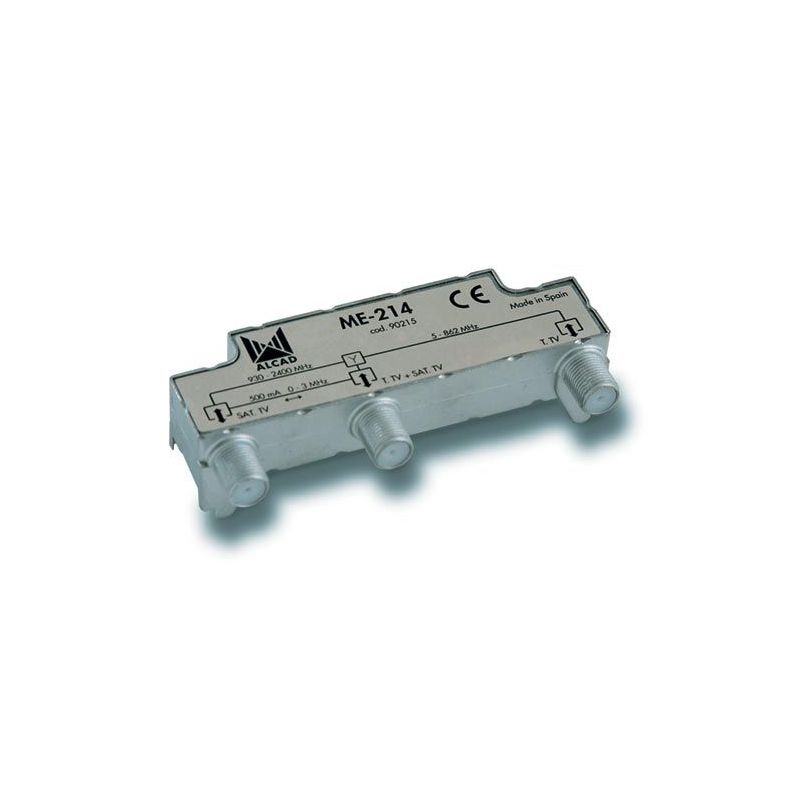

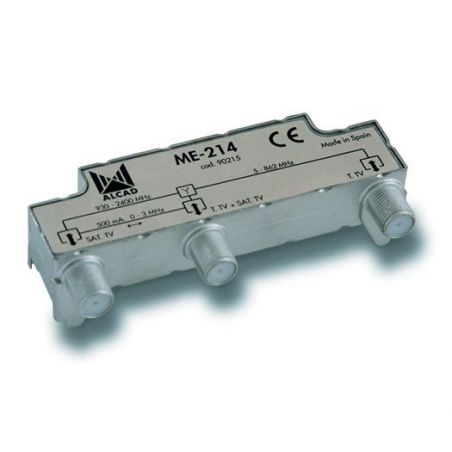

Alcad ME-214 - Serie 902: Multiplexer 2 inputs, tv-sat.

Multiplexer that combines the terrestrial TV and FM radio signals with the satellite IF signal from the LNB. The resulting signal is distributed by a single coaxial cable. It can be also used as a separator for terrestrial TV and satellite IF signals coming from a single cable.

Applications

• Satellite and terrestrial TV installations of collective type.
• It is used to combine the signals after amplifying at the head of the installation, or it is used as a separator to distribute terrestrial and satellite TV signals to different points.

Characteristics

• Shielded zamak chassis and type F connectors.
• DC Path to the SAT input to power and switch the LNB.

Accessories

• 9120039 CM-004 F male connector for coaxial Ø6.6 mm.
• 9080023 MC-302 F male connector for coaxial Ø7.0 mm.

Technical specifications
