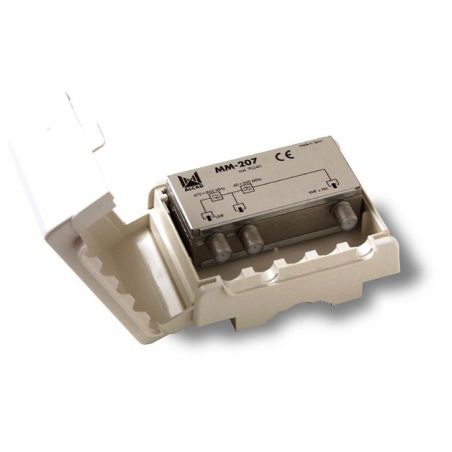

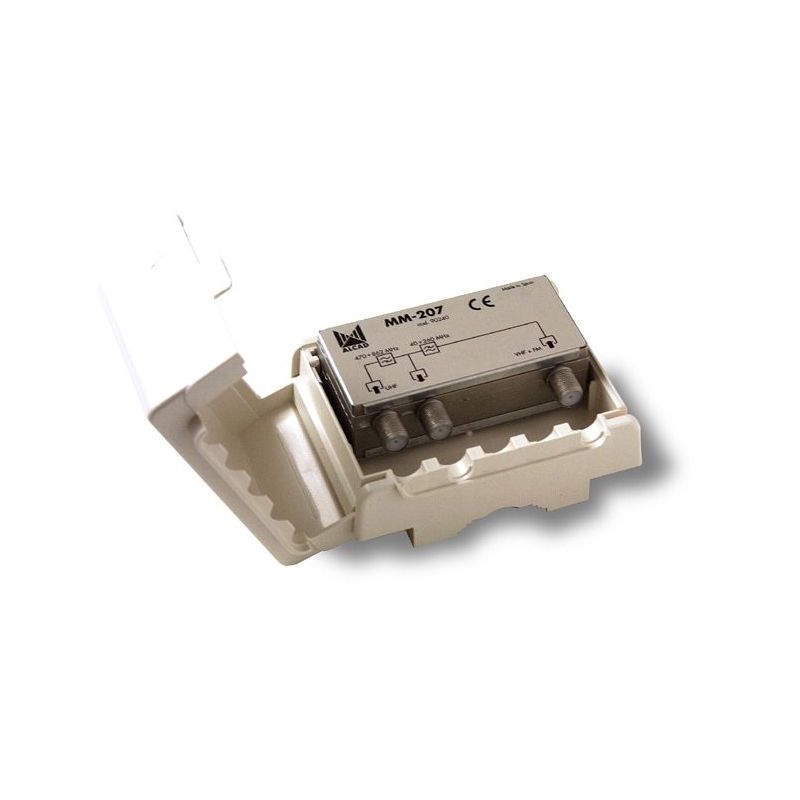

Alcad MM-207 - Serie 902: Multiplexer uhf-vhf/fm mast.

Multiplexers for masts, universal or by bands, of two inputs. They mix the signals from several antennas in a single coaxial cable. They incorporate switchable DC paths to permit the feeding of a preamplifier.

Applications

• Individual digital and analogue terrestrial TV installations.
• In installations where the reception levels are adequate (60 to 75 dBµV) the signals of all the antennas can be combined to distribute them in the building with a single coaxial cable.

Characteristics

• Shielded zamak chassis, covered by an ABS plastic box for outdoor use.
• Fixed to the mast by means of a polyamide clamp.
• F-type connectors.
• Supplied in individual or multiple packs.

Accessories

• 9120039 CM-004 Male F connector for Ø6.6mm coaxial.
• 9080023 MC-302 Male F connector for RG-6 coaxial, Ø7.0 mm

Technical specifications
