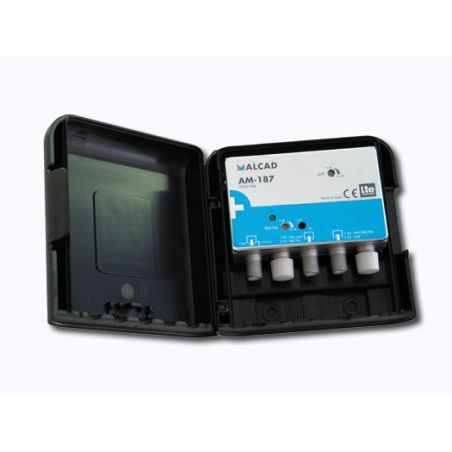

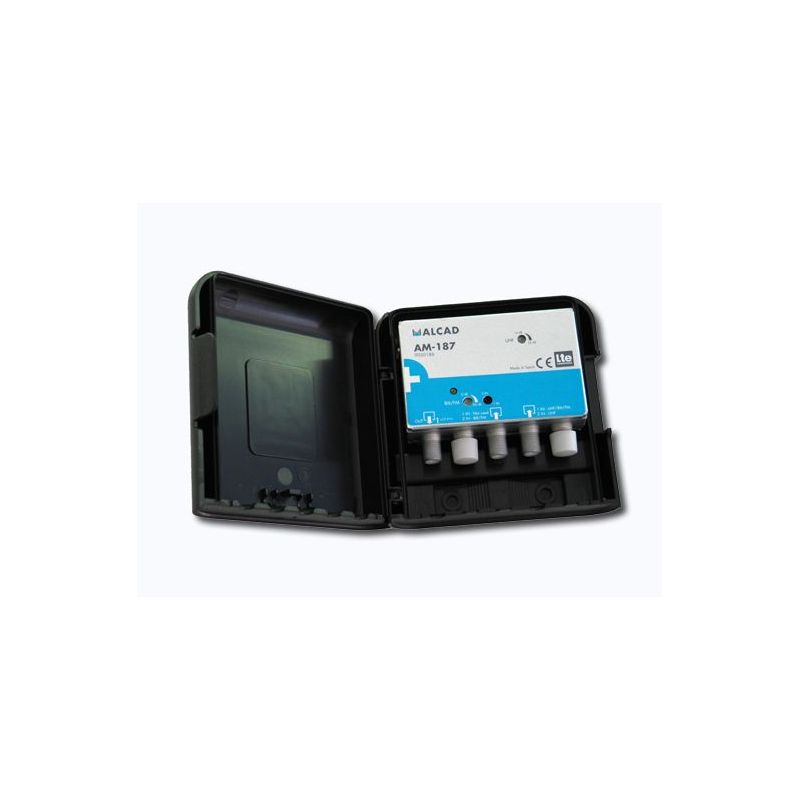

Alcad AM-187 - Serie 903: Amp uhf+biii/fm 32 db lte700 mast 12 vdc.

Broadband amplifiers for masts, com patible with LTE mobile telephone signals with amplification band in UHF 470-694 MHz. They have one input to amplify and combine the signals from the antennas. The inputs can be configured as a single input for the combined bands or two inputs for separate bands. They are fed through the coaxial cable from a power supply unit installed inside the building.

Applications

• Individual digital and analogue terre strial TV installations which are affected by the transmission of LTE mobile phone signals and which require low gain.
• They amplify and mix the signals from several antennas.
• The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.

Characteristics

• Shielded zamak chassis, covered by a weather-resistant plastic casing. Easy to open and close, the chassis can be tilted to facilitate manipulation.
• It can be installed either on a mast, by mean s of a polyamide clamp, or on a wall.
• Resistant to sun and water (IP53).
• Greater insulation between inputs and outputs.
• F-type connectors for screwing or crimping.

Technical specifications
