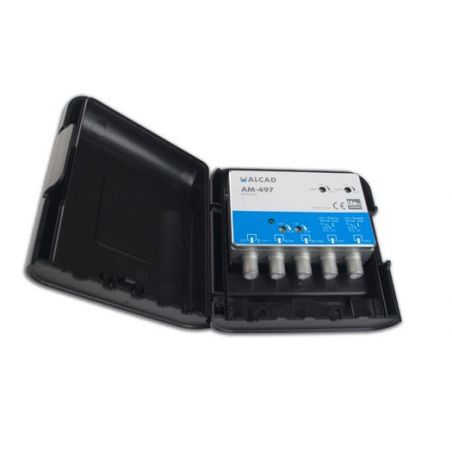

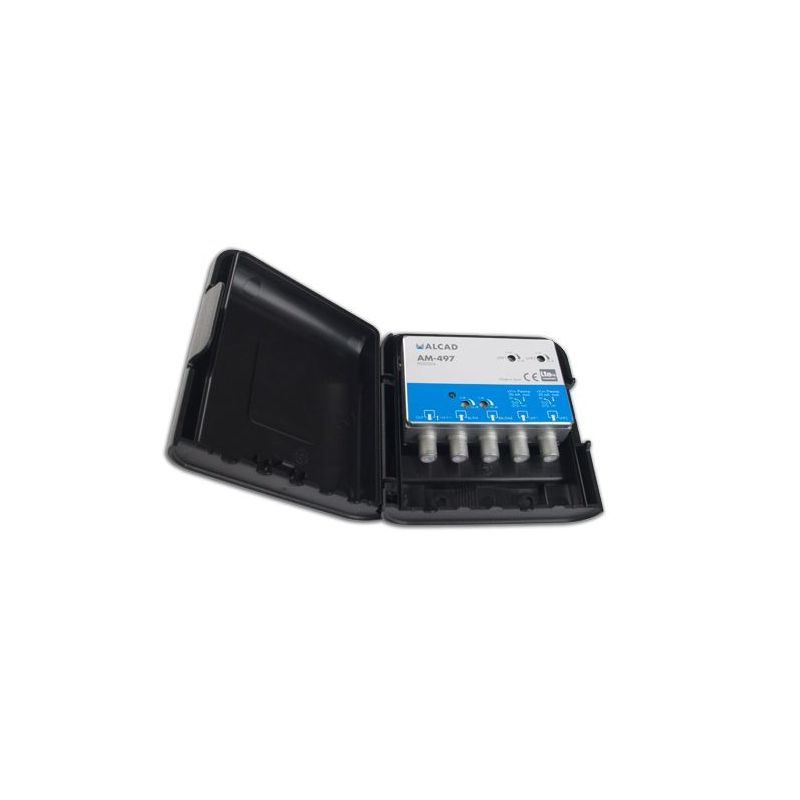

Alcad AM-497 - Serie 903: Amp uhf-uhf-biii/dab-fm 32 db lte700 24v.

Broadband amplifiers for masts, compatible with LTE700 and LTE800 mobile telephone signals with amplification band in UHF 470-694 MHz. They have four inputs to amplify and combine the signals from the antennas. They are fed through the coaxial cable from a power supply unit installed inside the building. They incorporate a switchable DC path, allowing power to be supplied to a preamplifier.

Applications

• Individual digital and analogue terrestrial TV installations which are affected by the transmission of LTE700 and LTE800 mobile phone signals and which require high gain.
• They amplify and mix the signals from several antennas.
• The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.

Characteristics

• Shielded zamak chassis, covered by a weather-resistant plastic casing.
• Easy to open and close, the chassis can be tilted to facilitate manipulation. It can be installed either on a mast, by means of a polyamide clamp, or on a wall. Resistant to sun and water (IP53). Greater insulation between inputs and outputs. F-type connectors for screwing or crimping.

Accessories

• 9030086 AL-100 +24 power supply unit.
• 9120039 CM-004 Male F connector for Ø6.6 mm coaxial.
• 9080023 MC-302 Male F connector for RG-6 coaxial, Ø7.0 mm.
• 9080030 MC-304 Male compression F connector for RG-6 coaxial Ø7.0 mm.
