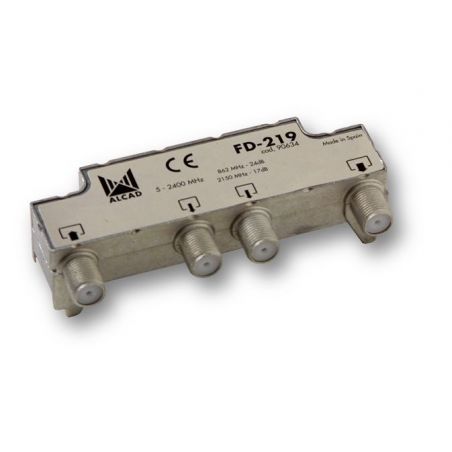

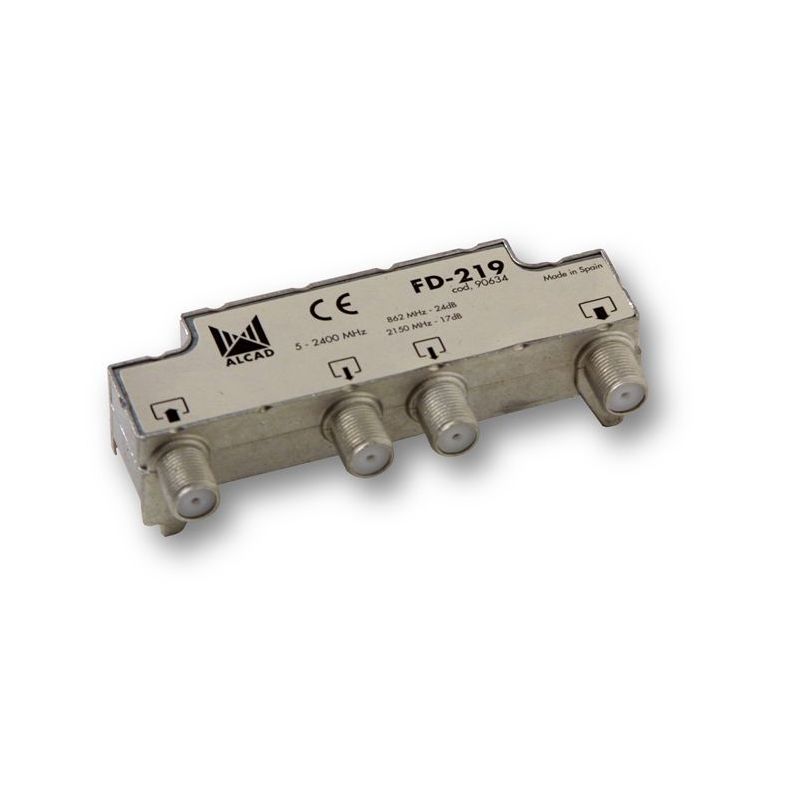

Alcad FD-219 - Serie 906: Tap-off if 2 out 18db equalized.

Equalised tap-offs for terrestrial and satellite TV with two tap outputs which cover the 5 to 2,400 MHz frequencies. They distribute part of the input signal to their tap outputs and the main part of the signal continues to the output. The equalisation of the tap outputs compensates the losses of the coaxial cable. Available in different tap-off attenuation values.

Applications

• SMATV installations with a tree-shaped distribution.
• The tree-shaped distribution reduces the number of distribution elements, and reduces the metres of coaxial cable to be installed, even though the headend to outlet distances remain constant.
• For installation in buildings with many floors due to the low through loss of the tap-offs.

Characteristics

• Voltage blockage in the tap-offs.
• Shielded zamak chassis and metal plate.
• Connectors on the lower part to facilitate the connections.
• Reduced dimensions.
• Fits in a 100 x100 mm box.

Technical specifications
