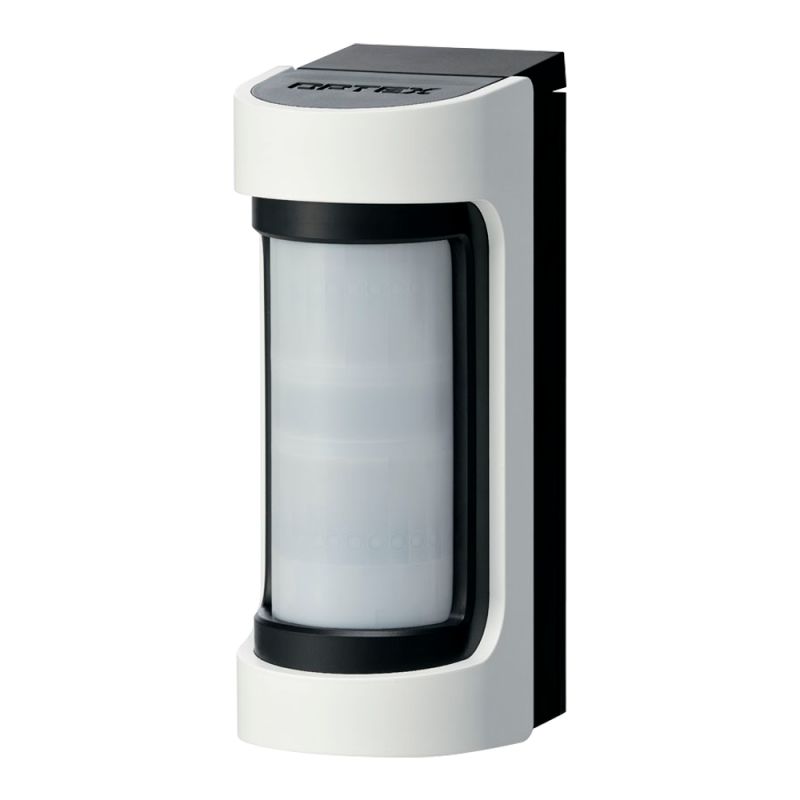

Optex VXS-RAM - Optex Low Consumption PIR Detector, Compatible with…
Optex Low Consumption PIR Detector - Compatible with transmitter via radio - Double PIR / Detection 12 m - Antimasking / Pet immunity - Battery power 3~9 VDC - Outdoor use
€150.45
€231.46
Save 35%
Tax included
Reference
VXS-RAM
Brand
Optex
Optex VXS-RAM - Optex Low Consumption PIR Detector, Compatible with…
€150.45
€231.46
Save 35%
- Optex
- Outdoor detector with low consumption
- Double PIR with antimasking
- Detection: Range 12 m / 90º
- Motion detection indicator
- Tamper-resistant opening
- Powered by batteries 3~9 VDC
- Compatible with transmitter via radio
- Outdoor use
- Degree of protection IP55
Features
- Optex Low Consumption PIR Detector
- Compatible with transmitter via radio
- Double PIR / Detection 12 m
- Antimasking / Pet immunity
- Battery power 3~9 VDC
- Outdoor use
Specs
| Brand | Optex |
| Series | VX SHIELD |
| Technology | Double volumetric PIR |
| PIR lens | 16 zones |
| Detection range | 12 m / 90º / Installation 1.2 m |
| Pet immunity | Available |
| Masking | Available |
| Sensitivity | Adjustable. 3 levels (high, medium, low) |
| Tamper-resistant opening | Available |
| LEDs indication | Alarm |
| DIP switch configuration | Walk test mode led, Battery saving mode, Alarm and tamper type (NC/NO), LEDs and Antimasking |
| Wired outputs | Alarm and Fault (tamper and antimasking) |
| Power | 3 V to 9 V DC |
| Consumption | Minimal consumption (Rest: 10 uA / Maximum: 4 mA) |
| Temp. operation | -20 ºC ~ 60 ºC |
| Degree of protection | IP55 |
| Dimensions | 199.3 (H) x 81.6 (W) x 109.3 (D) mm |
| Weight | 500 g |
Package content
- Optex Outdoor PIR Detector
- Instructions Manual
- Mounting material
Data sheet
- Weight
- 500 g
500 g - Power
- 3 V to 9 V DC
- Grado de protección
- IP55
- Technology
- Double volumetric PIR
- Detection range
- 12 m / 90º / Installation 1.2 m
- Pet immunity
- Available
- Masking
- Available
- Sensitivity
- Adjustable. 3 levels (high, medium, low)
- LEDs indication
- Alarm
- Temp. operation
- -20 ºC ~ 60 ºC
- Degree of protection
- IP55
- Dimensions
- 199.3 (Al) x 81.6 (Lg) x 109.3 (Fd) mm
199.3 (H) x 81.6 (W) x 109.3 (D) mm - PIR lens
- 16 zones
- Power supply
- 3 V to 9 V DC
- Tamper-resistant opening
- Available
- Consumption
- Minimal consumption (Rest: 10 uA / Maximum: 4 mA)
- Wired outputs
- Alarm and Fault (tamper and antimasking)
Alarme e falha (tamper e antimasking) - Series
- VX SHIELD
- Degré de protection
- IP55
- Temp. fonctionnement
- -20 ºC ~ 60 ºC
- Inmunidad a mascotas
- Disponible
- DIP switch configuration
- Walk test mode led, Battery saving mode, Alarm and tamper type (NC/NO), LEDs and Antimasking
- Champs de détection
- 12 m / 90º / Instalação 1.2 m
- Sensibilité
- Ajustável. 3 níveis (alto, médio, baixo)
- Indication LEDs
- Alarme
- Imunidade a animais de esimação
- Disponível
- Configuração do interruptor DIP
- Modo de teste (walk test), Modo de economia de bateria, Tipo de alarme e tamper (NC/NO), LEDs e Antimasking
Optex Low Consumption PIR Detector - Compatible with transmitter via radio - Double PIR / Detection 12 m - Antimasking / Pet immunity - Battery power 3~9 VDC - Outdoor use
