-35%

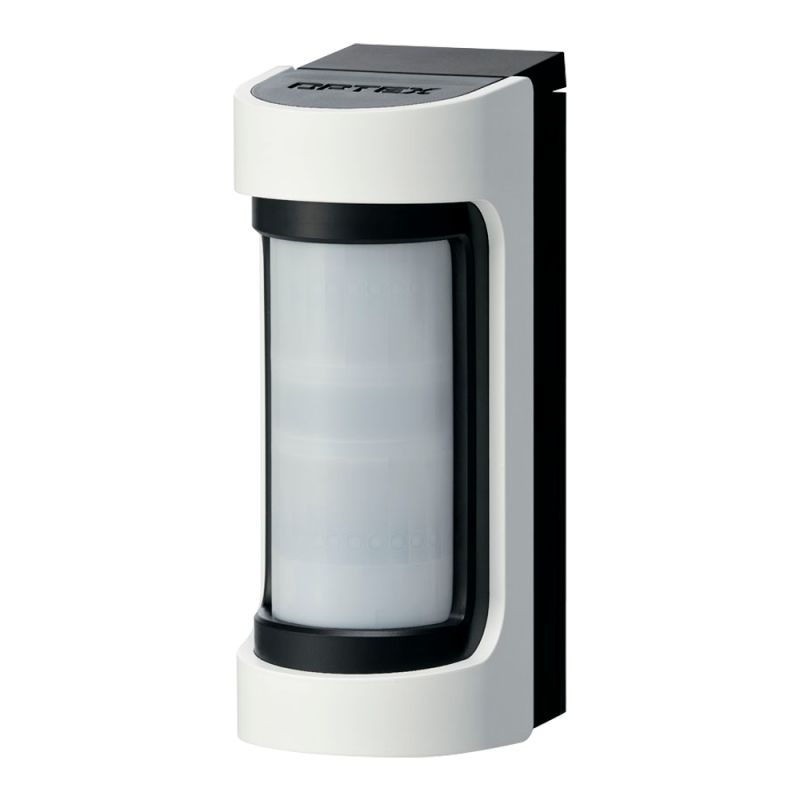

Optex VXS-RDAM-X5 - Optex Low Consumption PIR Detector, Compatible with…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

Optex Low Consumption PIR Detector - Compatible with transmitter via radio - Double PIR and microwave / Detection 12 m - Antimasking / Pet immunity - Battery power 3~9 VDC - Outdoor use

€162.99 €250.75 Save 35%

Tax included

Reference VXS-RDAM-X5

Brand Optex

Description
Product Details

Optex
Outdoor detector with low consumption
Double technology: Microwave and double PIR with antimasking
Detection: Range 12 m / 90º
Motion detection indicator
Tamper-resistant opening
Powered by batteries 3~9 VDC
Compatible with transmitter via radio
Outdoor use
Degree of protection IP55

Features

Optex Low Consumption PIR Detector
Compatible with transmitter via radio
Double PIR and microwave / Detection 12 m
Antimasking / Pet immunity
Battery power 3~9 VDC
Outdoor use

Specs

Brand	Optex
Series	VX SHIELD
Technology	Double technology: Microwaves (10.525 GHz) and double volumetric PIR
PIR lens	16 zones
Detection range	12 m / 90º / Installation 1.2 m
Pet immunity	Available
Masking	Available
Sensitivity	Adjustable. 3 levels (high, medium, low)
Tamper-resistant opening	Available
LEDs indication	Alarm
DIP switch configuration	Walk test mode led, Battery saving mode, Alarm and tamper type (NC/NO), LEDs, Antimasking and Microwave
Wired outputs	Alarm and Fault (tamper and antimasking)
Power	3 V to 9 V DC
Consumption	Minimal consumption (Rest: 18 uA / Maximum: 8 mA)
Temp. operation	-20 ºC ~ 45 ºC
Degree of protection	IP55
Dimensions	199.3 (H) x 81.6 (W) x 109.3 (D) mm
Weight	550 g

Package content

Optex Outdoor PIR Detector
Instructions Manual
Mounting material

Data sheet

Weight: 550 g
550 g
Power: 3 V to 9 V DC
Grado de protección: IP55
Technology: Double technology: Microwaves (10.525 GHz) and double volumetric PIR
Dupla tecnologia: microondas (10.525 GHz) e dupla PIR volumétrico
Detection range: 12 m / 90º / Installation 1.2 m
Pet immunity: Available
Masking: Available
Sensitivity: Adjustable. 3 levels (high, medium, low)
LEDs indication: Alarm
Temp. operation: -20 ºC ~ 45 ºC
Degree of protection: IP55
Dimensions: 199.3 (Al) x 81.6 (Lg) x 109.3 (Fd) mm
199.3 (H) x 81.6 (W) x 109.3 (D) mm
PIR lens: 16 zones
Power supply: 3 V to 9 V DC
Tamper-resistant opening: Available
Consumption: Minimal consumption (Rest: 18 uA / Maximum: 8 mA)
Wired outputs: Alarm and Fault (tamper and antimasking)
Alarme e falha (tamper e antimasking)
Series: VX SHIELD
Degré de protection: IP55
Temp. fonctionnement: -20 ºC ~ 45 ºC
Inmunidad a mascotas: Disponible
DIP switch configuration: Walk test mode led, Battery saving mode, Alarm and tamper type (NC/NO), LEDs, Antimasking and Microwave
Champs de détection: 12 m / 90º / Instalação 1.2 m
Sensibilité: Ajustável. 3 níveis (alto, médio, baixo)
Indication LEDs: Alarme
Imunidade a animais de esimação: Disponível
Configuração do interruptor DIP: Modo de teste (walk test), Modo de economia de bateria, Tipo de alarme e tamper (NC/NO), LEDs, Antimasking e Microondas
