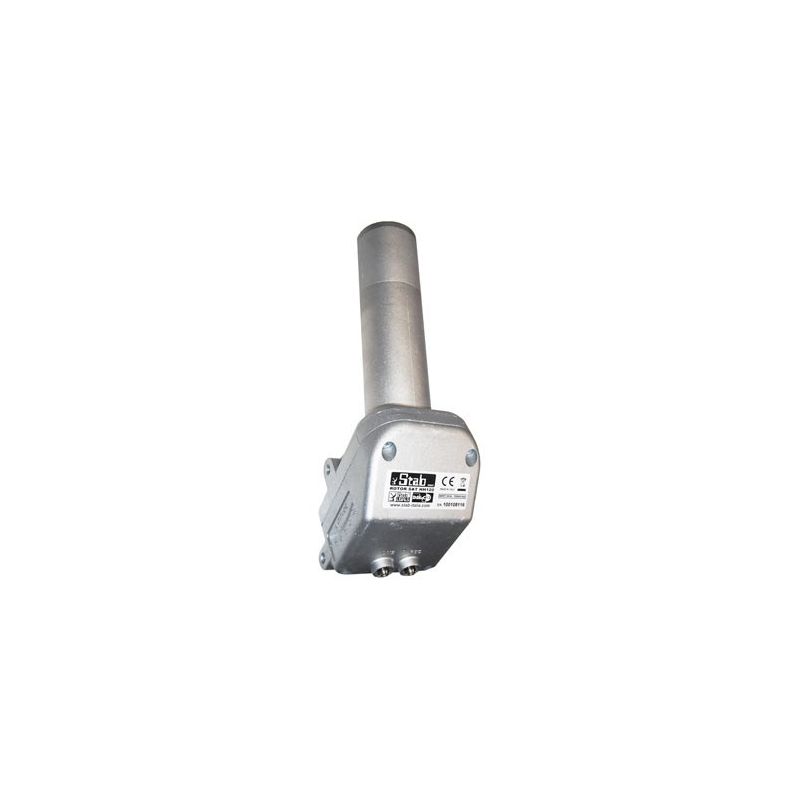

DISEqC Stab HH120 engine number one on the market up to 120 cm

The Stab HH120 is the best and most robust market compatible with all receivers works in DiSEqC 1.2 or USALS.

€116.99
Tax included
Reference stab-F208010
Brand Stab
Quantity
Out-of-Stock

Free shipping

The Stab HH120 is the best and most robust on the market compatible with all receivers compatible with DiSEqC 1.2 or USALS. Supports antennas up to 120 cm in diameter and 17 kg in weight. Its robust design and construction guarantee a very high duration with the passage of time.

They allow up to 49 satellite positions (more than 25 already preprogrammed). Unlike other engines, the installation is different from other engines on the market, since it has an arm that has to be looking up instead of the ground.

Features

  • Maximum antenna size: 120 cm
  • Maximum admissible weight: 17 kg
  • Length of the motor tube: 18.0 cm
  • Elevation angle: 55º
  • Power supply: 13/18 Vcc
  • Consumption in standby mode: 30 mA
  • Operating consumption: 190 mA
  • Maximum consumption: 350 mA
  • Programmable positions: 49
  • Preprogrammable positions: 26
  • Connectors: F
  • Gears: Metallic
  • Weight: 3.2 Kg

Specifications

Communication Protocol DiSEqC1.2
Antenna Maximum Diameter 120 cm
Maximum Antenna Weight 17 kg
Support Pole Diameter 50 ÷ 83 mm
Lunghezza Perno Mobile 180 mm
Diametro Perno Mobile 54 mm
Rotation Angle ± 62°
Rotation Speed 0.7°/s (18 V); 0.4°/s (13 V)
Work Voltage 13 / 18 Vdc
Stand-by Consumption 30 mA
Work Absorption 190 mA
Max Consumption 350 mA
Operating Temperature -40°C ÷ +80°C
Max Relative Humidity 100%
Settable Positions (DiSEqC1.2) 49 satellites
Preset Positions (DiSEqC1.2) 28 satellites
Settable Positions (USALS) without limits
Connectors F-type
Link coaxial cable
Mechanical Limits ± 70°
Settable Electronic Limits 5° ÷ 65°
