SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 7SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 13404 AND id_lang = 1 Promax IR-282 Thermographic camera –20 ºC to 250 ºC. 3.2 ”240x320 TFT LCD. Resolution 120x120. With visual camera
search

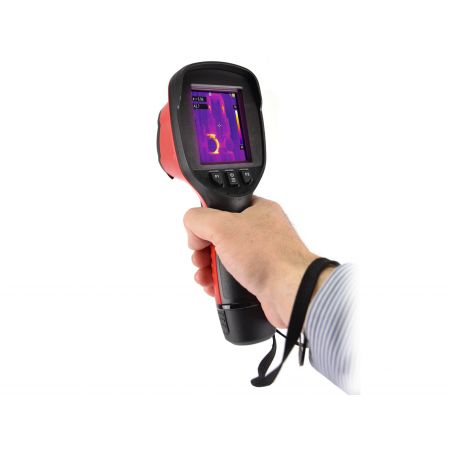

Promax IR-282 Thermographic camera –20 ºC to 250 ºC. 3.2 ”240x320 TFT LCD. Resolution 120x120. With visual camera

The IR-282 is a thermal camera (Thermal Imaging Camera) that can be used in a host of applications such as industrial maintenance, energy efficiency, non-destructive controls, safety and fire fighting, petrochemical, research, etc. It has a built-in LCD screen where images captured in real time are displayed.

€1,633.50
Tax included
Reference promax-ir-282
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax IR-282 Thermographic camera –20 ºC to 250 ºC. 3.2 ”240x320 TFT LCD. Resolution 120x120. With visual camera

€1,633.50

The IR-282 is a thermal camera (Thermal Imaging Camera) that can be used in a host of applications such as industrial maintenance, energy efficiency, non-destructive controls, safety and fire fighting, petrochemical, research, etc.

It has a built-in LCD screen where images captured in real time are displayed. It allows you to take images in the infrared spectrum based on 4 color palettes, in the visible spectrum and in the enhanced image mode that combines both display modes (infrared + visible) to make it easier to locate objects whose thermal emissivity is similar at room temperature.

It includes software to visualize and analyze thermographic images, as well as to generate and print reports.

Specifications

INFRARED CAMERA 120x120
VISIBLE SPECTRUM CAMERA 57600 pixels
TEMPERATURE MARGINS De -20 a 300ºC aprox.
SPACE RESOLUTION 5 mrad
RESOLUTION (NETD) 0,06 ºC @ 30 ºC
COLOR PALLETS 4 selectable
IMAGE FREQUENCY 50 Hz
CURSORS
  • Central point
  • Maximum
  • Minimum
APPLICATIONS
    • Industrial maintenance
    • Electronic circuits
    • Location of living beings
    • Construction and Maintenance
    • Chemistry and derivatives
    • Air conditioning and heating circuits
    • Fire prevention in the power grid
    • Plumbing: Location of leaks in water pipes

    Downloads

    PRODUCT SHEET

    User manual
