search

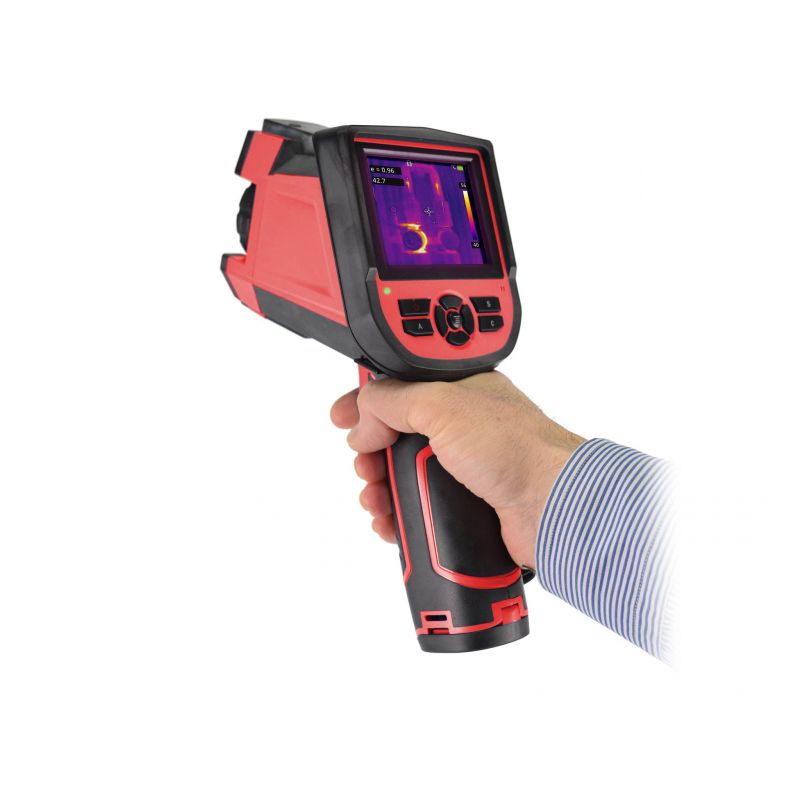

Promax IR-283 Thermographic camera –20 ºC to 350 ºC. 3.5 ”TFT LCD 640x480. Resolution 160x120. With visual camera

The IR-283 is a thermal camera (Thermal Imaging Camera) that can be used in a host of applications such as industrial maintenance, energy efficiency, non-destructive controls, safety and fire fighting, petrochemical, research, etc. It has a built-in LCD screen where images captured in real time are displayed.

€3,176.25
Tax included
Reference promax-ir-283
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax IR-283 Thermographic camera –20 ºC to 350 ºC. 3.5 ”TFT LCD 640x480. Resolution 160x120. With visual camera

€3,176.25

The IR-282 is a thermal camera (Thermal Imaging Camera) that can be used in a host of applications such as industrial maintenance, energy efficiency, non-destructive controls, safety and fire fighting, petrochemical, research, etc.

It has a built-in LCD screen where images captured in real time are displayed. It allows you to take images in the infrared spectrum based on 11 color palettes, and in the visible spectrum with a resolution of 1.3 Mpxel.

It includes software to visualize and analyze thermographic images, as well as to generate and print reports.

Specifications

INFRARED CAMERA 160x120
VISIBLE SPECTRUM CAMERA 1.3 Mpxel
TEMPERATURE MARGINS De -20 a 300ºC aprox.
SPACE RESOLUTION 2.72 mrad
RESOLUTION (NETD) 0,06 ºC @ 30 ºC
COLOR PALLETS 11 selectable
IMAGE FREQUENCY 50 Hz / 60 Hz
CURSORS
  • Up to 4 positionable points
  • 3 movable areas (max, min, average)
  • Temperature line
  • Isothermal analysis
  • Thermal difference
  • Overtemperature alarm (acoustic, bright)
APPLICATIONS
    • Industrial maintenance
    • Electronic circuits
    • Location of living beings
    • Construction and Maintenance
    • Chemistry and derivatives
    • Air conditioning and heating circuits
    • Fire prevention in the power grid
    • Plumbing: Location of leaks in water pipes
    PC SOFTWARE Included

    Downloads

    PRODUCT SHEET
