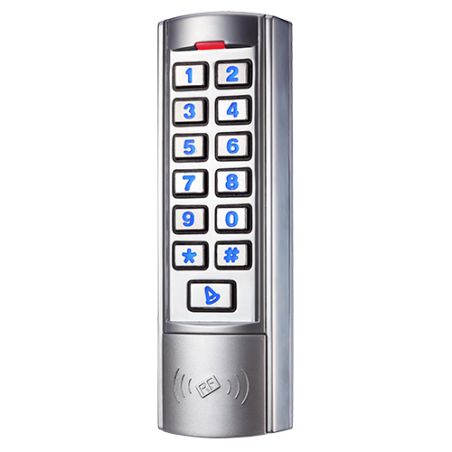

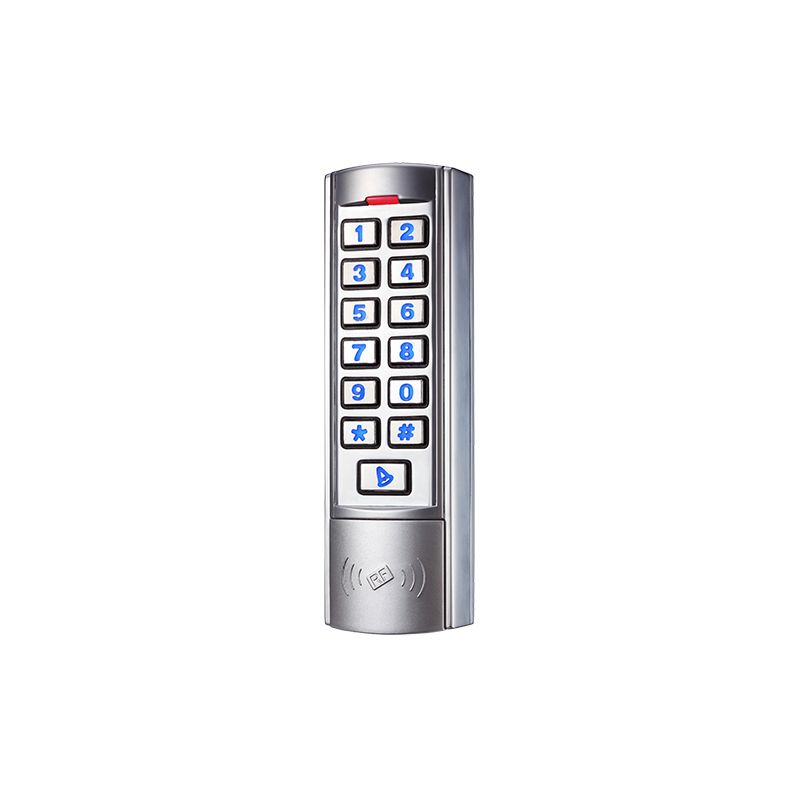

AC106 - Standalone access control, Access with keyboard and…
search
  • AC106 - Standalone access control, Access with keyboard and…

AC106 - Standalone access control, Access with keypad and…

Standalone access control - Access with keypad and RFID - Relay output, for alarm and doorbell - Wiegand 26 | Input for Reader - Compact design for frames - Suitable for exterior IP68
€58.50 €90.00 Save 35%
Tax included
Reference AC106
Brand Branded
Quantity
Available in 24/48h

Free shipping
AC106 - Standalone access control, Access with keyboard and…

AC106 - Standalone access control, Access with keypad and…

€58.50 €90.00 Save 35%
  • Standalone access reader
  • Access via RF EM card and/or passcode
  • Metallic keypad and casing
  • LED Indicator
  • Wiegand 26
  • Integrated controller (Push button, bell and relay)
  • Timed control of opening, closing and alarm
  • Suitable for exterior IP68
  • Compact design for frames

Features

  • Standalone access control
  • Access with keypad and RFID
  • Relay output, for alarm and doorbell
  • Wiegand 26 | Input for Reader
  • Compact design for frames
  • Suitable for exterior IP68

Specs

Capacity Up to 2.000 PIN and/or RFID cards
Identification modes Card (C), Pin (P)
Proximity card EM RFID (125KHz)
Reading distance 3 ~ 6 cm
Outputs Output relay NO / NC and alarm, Wiegand 26
Inputs Push button, Reader (WG26)
Opening time Adjustable 0 ~ 99 sec.
Alarm time Adjustable 0 ~ 3 min.
Power DC 12V 60mA max.
Consumption in idle mode ≤30mA
Protection Weatherproof IP68
Temp. operation -45º C ~ +60º C
Dimensions 25 (D) x 43 (W) x 150 (H) mm
Weight 250 g

Package content

  • Access Control Keypad
  • 2 plugs and 2 screws for mounting
  • Torx key and diode
  • User instructions
  • Mounting template

Data sheet

Weight
250 g
250 g
Power
DC 12V 60mA max.
Temp. operation
-45º C ~ +60º C
Protection
Weatherproof IP68
Dimensions
25 (D) x 43 (W) x 150 (H) mm
Capacity
Up to 2.000 PIN and/or RFID cards
Identification modes
Card (C), Pin (P)
Proximity card
EM RFID (125KHz)
Inputs
Push button, Reader (WG26)
Outputs
Output relay NO / NC and alarm, Wiegand 26
Power supply
DC 12V 60mA max.
Consumption in idle mode
≤30mA
Reading distance
3 ~ 6 cm
Opening time
Adjustable 0 ~ 99 sec.
Alarm time
Adjustable 0 ~ 3 min.
