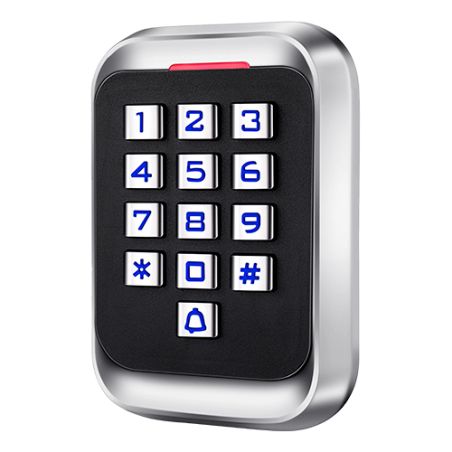

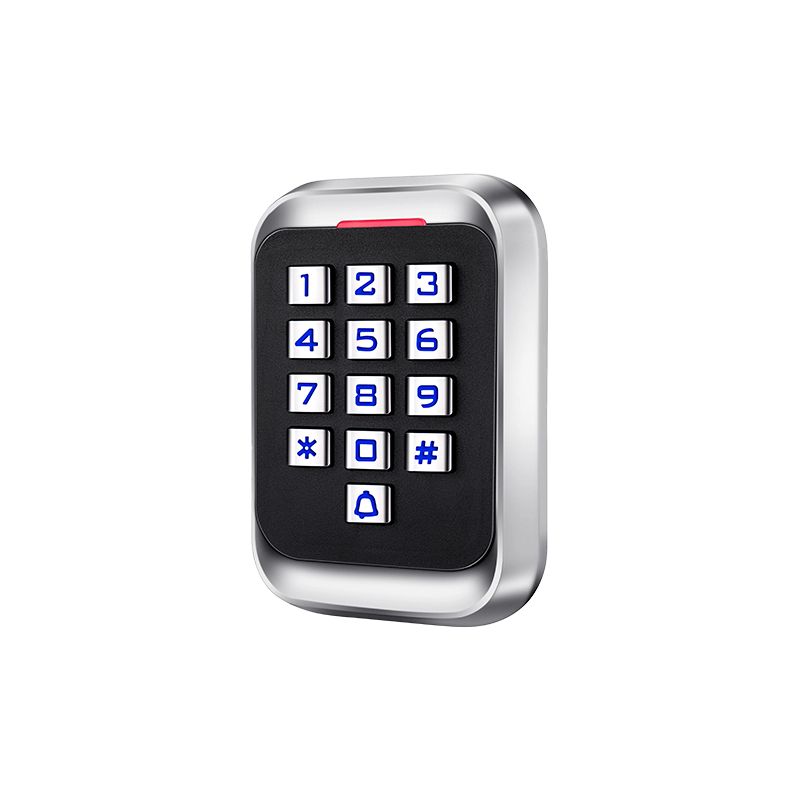

AC108 - Standalone access control, Keypad & RFID entry,…

AC108 - Standalone access control, Keypad & RFID entry,…

Standalone access control - Keypad & RFID entry - Relay output and doorbell - Wiegand 26 - Time control - Suitable for exterior IP65

€42.90 €66.00 Save 35%

Tax included

Reference AC108

Brand Branded

AC108 - Standalone access control, Keypad & RFID entry,…

AC108 - Standalone access control, Keypad & RFID entry,…

€42.90 €66.00 Save 35%

Description
Product Details

Standalone access reader
Access via RF EM card and/or passcode
Metallic keypad and casing
LED Indicator
Wiegand 26
Integrated controller (Push button, bell and relay)
Opening and closing time control
Can power readers and electric strikes
Suitable for exterior IP65

Features

Standalone access control
Keypad & RFID entry
Relay output and doorbell
Wiegand 26
Time control
Suitable for exterior IP65

Specs

Capacity	Up to 2.000 PIN and/or RFID cards
Identification modes	Card (T), Pin (P)
Proximity card	EM RFID (125 kHz)
Reading distance	2 ~ 4 cm
Outputs	Relay output NO/NC, door bell and Wiegand 26
Inputs	Push-button
Opening time	Adjustable 0 ~ 99 sec.
Alarm time	Adjustable 0 ~ 3 min.
Power	DC 12V 60 mA max.
Consumption in idle mode	≤ 30mA
Protection	Weatherproof IP65
Temp. operation	-45º C ~ +60º C
Dimensions	26 (D) x 81 (W) x 118 (H) mm
Weight	325 g

Package content

Access Control Keypad
2 plugs and 2 screws for mounting
Torx key and diode
User instructions
Mounting template

Data sheet

Weight: 325 g
325 g
Power: DC 12V 60mA max.
Temp. operation: -45º C ~ +60º C
Protection: Weatherproof IP65
Dimensions: 26 (D) x 81 (W) x 118 (H) mm
Capacity: Up to 2.000 PIN and/or RFID cards
Identification modes: Card (C), Pin (P)
Proximity card: EM RFID (125KHz)
Inputs: Push-button
Outputs: Output relay NO / NC and alarm, Wiegand 26
Power supply: DC 12V 60mA max.
Consumption in idle mode: ≤30mA
Reading distance: 2 ~ 4 cm
Opening time: Adjustable 0 ~ 99 sec.
Alarm time: Adjustable 0 ~ 3 min.
