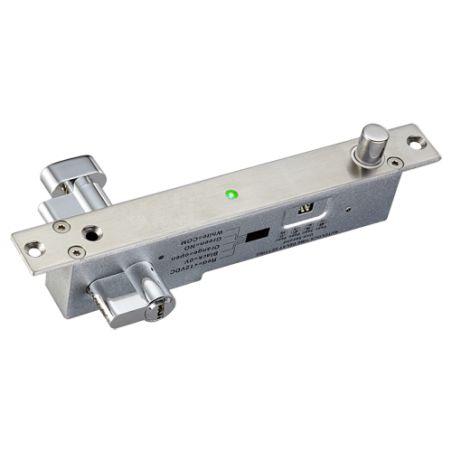

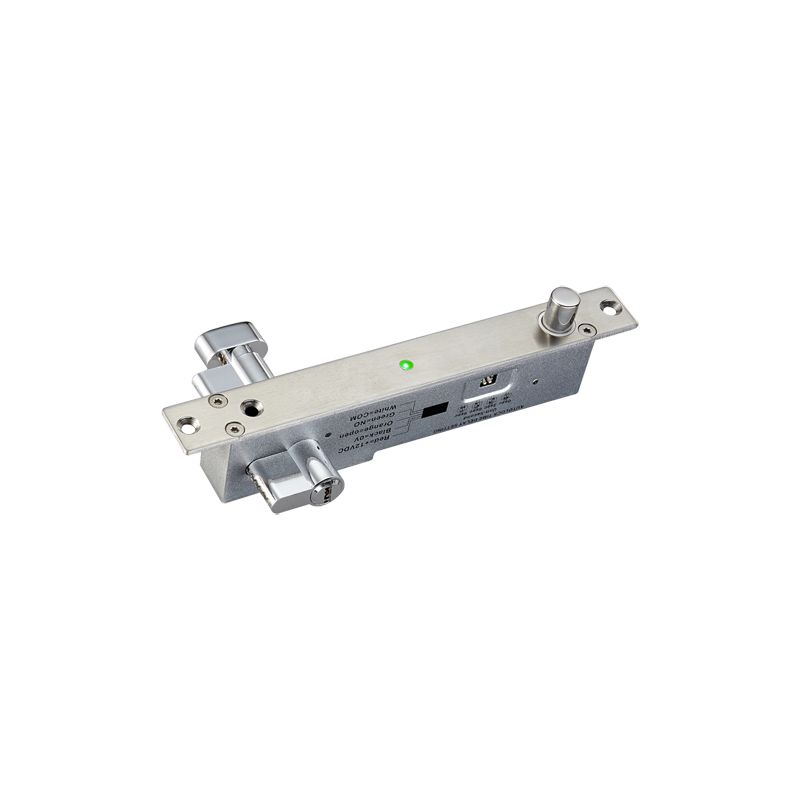

YB-500C-LED - Electromechanical safety lock, Fail Secure (NO)…
Electromechanical safety lock - Fail Secure (NO) aperture mode - Retention force 1000 Kg - Door status sensor - Programmable self-closing - Euro Cylinder included (with keys)
€84.50
€130.00
Save 35%
Tax included
Reference
YB-500C-LED
Brand
Branded
YB-500C-LED - Electromechanical safety lock, Fail Secure (NO)…
€84.50
€130.00
Save 35%
- Electro-mechanical Piston Security Lock (Bolt)
- Euro cylinder with 4 key(s) included
- NO Normally Open (Fail Secure)
- Timer with Delay of 0/3/6/9 seconds
- Open door signal
- Applicable in Fire protection systems
- It has status LED
- Installation in Wooden, Metal, Glass and Fire doors
- 12 VDC
Features
- Electromechanical safety lock
- Fail Secure (NO) aperture mode
- Retention force 1000 Kg
- Door status sensor
- Programmable self-closing
- Euro Cylinder included (with keys)
Specs
| Mounting | Built-in |
| Opening mode | Fail Secure (NO) |
| Locking delay time | 0, 3, 6 y 9 seconds |
| Retention force | 1000 Kg |
| Cylinder | Euro 37 x 37mm with eccentric cam |
| Power | DC 12 V / 960/180 mA start/standby |
| Open sensor | Integrated LED indicator, exit indicator. |
| Entrance profile | Narrow 23mm |
| Plate dimensions | 42 (D) x 210 (H) x 25 (W) mm |
| Dimensions | 90 (D) x 3 (H) x 25 (W) mm |
| Weight | 1000 g |
| Temperature | -40º C ~ +60º C |
Package content
- Lock
- Euro cylinder with 4 keys
- Electromagnetic strike with sensor
- Installation material (Frames, screws, template)
- Installation manual
Data sheet
- Weight
- 1000 g
1000 g - Power
- DC 12 V / 960/180 mA start/standby
- Dimensions
- 90 (D) x 3 (H) x 25 (W) mm
- Power supply
- DC 12 V / 960/180 mA start/standby
- Mounting
- Built-in
- Opening mode
- Fail Secure (NO)
- Locking delay time
- 0, 3, 6 y 9 seconds
- Open sensor
- Integrated LED indicator, exit indicator.
- Plate dimensions
- 42 (D) x 210 (H) x 25 (W) mm
- Temperature
- -40º C ~ +60º C
- Retention force
- 1000 Kg
- Cylinder
- Euro 37 x 37mm with eccentric cam
- Entrance profile
- Narrow 23mm
Electromechanical safety lock - Fail Secure (NO) aperture mode - Retention force 1000 Kg - Door status sensor - Programmable self-closing - Euro Cylinder included (with keys)
