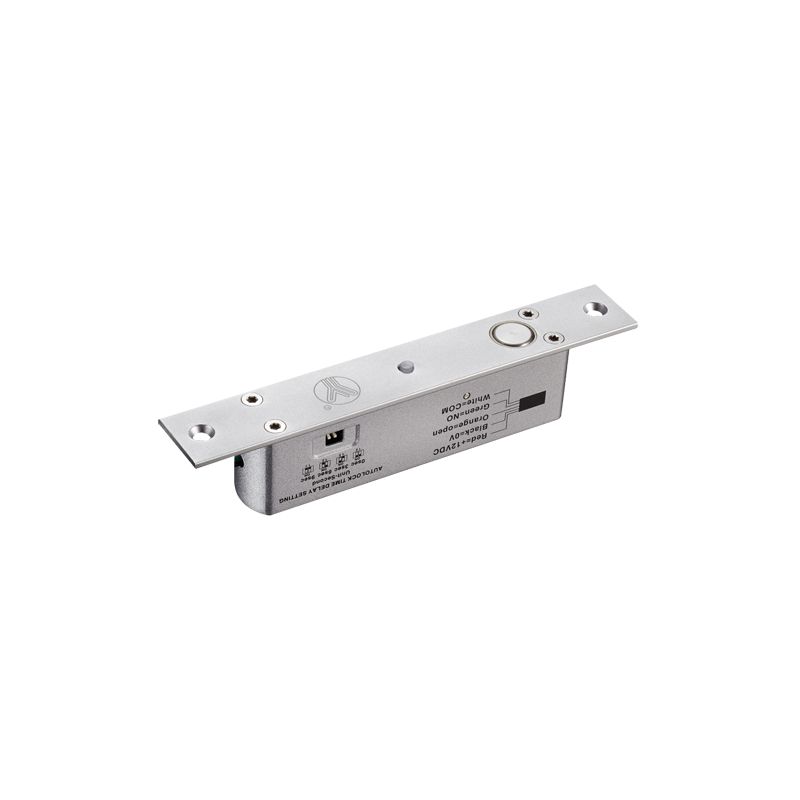

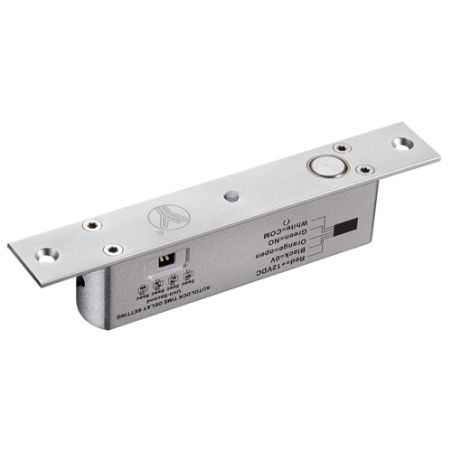

YB-200-LED - Electromechanical safety lock, Fail Safe (NC) opening…
Electromechanical safety lock - Fail Safe (NC) opening mode - Retention force 1000 Kg - Door status sensor - Programmable self-closing - Made of aluminum
€31.20
€48.00
Save 35%
Tax included
Reference
YB-200-LED
Brand
Branded
YB-200-LED - Electromechanical safety lock, Fail Safe (NC) opening…
€31.20
€48.00
Save 35%
- Electro-mechanical Piston Security Lock (Bolt)
- NC Normally Closed (Fail Safe)
- Timer with Delay of 0/3/6/9 seconds
- Open door signal
- Applicable in Fire protection systems
- Installation in Wooden, Metal, Glass and Fire doors
- 12 VDC
Features
- Electromechanical safety lock
- Fail Safe (NC) opening mode
- Retention force 1000 Kg
- Door status sensor
- Programmable self-closing
- Made of aluminum
Specs
| Mounting | Built-in |
| Opening mode | Fail Safe (NC) |
| Locking delay time | 0, 3, 6 y 9 seconds |
| Retention force | 1000 Kg |
| Output signal | Opening mode, NO/ COM |
| Power | DC 12 V / 850/150 mA start/standby |
| Plate dimensions | 30 (D) x 190 (H) x 39 (W) mm |
| Dimensions of the socket | 25 (D) x 95 (H) x 3 (W) mm |
| Weight | 600 g |
| Temperature | -40º C ~ +30º C |
Package content
- Door closers
- Installation material
Data sheet
- Weight
- 600 g
600 g - Power
- DC 12 V / 850/150 mA start/standby
- Power supply
- DC 12 V / 850/150 mA start/standby
- Mounting
- Built-in
- Opening mode
- Fail Safe (NC)
- Locking delay time
- 0, 3, 6 y 9 seconds
- Plate dimensions
- 30 (D) x 190 (H) x 39 (W) mm
- Temperature
- -40º C ~ +30º C
- Retention force
- 1000 Kg
- Output signal
- Opening mode, NO/ COM
- Piston dimensions
- 25 (D) x 95 (H) x 3 (W) mm
- Dimensions of the socket
- 25 (D) x 95 (H) x 3 (W) mm
Electromechanical safety lock - Fail Safe (NC) opening mode - Retention force 1000 Kg - Door status sensor - Programmable self-closing - Made of aluminum
