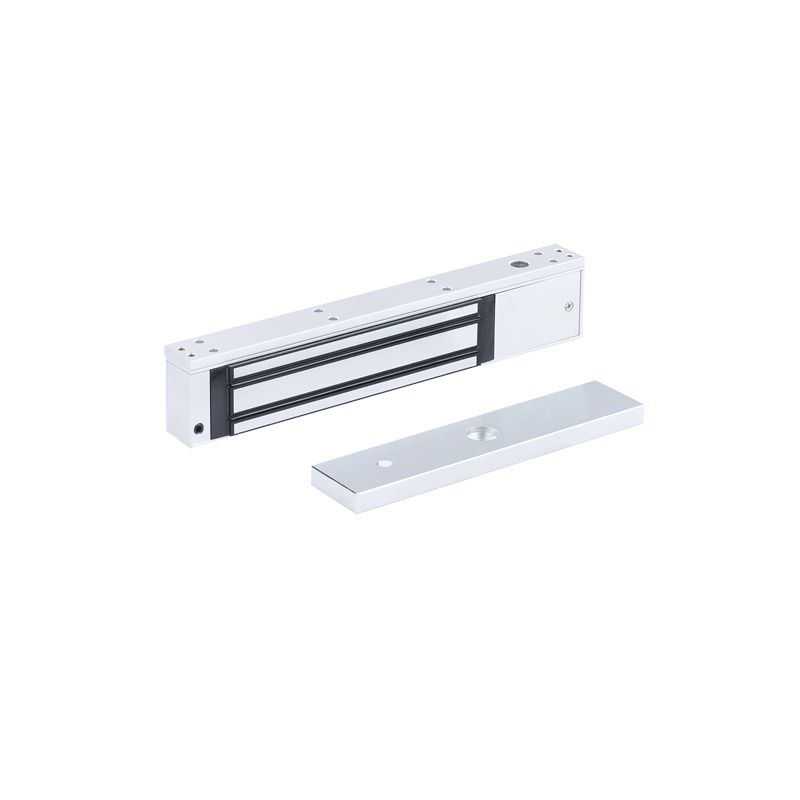

YF-280AST-LED - Electromagnetic door lock, For single doors, Fail Safe…
search
  • YF-280AST-LED - Electromagnetic door lock, For single doors, Fail Safe…

YF-280AST-LED - Electromagnetic door lock, For single doors, Fail Safe…

Electromagnetic door lock - For single doors - Fail Safe mode - Retention force 280 Kg - Door status sensor - Different compatible profiles
€32.50 €50.00 Save 35%
Tax included
Reference YF-280AST-LED
Brand Branded
Quantity
Out-of-Stock

Free shipping

You might also like

  • Electromagnetic lock for single doors
  • Incorporates monitoring signal
  • Output of contact NO/NC/COM
  • It has status LED
  • Linear load resistance 280 Kg

Features

  • Electromagnetic door lock
  • For single doors
  • Fail Safe mode
  • Retention force 280 Kg
  • Door status sensor
  • Different compatible profiles

Specs

Door typeSingle, 1 door
Time Delay FunctionAvailable
Opening modeFail Safe
Retention force280 Kg
PowerDC 12 V/ 450 mA max. or DC 24V / 250mA max.
SignallingDoor status sensor NO/NC
Armature size38 (H) x 180 (W) mm
Dimensions26 (D) x 48.5 (H) x 250 (W) mm
Weight2100 g
Temperature-10º C ~ +55º C

Package content

  • Electromagnet
  • Magnetisation plate
  • Installation material
  • User instructions

Data sheet

Weight
1800 g
1800 g
2100 g
Power
DC 12 V/ 450 mA max. or DC 24V / 250mA max.
Dimensions
26 (D) x 48.5 (H) x 250 (W) mm
Power supply
DC 12 V/ 450 mA max. or DC 24V / 250mA max.
Opening mode
Fail Safe
Temperature
-10º C ~ +55º C
Retention force
280 Kg
Door type
Single, 1 door
Signalling
Door status sensor NO/NC
Armature size
38 (H) x 180 (W) mm
Peso
550 g
550 g
Conductor exterior
CCA trenzado 112/0.12 mm
CCA trenzado 112/0.12 mm
Time Delay Function
Available
