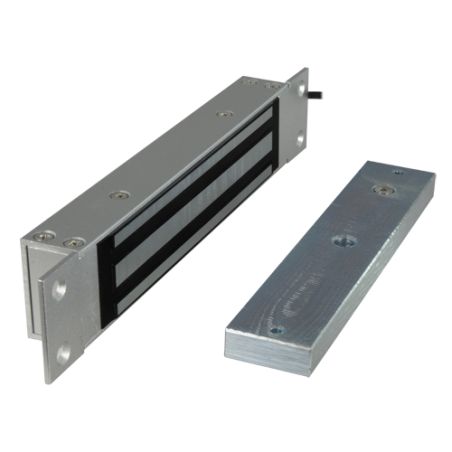

YF-280CA - Electromagnetic door lock, For single doors, Fail Safe…
Electromagnetic door lock - For single doors - Fail Safe mode - Retention force 280 Kg - Retention Area 35 x 155mm - Flush mounted
€28.60
€44.00
Save 35%
Tax included
Reference
YF-280CA
Brand
Branded
YF-280CA - Electromagnetic door lock, For single doors, Fail Safe…
€28.60
€44.00
Save 35%
- Electromagnetic lock for single doors
- Linear load resistance 280 Kg
- Flush mount Maglock
Features
- Electromagnetic door lock
- For single doors
- Fail Safe mode
- Retention force 280 Kg
- Retention Area 35 x 155mm
- Flush mounted
Specs
| Door type | Single, 1 door |
| Opening mode | Fail Safe |
| Retention force | 280 Kg |
| Power | DC 12 V / 500 mA, DC 24 V / 250 mA |
| Armature size | 35 (H) x 155 (W) mm |
| Dimensions | 25 (D) x 42 (H) x 232 (W) mm |
| Weight | 2,1 Kg |
| Temperature | -10º C ~ +55º C |
Package content
- Electromagnet
- Magnetisation plate
- Installation material
- User instructions
Data sheet
- Weight
- 2,1 Kg
2,1 Kg - Power
- DC 12 V / 500 mA, DC 24 V / 250 mA
- Dimensions
- 25 (D) x 42 (H) x 232 (W) mm
- Power supply
- DC 12 V / 500 mA, DC 24 V / 250 mA
- Opening mode
- Fail Safe
- Temperature
- -10º C ~ +55º C
- Retention force
- 280 Kg
- Door type
- Single, 1 door
- Armature size
- 35 (H) x 155 (W) mm
Electromagnetic door lock - For single doors - Fail Safe mode - Retention force 280 Kg - Retention Area 35 x 155mm - Flush mounted
