SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 105SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7746 AND id_lang = 1 YF-180AS - Electromagnetic door lock, For single doors, Fail Safe…
  • -35%

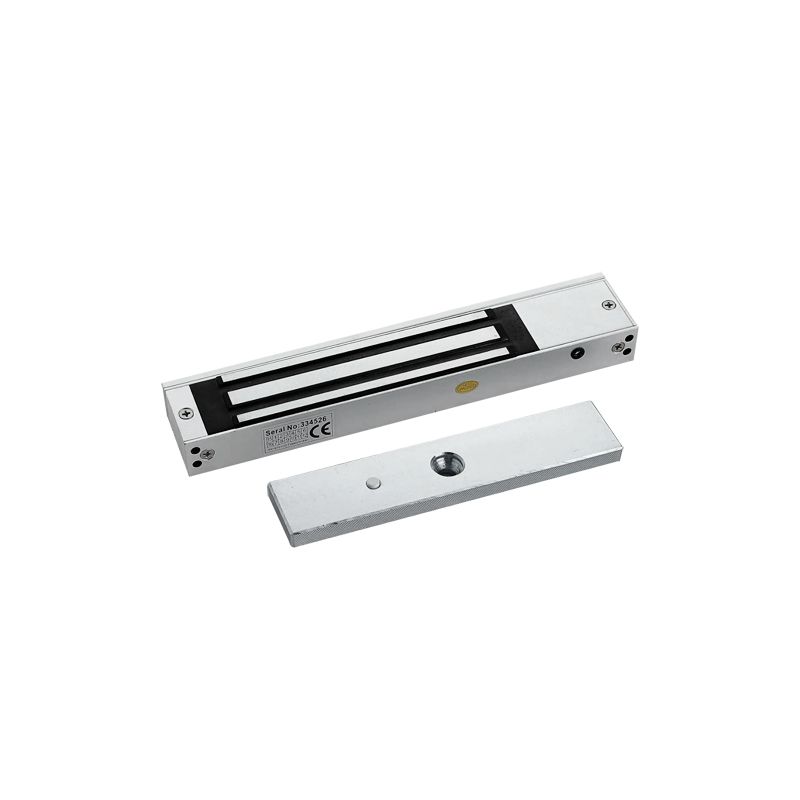

YF-180AS - Electromagnetic door lock, For single doors, Fail Safe…
search
  • YF-180AS - Electromagnetic door lock, For single doors, Fail Safe…

YF-180AS - Electromagnetic door lock, For single doors, Fail Safe…

Electromagnetic door lock - For single doors - Fail Safe mode - Retention force 180 Kg - Power supply DC 12 V - Different compatible profiles
€26.00 €40.00 Save 35%
Tax included
Reference YF-180AS
Brand Branded
Quantity
Out-of-Stock

Free shipping

You might also like

Surface mounted electromagnetic lock for single doors.

Maglock locking device that consists of an electromagnet and an armature which are held together by magnetic attraction. The metal panel (armature) should be fitted to the door. Fail Safe mode, unlocks when power is removed and as such is perfectly adequate for emergency exits. Completely silent operation as the maglock has no moving parts and as such is very low maintenance/long life. For surface mounted installation on glass, wood, metal and fireproof doors.

Maximum holding force 180Kg. Can work with either 12V DC or 24V DC, selectable via an internal jumper. Can be controlled by and access control system or with a simple push button.

Manufactured in galvanised steel with anodised aluminium housing and double insulation for improved retention force. Recommended for interior use.

Features

  • Electromagnetic door lock
  • For single doors
  • Fail Safe mode
  • Retention force 180 Kg
  • Power supply DC 12 V
  • Different compatible profiles

Specs

Door type Single, 1 door
Opening mode Fail Safe
Retention force 180 Kg
Power DC 12 V / 360 mA, DC 24 / 180 mA
Armature size 33 (H) x 130 (W) mm
Dimensions 22.5 (d) x 41(Al) x 181 (w) mm
Weight 1200 g
Temperature -10º C ~ +55º C

Package content

  • - Electromagnet
  • - Magnet plate
  • - Installation accessories
  • - Installation Template
  • - Instructions

Data sheet

Weight
1200 g
1200 g
Power
DC 12 V / 360 mA, DC 24 / 180 mA
Dimensions
22.5 (D) x 47.6 (H) x 170 (W) mm
22.5 (d) x 41(Al) x 181 (w) mm
Power supply
DC 12 V / 260 mA
DC 12 V / 360 mA, DC 24 / 180 mA
Opening mode
Fail Safe
Temperature
-10º C ~ +55º C
Retention force
180 Kg
Door type
Single, 1 door
Armature size
33 (H) x 130 (W) mm
