YB-500A-LED - Electromechanical safety lock, Fail Secure (NO)…

YB-500A-LED - Electromechanical safety lock, Fail Safe (NC) opening…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

Electromechanical safety lock - Fail Safe (NC) opening mode - Retention force 1000 Kg - Door status sensor - Programmable self-closing - Selectable opening time

€42.90 €66.00 Save 35%

Tax included

Reference YB-500A-LED

Brand Branded

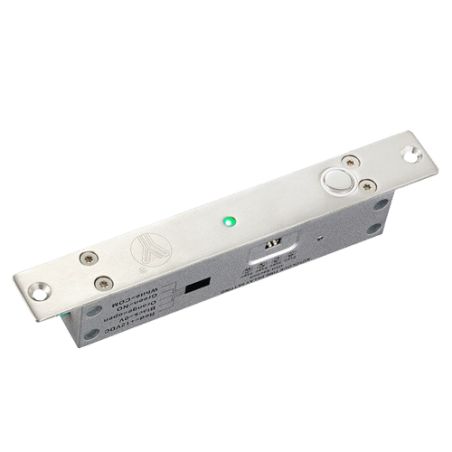

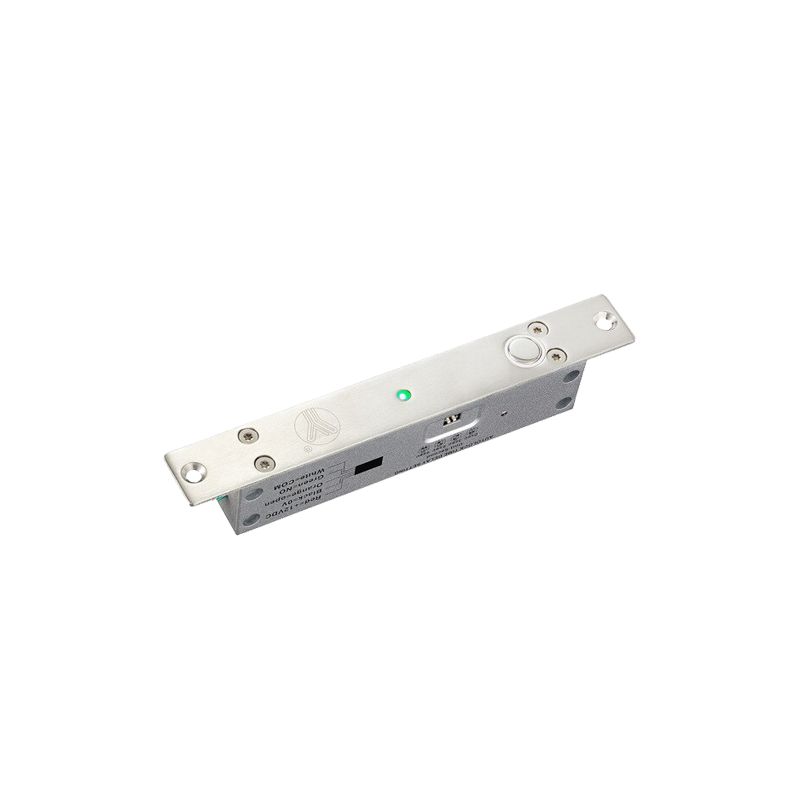

YB-500A-LED - Electromechanical safety lock, Fail Safe (NC) opening…

€42.90 €66.00 Save 35%

Description
Product Details

Electro-mechanical Piston Security Lock (Bolt)
NC Normally Closed (Fail Safe)
Timer with Delay of 0/3/6/9 seconds
Open door signal
Applicable in Fire protection systems
Installation in Wooden, Metal, Glass and Fire doors
12 VDC
Made in aluminum

Features

Electromechanical safety lock
Fail Safe (NC) opening mode
Retention force 1000 Kg
Door status sensor
Programmable self-closing
Selectable opening time

Specs

Mounting	Built-in
Opening mode	Fail Safe (NC)
Locking delay time	0, 3, 6 y 9 seconds
Retention force	1000 Kg
Power	DC 12 V / 960/180 mA start/standby
Open sensor	Integrated LED indicator, exit indicator.
Entrance profile	Narrow 25mm
Plate dimensions	192 (H) x 25 (W) x 37 (D)mm
Dimensions	90 (H)x 25 (W) x 2 (H) mm
Weight	680 g
Temperature	-40º C ~ +60º C

Package content

Lock
Electromagnetic strike with sensor
Installation material (Frames, screws, template)
Installation manual

Data sheet

Weight: 680 g
680 g
Power: DC 12 V / 960/180 mA start/standby
Dimensions: 90 (D) x 2 (H) x 25 (W) mm
90 (H)x 25 (W) x 2 (H) mm
Power supply: DC 12 V / 960/180 mA start/standby
Mounting: Built-in
Opening mode: Fail Safe (NC)
Fail Secure (NC)
Fail Secure (NO)
Locking delay time: 0, 3, 6 y 9 seconds
Open sensor: Integrated LED indicator, exit indicator.
Plate dimensions: 37 (D) x 192 (H) x 25 (W) mm
192 (H) x 25 (W) x 37 (D)mm
Temperature: -40º C ~ +60º C
Retention force: 1000 Kg
Entrance profile: Narrow 25mm
