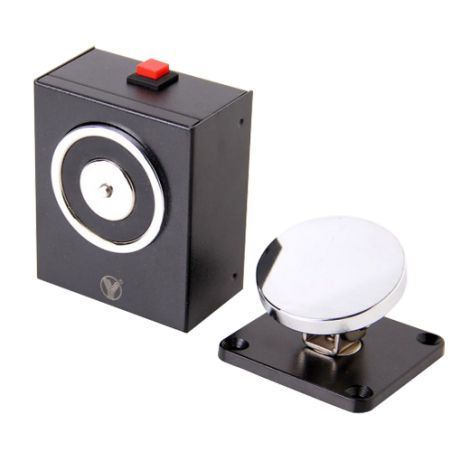

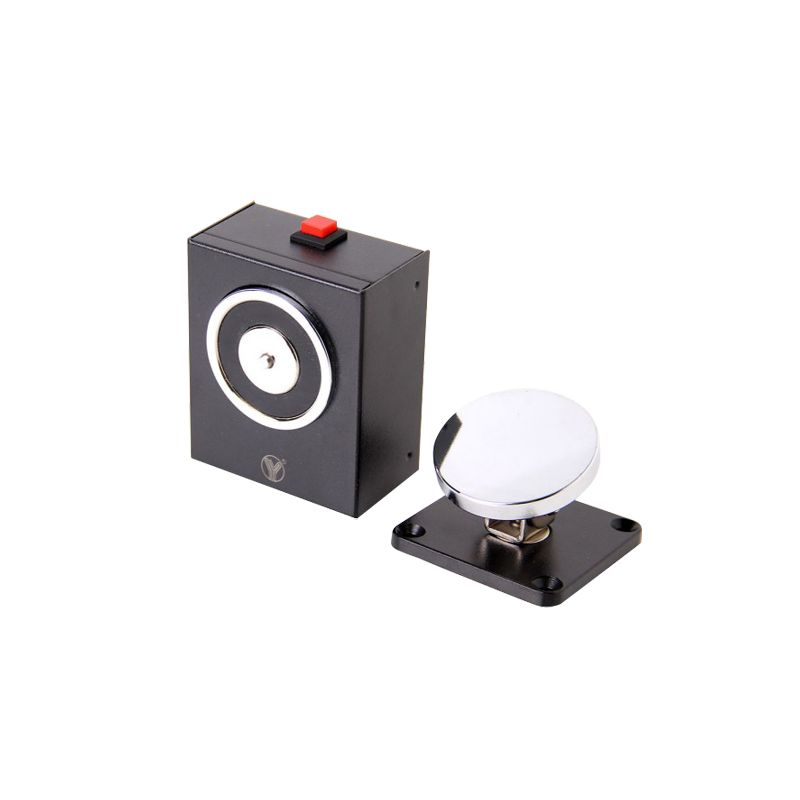

YD-604 - Electromagnetic holder, For single doors, Retention…
Electromagnetic holder - For single doors - Retention force 50 Kg - Manual door release button - Power supply 24V DC - Wall or bracket mounting
€24.70
€38.00
Save 35%
Tax included
Reference
YD-604
Brand
Branded
YD-604 - Electromagnetic holder, For single doors, Retention…
€24.70
€38.00
Save 35%
- Emergency door holder
- Holding force up to 50Kg
- Manual close button
- Suitable for single and double doors
- DC24V
Features
- Electromagnetic holder
- For single doors
- Retention force 50 Kg
- Manual door release button
- Power supply 24V DC
- Wall or bracket mounting
Specs
| Door type | Simple, 1 folding and fire doors |
| Closing mode | Relay signal or manual opening button |
| Retention force | 50 Kg |
| Power | DC 24 V/ 70 mA |
| Signalling | Door status sensor NO/NC |
| Dimensions of Magnetic Plate | 65 (H) x 65 (W) x 41 (D) mm (Retaining steel 54 mm) |
| Dimensions of Holder | 40 (D) x 85 (H) x 70 (W) mm |
| Weight | 400 g |
| Temperature | 0º C ~ +55º C |
Package content
- Holder
- Magnetisation plate
- Installation material
- User instructions
Data sheet
- Weight
- 400 g
400 g - Power
- DC 24 V/ 70 mA
- Power supply
- DC 24 V/ 70 mA
- Temperature
- 0º C ~ +55º C
- Retention force
- 50 Kg
- Door type
- Simple, 1 folding and fire doors
- Signalling
- Door status sensor NO/NC
- Closing mode
- Relay signal or manual opening button
- Dimensions of Magnetic Plate
- 65 (H) x 65 (W) x 41 (D) mm (Retaining steel 54 mm)
- Dimensions of Holder
- 40 (D) x 85 (H) x 70 (W) mm
Electromagnetic holder - For single doors - Retention force 50 Kg - Manual door release button - Power supply 24V DC - Wall or bracket mounting
