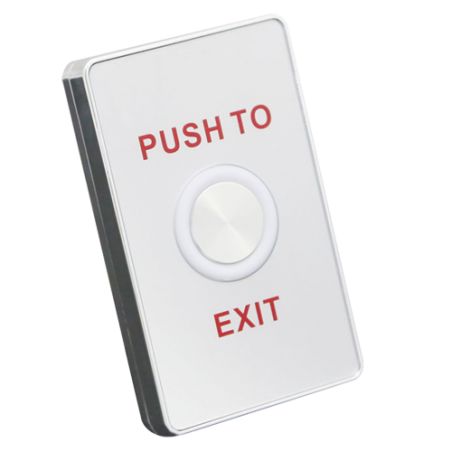

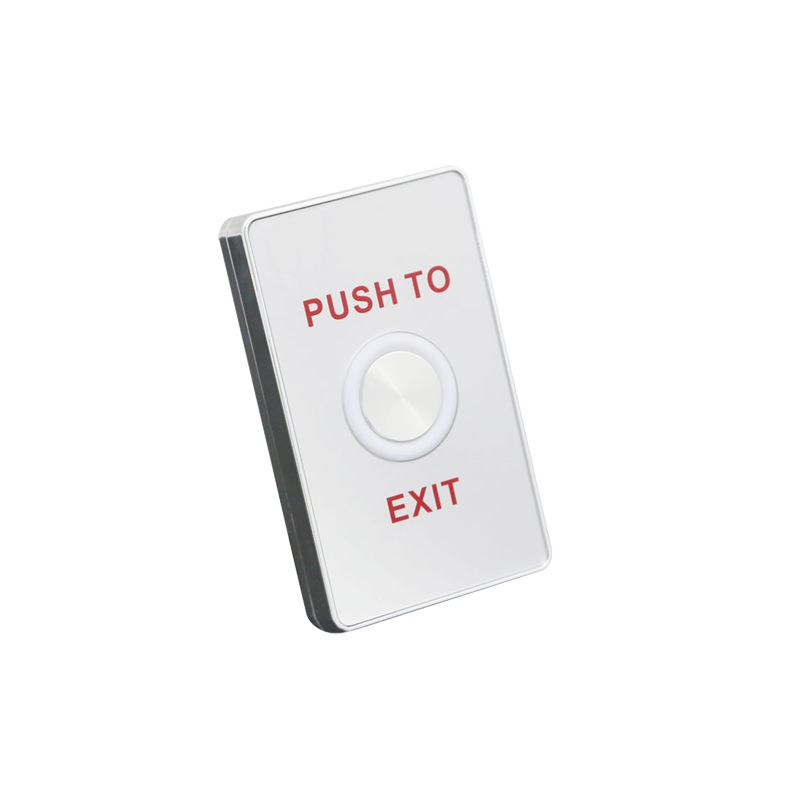

PBS-821A-LED - Door release button, Piezoelectric, Contacts NO / COM,…
Door release button - Piezoelectric - Contacts NO / COM - Surface mounting - LED Illumination | Plastic case - Size 114x70x16 mm
€24.05
€37.00
Save 35%
Tax included
Reference
PBS-821A-LED
Brand
Branded
PBS-821A-LED - Door release button, Piezoelectric, Contacts NO / COM,…
€24.05
€37.00
Save 35%
You might also like
- Piezoelectric exit button
- status LED
- Automatic blocking mode
- NO/COM
- DC12V / DC24V
- Size 114x70x16 mm
- Suitable for exterior IP65
- Surface mounting
Features
- Door release button
- Piezoelectric
- Contacts NO / COM
- Surface mounting
- LED Illumination | Plastic case
- Size 114x70x16 mm
Specs
| Power | 12-24VDC |
| Contact | 30VDC, 1A max |
| Exit contact | NO/COM |
| Protection | IP65 |
| Temp. operation | 10º C ~ +55º C |
| Dimensions | 16 (D) x 114 (H) x 70 (W) mm |
| Weight | 120 g |
Package content
- Exit button
- 2 plugs and 2 screws for mounting
- User instructions
Data sheet
- Weight
- 120 g
120g - Power
- 12-24VDC
- Temp. operation
- 10º C ~ +55º C
- Protection
- IP65
- Dimensions
- 16 (D) x 114 (H) x 70 (W) mm
- Power supply
- 12-24VDC
- Contact
- 30VDC, 1A max
- Exit contact
- NO/COM
Door release button - Piezoelectric - Contacts NO / COM - Surface mounting - LED Illumination | Plastic case - Size 114x70x16 mm
