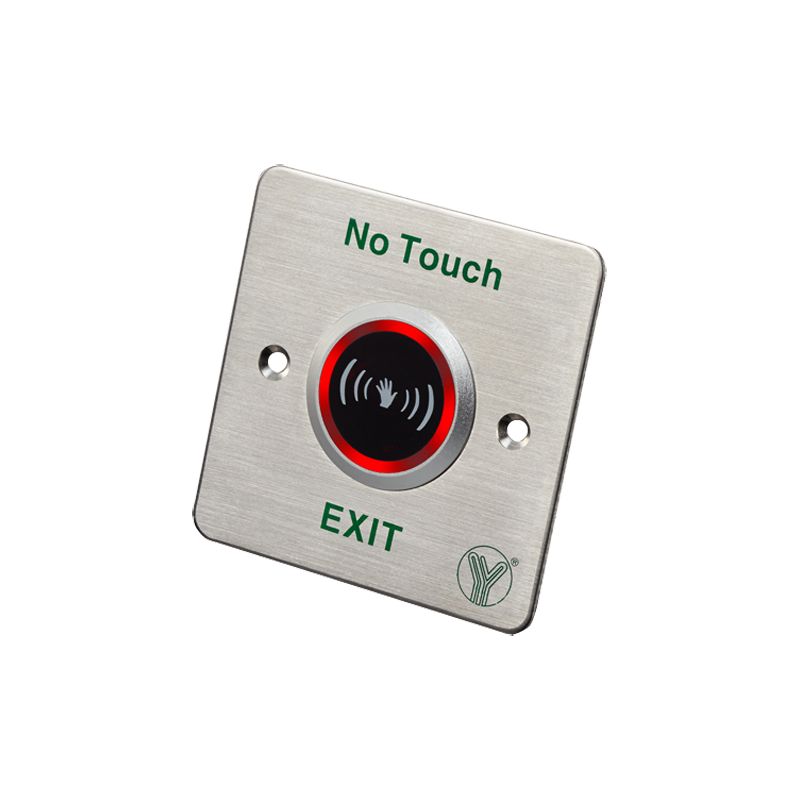

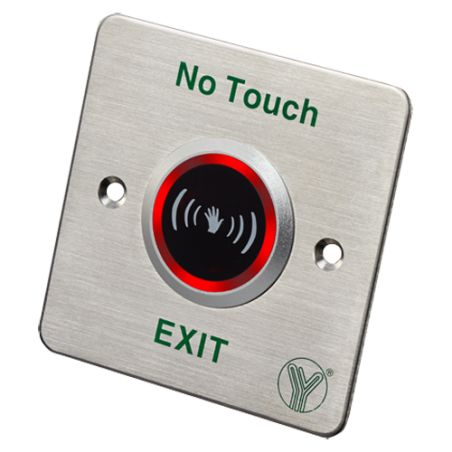

ISK-841C - Contactless exit button, Infrared sensor with LED…

Contactless exit button - Infrared sensor with LED indicator - Tested 1.000.000 uses - NO/NC/COM - Detection range 4>12 cm - Stainless steel construction
€17.73 €27.27 Save 35%
Tax included
Reference ISK-841C
Brand Branded
Quantity
Available in 24/48h

Free shipping
ISK-841C - Contactless exit button, Infrared sensor with LED…

ISK-841C - Contactless exit button, Infrared sensor with LED…

€17.73 €27.27 Save 35%

You might also like

  • Contactless exit button
  • No touch
  • Infrared sensor with LED indicator
  • Tested 1.000.000 uses
  • Detection range 4>12 cm
  • NO/NC/COM - DC12V
  • Size 86x86x25,7 mm
  • Stainless steel Finish

Features

  • Contactless exit button
  • Infrared sensor with LED indicator
  • Tested 1.000.000 uses
  • NO/NC/COM
  • Detection range 4>12 cm
  • Stainless steel construction

Specs

PowerDC 12 V
Contact1A @ DC 30V
Exit contactNO/NC/COM
Detection range4 ~ 12 cm
Led indicatorWhite (Off), Red (Stand By), Green (On)
Time delayConfigurable 1~25 seconds
MaterialStainless steel
Relative humidity0- 95%
Temp. operation-20º C ~ +55º C
Dimensions25,7 (D) x 86 (H) x 86 (W) mm
Weight200 g

Package content

  • Contactless Exit button
  • 2 plugs and 2 screws for mounting
  • User instructions

Data sheet

Weight
200 g
200 g
Power
DC 12 V
Detection range
4 ~ 12 cm
Temp. operation
-20º C ~ +55º C
Dimensions
25,7 (D) x 86 (H) x 86 (W) mm
Relative humidity
0- 95%
Power supply
DC 12 V
Material
Stainless steel
Contact
1A @ DC 30V
Exit contact
NO/NC/COM
Led indicator
White (Off), Red (Stand By), Green (On)
Time delay
Configurable 1~25 seconds
