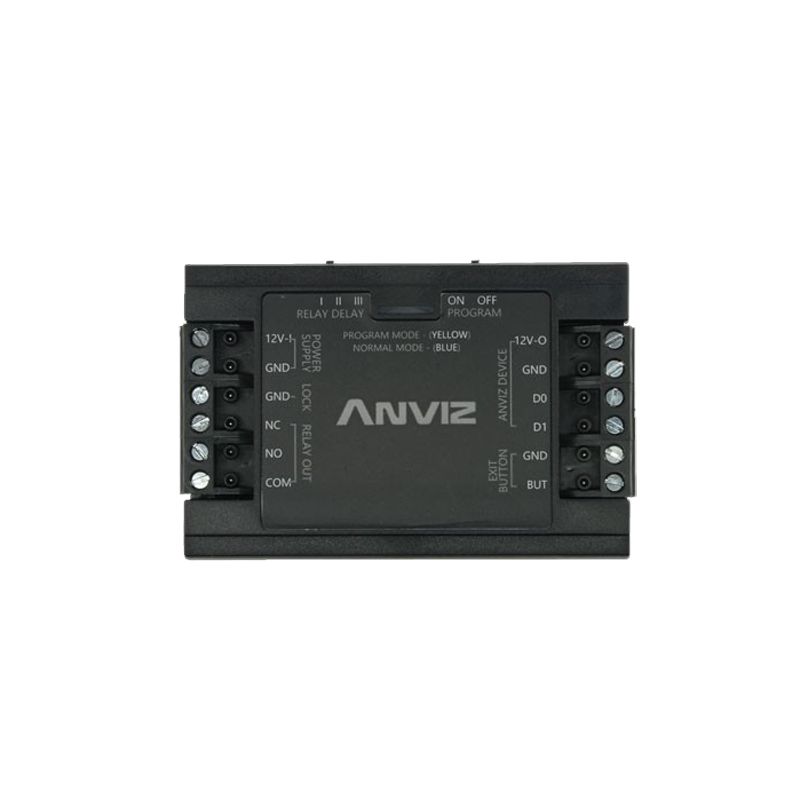

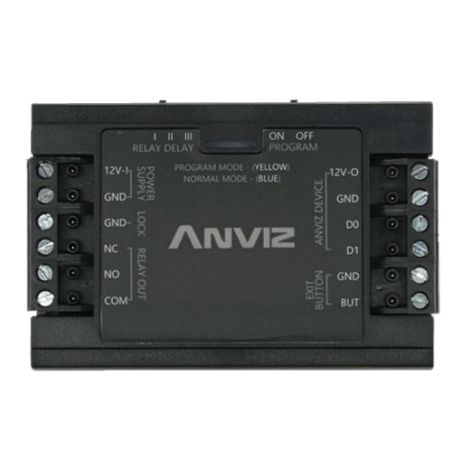

Anviz SC011 - ANVIZ independent controller, For standalone…
ANVIZ independent controller - For standalone installations - ANVIZ Wiegand & push button inputs - Relay NO/NC - Direct lock control - Power supply DC 12 V
€55.06
€84.70
Save 35%
Tax included
Reference
SC011
Brand
Anviz
Anviz SC011 - ANVIZ independent controller, For standalone…
€55.06
€84.70
Save 35%
You might also like
ANVIZ access controller.
Secure and reliable independent access controller which can receive data from an ANVIZ Wiegand reader for standalone use. Input for door sensor and push button to open, relay output NO/NC for control of Maglocks & Electric strikes.
Three switchable delay settings for the relay, switch selectable program mode and a status LED.
Overload, static discharge and short-circuit protection. The controller requires 12VDC and also powers the reader.
Features
- ANVIZ independent controller
- For standalone installations
- ANVIZ Wiegand & push button inputs
- Relay NO/NC
- Direct lock control
- Power supply DC 12 V
Specs
| Security | ANVIZ Wiegand |
| PC communication | Not available |
| Controller inputs | ANVIZ Wiegand, push-button |
| Controller outputs | Relay NO/NC |
| Power | DC 12 V / 120 mA |
| Dimensions | 55 (D) x 70 (W) x 25 (H) mm |
| Weight | 75 g |
Package content
- - Controller SC011
- - 2 plugs and 2 screws for mounting
Data sheet
- Weight
- 75 g
75 g - Power
- DC 12 V / 120 mA
- Dimensions
- 55 (D) x 70 (W) x 25 (H) mm
- PC communication
- Not available
- Power supply
- DC 12 V / 120 mA
- Security
- ANVIZ Wiegand
- Controller inputs
- ANVIZ Wiegand, push-button
- Controller outputs
- Relay NO/NC
ANVIZ independent controller - For standalone installations - ANVIZ Wiegand & push button inputs - Relay NO/NC - Direct lock control - Power supply DC 12 V
