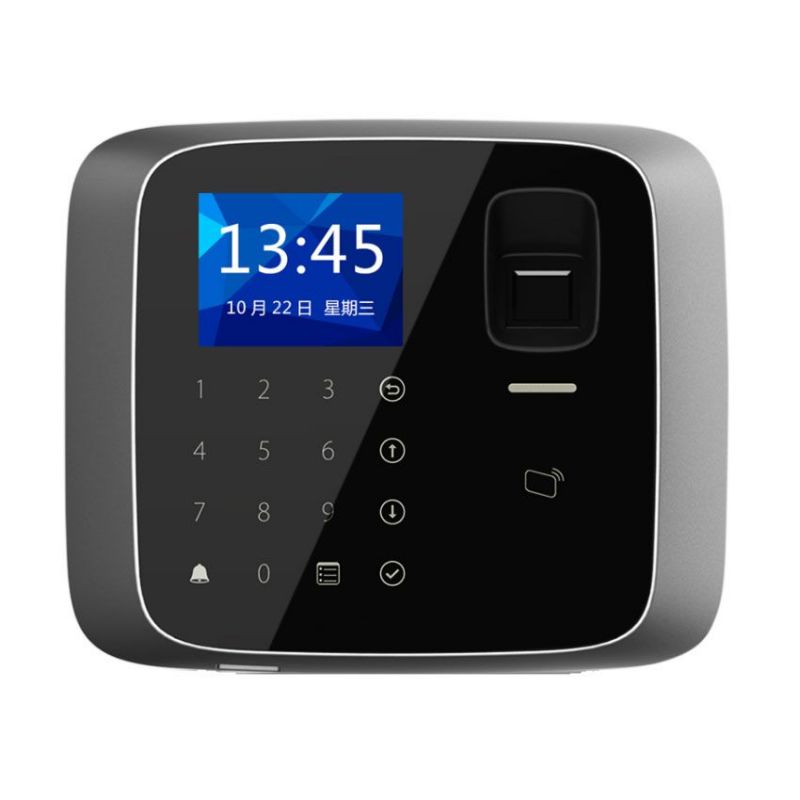

Dahua ASI1212A. Access control autonomous biometric terminal with MIFARE card reader. Touchpad. 2,4" TFT. 4.500 fingerprints, 30.000 cards, 150.000 events. Fingerprint, card, code or combination authentification. Voice massage. Door input sensor, exit button, alarm and 4 relay outputs (lock, buzzer and alarm). TCP/IP, RS485. MicroSD slot. IP55. 12V DC. Lector autonomo lcd huella+mf+teclado.

- Access control autonomous biometric terminal with MIFARE card reader

- LINUX O/S

- 32 Bit processor

- Memory: 16 MB

- Fingerprint response time ≤0,5s

- Fingerprint recognition time ≤1,5s

- FAR: ≤0,0004%

- FRR: ≤0,15%

- Card type: Mifare (13,56MHz)

- Card reading range: 3~8 cm

- Card reading response time <0,1s

- Fingerprint capacity: 4.500

- Card capacity: 30.000

- Event capacity: 150.000

- Touchpad, voice message

- 2,4" TFT screen (320x240)

- Access control interface: Electrical lock, door sensor, exit button, Alarm: 1 in / 2 out, buzzer

- Communication: TCP/IP (RJ45 100M), RS485

- Authentification: Card / Password / fingerprint / Combination

- Door time out alarm, Intrusion alarm, Duress alarm, Vandal-proof alarm

- Watchdog function

- Power supply: 9V ~ 15V DC, 200mA

- Working temperature: -5°c ~ +60°c

- IP55

- Dimensions: 158 x 191 x 32 mm

- Weight: 700 g

- DAHUA-955
