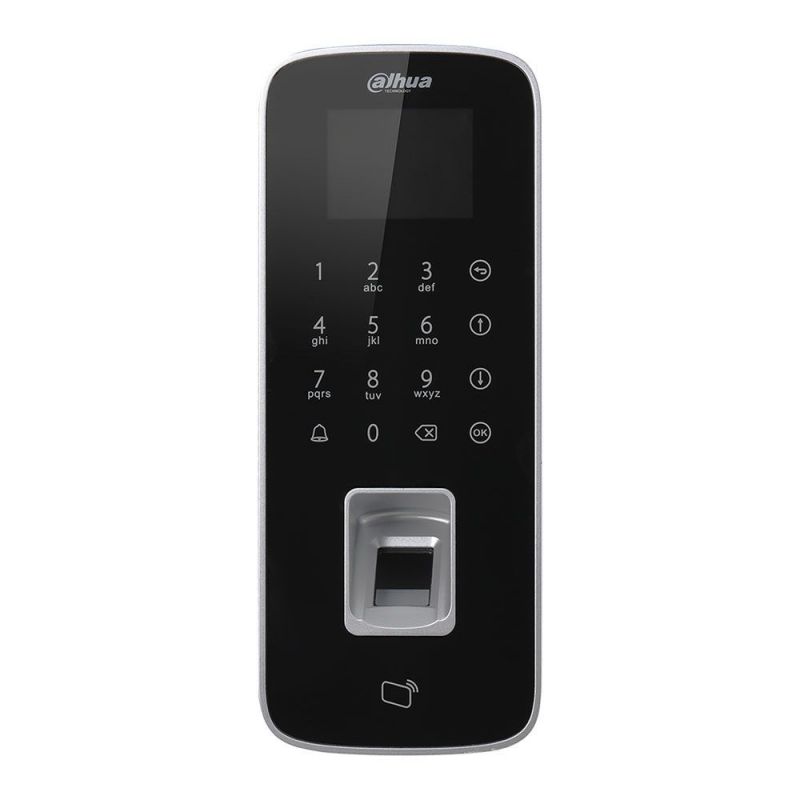

Dahua ASI1212D-D. Biometric reader + RFID EM access control reader with keyboard. Water-resistant autonomous system, suitable for outdoors. LCD keyboard and display. 3,000 fingerprints, 30,000 users / cards. 150,000 events Authentication by card, password, fingerprint and combination. TCP / IP PC interface, supports WAN. Wiegand or RS485 reader interface. Door sensor input, exit button and alarm input. Exit for lock, bell and alarm. IP55 12V DC Asi1212d-d.

Features

• Touch keyboard and LCD screen
• Supports up to 30,000 cards and registration of 150,000 events
• EM 125KHz card reading
• Supports access with card, password, fingerprint and combinations
• TCP / IP to PC, supports WAN communication
• Supports aggregation of P2P devices
• RS485 or Wiegand reader interface
• Door timeout alarm, intrusion alarm, duress alarm and tamper alarm
• Anti-passback, multi-card opening
• Supports 128 efficient schedules and holiday schedules

• Import / export configuration or log files to USB



Specifications

• Biometric reader + RFID EM access control reader with keyboard
• Water-resistant autonomous system, for outdoor use
• 32 bit processor
• 32MB of flash memory
• Fingerprint response response time of ≤0.5s
• Fingerprint recognition time of ≤1.5s
• FAR: ≤0.00004%
• FRR: ≤0.15%
• Fingerprint capacity: 3,000
• Type of cards: EM (125KHz)
• Card reading range: 3 ~ 8 cm
• Card reading response time of <0.1s
• User / card capacity: 30,000
• Event logging capacity: 150,000
• Input interface: 1 door sensor, 1 exit button, 1 alarm input
• Output interface: 1 lock relay, 1 bell relay, 1 alarm relay
• Internal clock
• Beeper tone by buzzer
• Voice messages
• Power supply: 9V ~ 15V DC, 200 mA
• Operating temperature: -5 ° C ~ + 55 ° C
• Degree of protection IP55
• Working humidity: ≤95%
• Dimensions: 83 (W) x 205 (H) x 33 mm
• Weight: 440 g
• Surface installation
