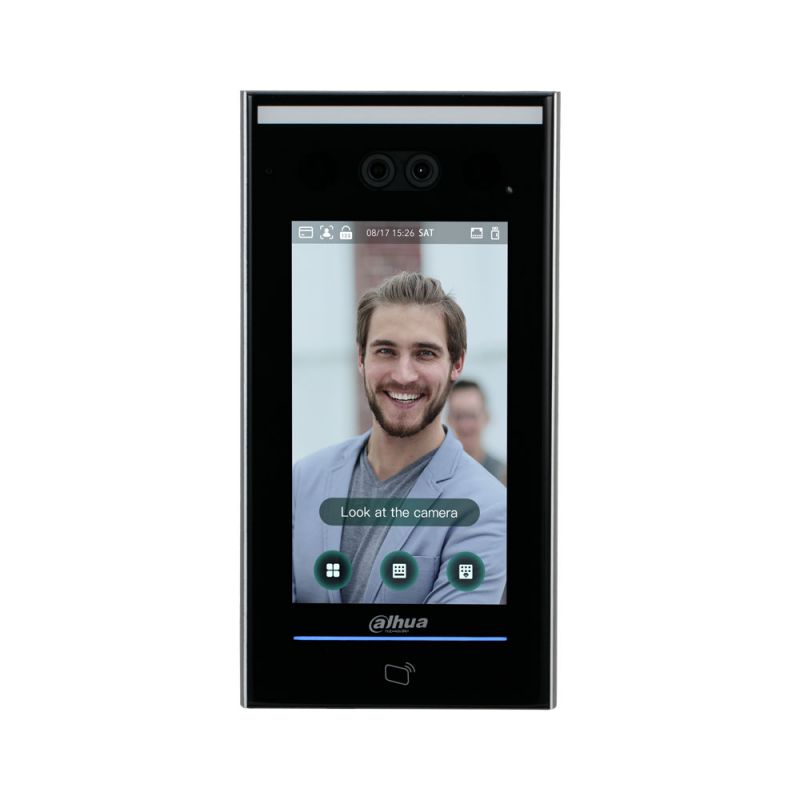

Dahua ASI7213X. Dahua access control terminal with facial detection. 7 inch IPS screen. Up to 100,000 users, 100,000 faces, 100,000 cards and 100,000 passwords. Registration of up to 300,000 events. Supports voice messages. DSS-EXPRESS management platform. Degree of protection IP65. Scope of indoor and outdoor use.

specs

    Embedded Processor

    7-inch capacitive touch IPS display

    600x1024 resolution

    Dual camera with 1 / 2.8 ″ high definition CMOS

    WDR 120dB

    Automatic white light compensation, automatic IR

    Unlock mode: Card / Remote / Password / Facial and combinations

    Supports remote verification

    Peripheral card reader by RS-485 and Wiegand

    Real time surveillance

    Supports Web configuration

    Face verification accuracy of ≥99.5%

    0.2s facial recognition time

    Face recognition range: 0.3 ~ 2 meters

    Person height: 0.9 ~ 2.4 meters

    IC card reader

    1 ~ 3cm card reading distance

    Up to 100,000 users

    Up to 100,000 facial images

    Up to 100,000 cards

    Up to 100,000 passwords

    Record of up to 300,000 events

    List of 128 periods

    128 vacation periods

    First card unlocking

    Communication: 1 RS485 port, 1 RS-232 port, Wiegand input / output, 2 USB ports

    2 alarm inputs, 2 relay outputs, 1 request-to-exit button, 1 lock

    Anti-passback, tamper and duress alarm

    Ethernet network port (10/100 / 1000M)

    Network protocol: IPv4, RTSP, RTP, TCP, UDP, P2P

    Supports OSDP protocol

    ONVIF, CGI, SDK support

    -30 ° C ~ + 60 ° C operating temperature

    0% ~ 90% relative humidity (non-condensing)

    Degree of protection IP65

    Indoor and outdoor use scope

    Power supply: 12V DC, 2A (power supply included)

    Power consumption: 24W

    Dimensions: 129 (W) x 260.6 (H) x 30.5mm

    Weight: 2 kg
