Hysoon HY-AC672 - Hysoon autonomous access control, Fingerprints and…

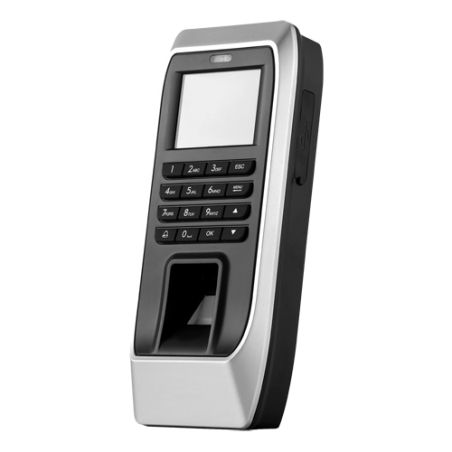

Hysoon autonomous access control - Fingerprints and keypad - 2.000 recordings / 160.000 records - TCP/IP, RS485, and Wiegand 26 - Integrated controller - Free eTime software
€111.80 €172.00 Save 35%
Tax included
Reference HY-AC672
Brand Hysoon
Quantity
Available in 24/48h

Free shipping
Hysoon HY-AC672 - Hysoon autonomous access control, Fingerprints and…

Hysoon HY-AC672 - Hysoon autonomous access control, Fingerprints and…

€111.80 €172.00 Save 35%
  • Hysoon
  • Standalone biometric access control
  • Identification via fingerprint passcode and/or combinations
  • 2.4" TFT Screen & keypad
  • Capacity 2.000 fingerprints/cards, 160.000 records
  • Communication TCP/IP, RS485 and Wiegand 26
  • Integrated controller (door sensor, pushbutton and 2xrelé)
  • eTime management software with access control module included for free

Features

  • Hysoon autonomous access control
  • Fingerprints and keypad
  • 2.000 recordings / 160.000 records
  • TCP/IP, RS485, and Wiegand 26
  • Integrated controller
  • Free eTime software

Specs

Brand Hysoon
CPU 320 MHz
Activation sensor Keystroke or biometric reader
Keypad Mechanical keypad
Capacity Up to 2.000 users
Records Up to 160.000 logs
Read time < 0.5 sec.
FAR (False Acceptance Rate) < 0.0001%
FRR (False Rejection Rate) < 1%
Identification modes Fingerprint and/or password
Screen 2.4" TFT colour 320x240 pixel
Proximity card No
PC communication TCP/IP, USB, RS485
Inputs Wiegand Input, Door sensor, Push button
Outputs Wiegand, NO/NC relay output, doorbell
Temperature 0º C ~ +45º C
Power DC 12 V, 2A max.
Dimensions 44 (D) x 80 (W) x 190 (H) mm
Weight 290 g

Package content

  • Hysoon standalone reader
  • Mounting material
  • User instructions

Data sheet

Weight
290 g
290 g
Power
DC 12 V, 2A max.
CPU
320 MHz
Dimensions
44 (D) x 80 (W) x 190 (H) mm
Capacity
Up to 2.000 users
Screen
2.4\" TFT colour 320x240 pixel
Records
Up to 160.000 logs
Identification modes
Fingerprint and/or password
Huella,y/o contraseña
Proximity card
No
PC communication
TCP/IP, USB, RS485
Inputs
Wiegand Input, Door sensor, Push button
Outputs
Wiegand, NO/NC relay output, doorbell
Power supply
DC 12 V, 2A max.
Temperature
0º C ~ +45º C
Activation sensor
Keystroke or biometric reader
Keyboard
Mechanical keypad
Read time
≤ 0.5 sec.
FAR (False Acceptance Rate)
≤ 0.0001%
FRR (False Rejection Rate)
≤ 1%
Keypad
Mechanical keypad
