B840ZSW-5U4N1-PT - 5Mpx/4Mpx Bullet camera ULTRA range, 4 in 1 (HDTVI /…
search
  • B840ZSW-5U4N1-PT - 5Mpx/4Mpx Bullet camera ULTRA range, 4 in 1 (HDTVI /…

B840ZSW-5U4N1-PT - 5Mpx/4Mpx Bullet camera ULTRA range, 4 in 1 (HDTVI /…

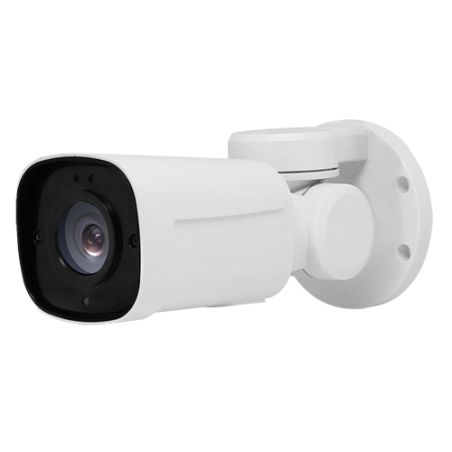

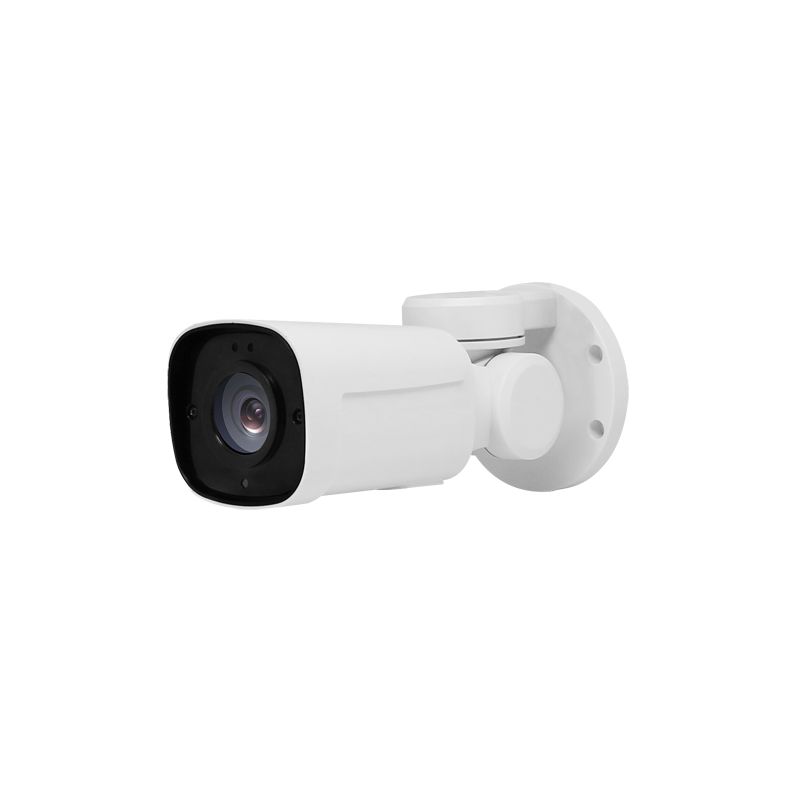

5Mpx/4Mpx Bullet camera ULTRA range - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/2.8" Sony© IMX335+FH8556 - 2.7~13.5 mm Motorised Lens - IR LEDs Array Range 60 m - Movement PT (P:0~355º/T:0~90º)
€124.00
Tax included
Reference B840ZSW-5U4N1-PT
Brand Branded
Quantity
Available in 24/48h

Free shipping
B840ZSW-5U4N1-PT - 5Mpx/4Mpx Bullet camera ULTRA range, 4 in 1 (HDTVI /…

B840ZSW-5U4N1-PT - 5Mpx/4Mpx Bullet camera ULTRA range, 4 in 1 (HDTVI /…

€124.00

You might also like

  • HDTVI, HDCVI, AHD and Analogue bullet camera
  • ULTRA Range
  • 1/2.8“ 5.14MP SONY STARVIS CMOS
  • IMX335+FH8556
  • 5 Mpx (2592x1944)
  • Output 4in1
  • 2.7~13.5 mm Motorised Lens
  • 0 Lux - IR Array Range 20 m
  • WDR
  • 16 Preset
  • 3DNR
  • IR Cut
  • BNC Output
  • Weatherproof IP67

Features

  • 5Mpx/4Mpx Bullet camera ULTRA range
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/2.8" Sony© IMX335+FH8556
  • 2.7~13.5 mm Motorised Lens
  • IR LEDs Array Range 60 m
  • Movement PT (P:0~355º/T:0~90º)

Specs

Range 5Mpx ULTRA
Image sensor 1/2.8" Sony© Starvis CMOS
DSP FH8556
Resolution 5Mpx (HDTVI, HDCVI, AHD)
Video output 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Minimum illumination 0 Lux / LEDs Array IR (20 m)
Basic functions OSD menu, Day/Night
Configurable OSD functions WDR 120dB, BLC, 3D-NR, AE, ATW, AWB, AGC, Smart IR
Lens 2.7~13.5 mm Motorised Lens
Presets Supports up to 16
Power DC 12 V / 1000 mA max.
Degree of protection Weatherproof IP67
Temp. operation -20º C ~ +60º C
Dimensions 185 (D) x 89 (Ø) mm

Package content

  • Bullet camera 4 in 1
  • Mounting material
  • User instructions

Data sheet

Power
DC 12 V / 1000 mA max.
Resolution
5Mpx (HDTVI, HDCVI, AHD)
Temp. operation
-20º C ~ +60º C
Degree of protection
Weatherproof IP67
Dimensions
185 (D) x 89 (Ø) mm
Power supply
DC 12 V / 1000 mA max.
Range
5Mpx ULTRA
Video output
1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Image sensor
1/2.8\" Sony© Starvis CMOS
DSP
FH8556
Minimum illumination
0 Lux / LEDs Array IR (20 m)
Basic functions
OSD menu, Day/Night
Configurable OSD functions
WDR 120dB, BLC, 3D-NR, AE, ATW, AWB, AGC, Smart IR
Lens
2.7~13.5 mm Motorised Lens
Presets
Supports up to 16
