PD-250-18-SLIM - Slim power distribution box, 1 AC input 220 V 5OHz, 18…
search
  • PD-250-18-SLIM - Slim power distribution box, 1 AC input 220 V 5OHz, 18…

PD-250-18-SLIM - Slim power distribution box, 1 AC input 220 V 5OHz, 18…

Slim power distribution box - 1 AC input 220 V 5OHz - 18 outputs - Resettable fuse protection - Output voltage 12 V / 250 W - Metal housing
€92.00
Tax included
Reference PD-250-18-SLIM
Brand Branded
Quantity
Available in 24/48h

Free shipping
PD-250-18-SLIM - Slim power distribution box, 1 AC input 220 V 5OHz, 18…

PD-250-18-SLIM - Slim power distribution box, 1 AC input 220 V 5OHz, 18…

€92.00

Professional power supply distribution box. It functions as a centralized power supply for several cameras or other security devices offering individualized protection.

It provides a total power of 250 W (20 A) which is distributed evenly between 18 DC voltage outputs of 12 V with clamp connection. The source is powered by an AC outlet (AC 96 ~ 264 V).

It has several protection systems to ensure that the installation is working perfectly:

  • Fuse of 20A for general protection at the entrance of the source
  • PTC resettable fuse for each individual output until 1150 mA
  • Protection against short circuit
  • Protection against overvoltage and power-line surges

It incorporates an EMI filter to avoid electromagnetic interference to other devices or nearby cables. Due to the correction of the power factor (PFC) the electrical cost of reactive energy in industrial facilities is avoided. Low noise output for a clean and stable operation of connected devices. Output voltage is fixed in DC 12 V.

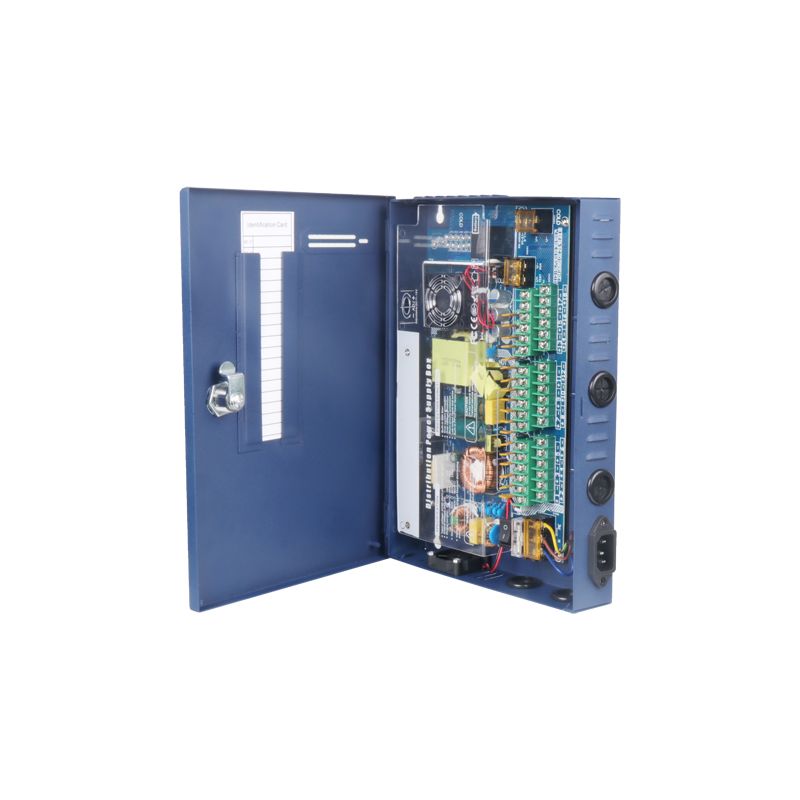

The power supply is housed in a metal cabinet with insulated cable grommets and key lock for added protection. On the front of the box there is an indicator with status LEDs for each output in order to facilitate both installation and maintenance.

Features

  • Slim power distribution box
  • 1 AC input 220 V 5OHz
  • 18 outputs
  • Resettable fuse protection
  • Output voltage 12 V / 250 W
  • Metal housing

Specs

Power supply input AC 96 V - 264 V 50/60 Hz
Power supply outputs 18 outputs via copper pair (clamp)
Output voltage 12VDC
Total power 250 W (20 A)
Max intensity. per output 1150 mA
Protection Short circuit / Over voltage / Current peaks
Filtered EMI / PFC
Temp. operation -20º C ~ +50º C
Dimensions 282 (H) x 206 (W) x 40 (D) mm
UPS function Connectors for batteries 7AH-24AH externally (Battery not included)

Package content

  • Power supply distribution box with 18 outputs 12 V
  • Safety lock key
  • Replacement fuse 20A
  • Installation template
  • 4 plugs and 4 affix screws
  • User instructions

Data sheet

Temp. operation
-20º C ~ +50º C
Protection
Short circuit / Over voltage / Current peaks
Dimensions
282 (H) x 206 (W) x 40 (D) mm
Power supply input
AC 96 V - 264 V 50/60 Hz
Power supply outputs
18 outputs via copper pair (clamp)
Output voltage
12VDC
Total power
250 W (20 A)
Max intensity. per output
1150 mA
Filtered
EMI / PFC
UPS function
Connectors for batteries 7AH-24AH externally (Battery not included)
