  • Safire SF-TOTEM-4K - Display panel, CCTV 4K | Video door phones, Access and…

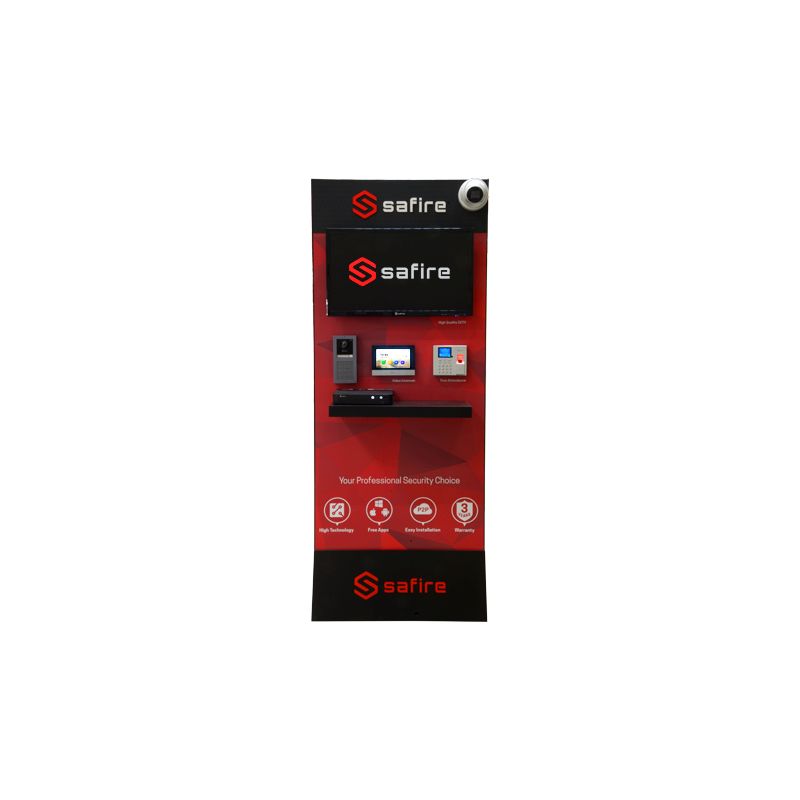

Safire SF-TOTEM-4K - Display panel, CCTV 4K | Video door phones, Access and…

Display panel - CCTV 4K | Video door phones - Access and Attendance - Switch with internet connection - Plug & Play - Stand included
€3,000.00
Tax included
Reference SF-TOTEM-4K
Brand Safire
Quantity
Out-of-Stock

Free shipping
  • Safire
  • Integral display panel for Safire security systems
  • Designed for the point of sale and the realization of DEMO to the professional customer
  • High quality finish
  • Vision of the interior connection
  • Composed by CCTV 4K, Video Intercoms, Access Control and Attendance in a single solution
  • Recorder SF-XVR8108S-4KL, Camera 4K SF-T855ZUW-8U4N1 and monitor SF-MNT28-4K
  • SF-VIMOD-CAM-IP video intercom panel, SF-VIMOD-KPAD keyboard module and monitor SF-VIDISP-7IP
  • Access and Attendance Control Terminal SF-AC3003KEMD-IP
  • Conducting real Safire demonstrations
  • Incorporates switch for internet connection
  • Plug & Play installation
  • Compatible with Safire Connect and Safire Control Center

Features

  • Display panel
  • CCTV 4K | Video door phones
  • Access and Attendance
  • Switch with internet connection
  • Plug & Play
  • Stand included

Specs

Totem StandDimensiones

Alto: 202 cm
Width: 81 cm
Depth: 15 cm (40 cm with shelf)

Video Intercom System

Marca

SafireModeloSF-VIMOD-CAM-IPSistema operativoLINUX OSSensor de imagenLow Illumination 2 MPx IRFunciones de imagenBLC / WDR / DNRÁngulo de visiónD: 180º H:96ºAudioAudio bidireccional con micrófono y altavozTecladoBotón mecánico de llamada con etiqueta de personalización LEDSalidas2 de relé / 1 salida de móduloEntradas4 entradasAcceso remotoAplicación teléfono móvil o software Safire Control CenterInterfaz de redEthernet 10/100 BaseTModularCompatible con placas modulares SafireAlimentaciónDC 12 V / 850 mA max. / PoE (IEEE 802.3af)Grado de protecciónIP65MaterialAcero inoxidableTemp. funcionamiento-40º C ~ +60º C

Video intercom monitor

Marca

SafireModeloSF-VIDISP01-7IPSistema operativoLINUX OSLCD7" 1024x600, CapacitivaModo de operaciónBotonera táctilEntradas8 Entradas de alarma configurablesAudioAudio bidireccional con micrófono y altavoz con reducción de ruidoAcceso remotoAplicación teléfono móvil o software Safire Control CenterMemoriaSlot MicroSD hasta 32GBInterfaz de redEthernet 10/100 BaseT / RS485 / RTSPAlimentaciónDC 12 V / 600 mA /standard PoE (IEEE802.3af)Temp. funcionamiento-10º C ~ +55º C

Keyboard Module

Marca

SafireModeloSF-AC3003KEMD-IPTecladoTeclado numérico para llamada a apartamentos y control de accesosAcceso remotoNavegador Web en placa modular SafireModularCompatible con placas modulares SafireAlimentaciónA través de 4 hilos entre placas modularesGrado de protecciónIP65

Access Control and Presence

Marca

SafireModeloSF-AC3003KEMD-IPCPULinuxSensorÓpticoSensor de activaciónAuto-activación por infrarrojosTiempo de verificación< 1 SegCapacidadHasta 1.000 huellas/tarjetas (Hasta 10 por usuario)Registros100.000 registros y 50.000 registros de asistenciaModos de identificaciónHuella, Tarjeta EM, Pin y combinacionesTarjeta de proximidadTarjeta EM 125 KHzPantalla2.4" LCD TFT a colorComunicaciónTCP/IP, USB, RS485SalidasTimbre, ReléEntradasSensor puerta, Botón de aperturaSoftwareSafire Control CenterAlimentaciónDC 12 V / 1A max.Grado de protecciónNo disponeTemp. funcionamiento-10º C ~ +55º C

Camera 4K

Marca

SafireGamaULTRASensor de imagenHigh Performance CMOS Ultra Low LightResolución máxima8 Mpx (3480x2160)Resolución8Mpx a 15 fpsLenteMotorizada 2.7~13.5 mm AutofocusIluminación mínima0.003 Lux @(F1.2, AGC ON)Iluminación infrarroja0 Lux / SMART IR EXIR LEDs (60 m)Día / NocheAuto / Color / BW (Blanco y negro)Salida de vídeo1 x BNC conmutable HDTVI / HDCVI / AHD / CVBSConmutación salida de vídeoMediante SwitchFunciones básicasMenú OSD (remoto)Funciones OSD configurablesWDR (130dB), 3D DNR, AWB, ATW, BLC, AGC, HLC, Mirror, Smart IRPosicionamiento Lente3 AxisAlimentaciónDC 12 V / 900 mA, 11 w máxGrado de protecciónApta para InteriorTemp. funcionamiento-40º C ~ +60º CMaterialMetal

Recorder 4K

Marca

SAFIREFormato de vídeoHDTVI / HDCVI / AHD / CVBS / IPEntradas de vídeo8 Canales BNC, (HDTVI / HDCVI / AHD / CVBS)Configuración híbridaPor defecto: 8 Channels from BNC and 8 (replacement) + 2 (extra) IP Channels (up to 8Mpx)
Enhanced IP Mode:8 Channels from BNC and 8 (replacement) + 8 (extra) IP Channels (up to 8Mpx)
El modo IP mejorado limita el ancho de banda a 4Mbps por canal IPAncho de banda de entrada64 MbpsSalidas de vídeo1 HDMI Full HD, 1 VGAEntradas de audio1 Canal RCASalidas de audio1 Canal RCAAudio bidireccionalReutilizando la entrada/salida de audioCompresión vídeo/audioH.265Pro+ / H.265Pro / H.264+ / H.264 / G.711uResolución display3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768Resolución de entrada BNC8Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720pCodificación Main StreamTVI: 8 MP (8FPS), 5 MP, 4 MP(15FPS), 3 MP(18FPS), 1080p / 720(25FPS)
AHD: 5 MP, 4 MP, 1080P
CVI:5 MP, 4 MP, 1080PC¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO¡ERROR! FORMATO INADECUADO

Data sheet

Power
4 wire communication between modules
DC 12 V / 1A max.
DC 12 V / 600 mA /standard PoE (IEEE802.3af)
DC 12 V / 850 mA max. / PoE (IEEE 802.3af)
DC 12 V / 900 mA, 11 w max
Resolution
8Mpx at 15 FPS
CPU
Linux
Temp. operation
-10º C ~ +55º C
-40º C ~ +60º C
Degree of protection
IP65
No
Valid for interior
Capacity
Up to 1.000 fingerprints/cards (Up to 10 per user)
Screen
2.4\" Color TFT LCD
Records
100.000 records and 50.000 attendance tables
Identification modes
Fingerprint, EM Card, Pin and combinations
Proximity card
125 KHz EM card
Inputs
4 inputs
8 Configurable alarm entries
Door sensor, Open button
Outputs
2 relay / 1 module output
Doorbell, Relay
Material
Metallic
Stainless steel
Range
ULTRA
Communication
TCP/IP, USB, RS485
Video output
1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Audio
Bidirectional audio with microphone and speaker
Two-way audio with microphone and speaker with noise reduction
Video format
HDTVI / HDCVI / AHD / CVBS / IP
Activation sensor
Infrared auto-activation
Operating system
LINUX OS
Memory
Slot MicroSD up to 32GB
Image sensor
High Performance CMOS Ultra Low Light
Low Illumination 2 MP IR
Minimum illumination
0.003 Lux @(F1.2, AGC ON)
Basic functions
OSD menu (remote)
Configurable OSD functions
WDR (130dB), 3D DNR, AWB, ATW, BLC, AGC, HLC, Mirror, Smart IR
Lens
2.7~13.5mm Motorised auto-focus
Maximum resolution
8 Mpx (3480x2160)
Infrared lighting
0 Lux / SMART IR EXIR LEDs (60 m)
Day / Night
Auto / Colour / BW (Black and White)
Viewing angle
D: 180º H:96º
Video inputs
8 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Bidirectional audio
Reusing the audio input/output
Display resolution
3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
No
Recording method
Manual, programmed, motion detection, alarm
Remote access
Mobile app or Safire Control Center-software
Safire Control Center AC through main panel
Network interface
Ethernet 10/100 BaseT
Ethernet 10/100 BaseT / RS485 / RTSP
Video outputs
1 HDMI Full HD, 1 VGA
Video / audio compression
H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u
Main Stream coding
TVI: 8 MP (8FPS), 5 MP, 4 MP(15FPS), 3 MP(18FPS), 1080p / 720(25FPS) AHD: 5 MP, 4 MP, 1080P CVI:5 MP, 4 MP, 1080P
Sensor
Optic
Hybrid configuration
Default: 8 Channels from BNC and 8 (replacement) + 2 (extra) IP Channels (up to 8Mpx) Enhanced IP Mode:8 Channels from BNC and 8 (replacement) + 8 (extra) IP Channels (up to 8Mpx) Enhanced IP mode limits bandwidth to 4Mbps per IP channel
Audio inputs
1 Channel RCA
Audio outputs
1 Channel RCA
Extra Stream coding
WD1 / 4CIF (12FPS) / CIF (25 FPS)
Backup
USB / Network / Cloud (Microsoft One Drive, Dropbox)
Video analysis
No
Read time
≤ 1 Sec.
Software
Safire Control Center
LCD
7\" 1024x600, Capacitive
Operation mode
Tactile Buttons
Modular
Compatible with Safire extension modules
Input bandwidth
64 Mbps
Lens Adjustment
3 Axis
Video output switching
Via Switch
Image Functions
BLC / WDR / DNR
Keypad
Mechanical button with LED backlit name-tag
Numeric keypad for access control and calls to different apartments
BNC input resolution
8Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p
