  • Safire SF-AC3001KMF-IP - Contrôle d\'Accès, Carte Mifare et clavier, 3.000…

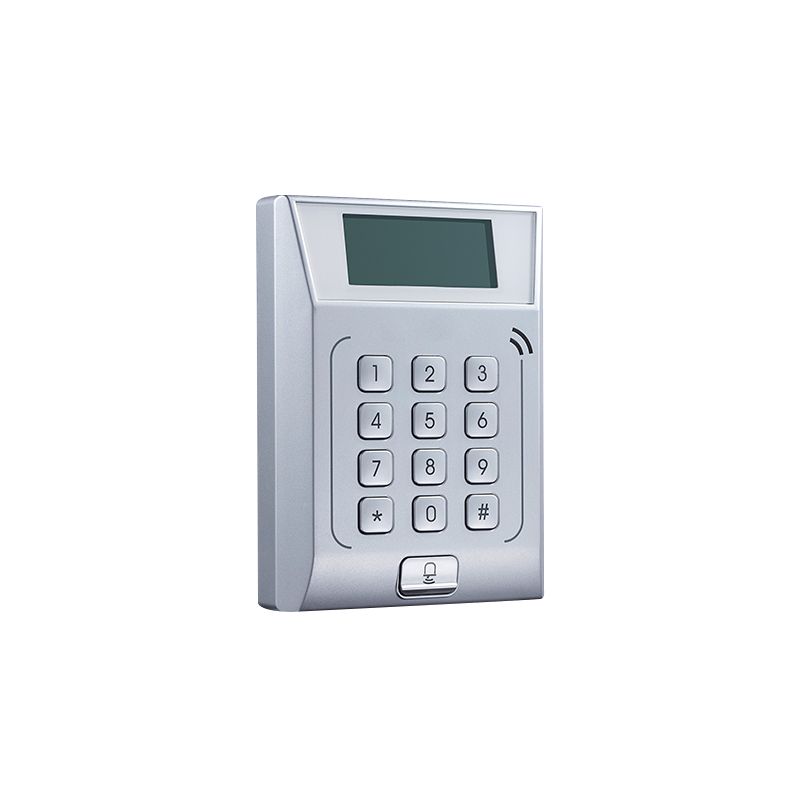

Safire SF-AC3001KMF-IP - Access Control, MF Card and keyboard, 3.000 users /…

Access Control - MF Card and keyboard - 3.000 users / 10.000 registers - TCP/IP and Relay - Integrated controller - Safire Control Center-software
€57.20 €88.00 Save 35%
Tax included
Reference SF-AC3001KMF-IP
Brand Safire
Quantity
Out-of-Stock

Free shipping
  • Safire
  • Stand-alone access control reader
  • Identification by MF card, password and/or combinations
  • Keypad and dot matrix screen
  • Capacity for 3.000 cards & 10.000 registers
  • TCP/IP Communication
  • Integrated controller (door sensor, push button, bell and relay)
  • Compatible with Safire Control Center-software

Features

  • Access Control
  • MF Card and keyboard
  • 3.000 users / 10.000 registers
  • TCP/IP and Relay
  • Integrated controller
  • Safire Control Center-software

Specs

Brand Safire
Model SF-AC3001KMF-IP
Hardware CPU 32 Bit
Capacity Up to 3.000 users
Records 10.000 registers
Identification modes MF Card, Pin and combinations
Proximity card MF card 13.56 MHz
Screen 128 x 64 Dot matrix
Communication TCP/IP
Outputs Relay
Relay Max. supported load 30V/2A DC
Inputs Doorbell, Door sensor, Opening button
Software Safire Control Center AC
Power DC 12 V / 170mA max.
Degree of protection No
Temp. operation -20º C ~ +65º C
Dimensions 94.5 (W) x 126.5 (H) x 24 (D) mm
Weight 190 g

Package content

  • Safire Access Control Device
  • Mounting material
  • User instructions

Data sheet

Weight
190 g
190 g
Power
DC 12 V / 170mA max.
Temp. operation
-20º C ~ +65º C
Degree of protection
No
Dimensions
94.5 (W) x 126.5 (H) x 24 (D) mm
Capacity
Up to 3.000 users
Screen
128 x 64 Dot matrix
Records
10.000 registers
Identification modes
MF Card, Pin and combinations
Mifare card, Pin and combinations
Proximity card
13.56 MHz Mifare card
MF card 13.56 MHz
Inputs
Doorbell, Door sensor, Opening button
Outputs
Relay
Power supply
DC 12 V / 170mA max.
Communication
TCP/IP
Relay
Max. supported load 30V/2A DC
Software
Safire Control Center AC
Hardware CPU
32 Bit
Degré de protection
Non disponible
Temp. fonctionnement
-20º C ~ +65º C
