• -35%

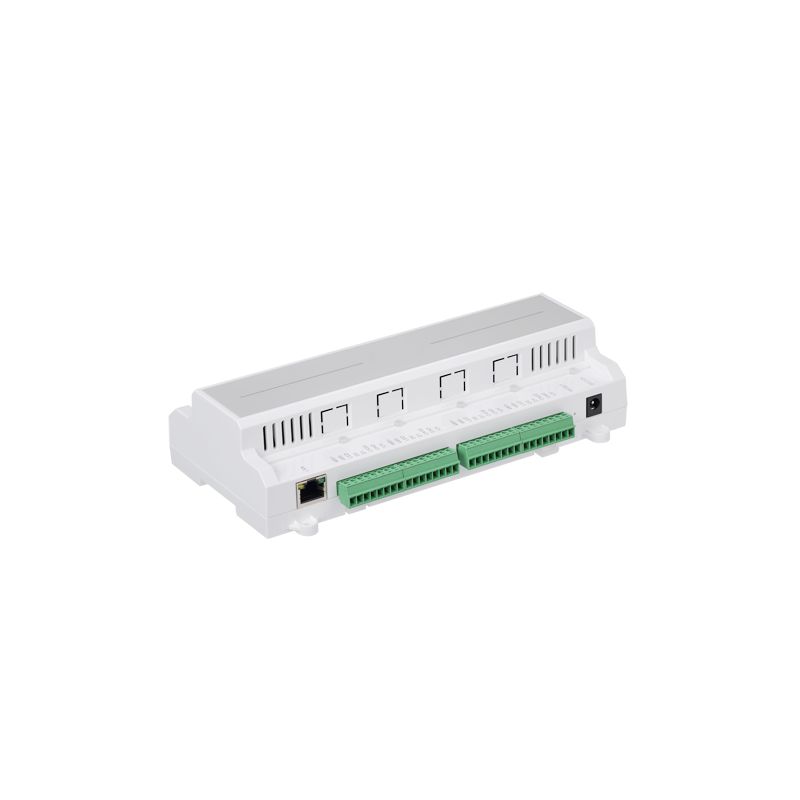

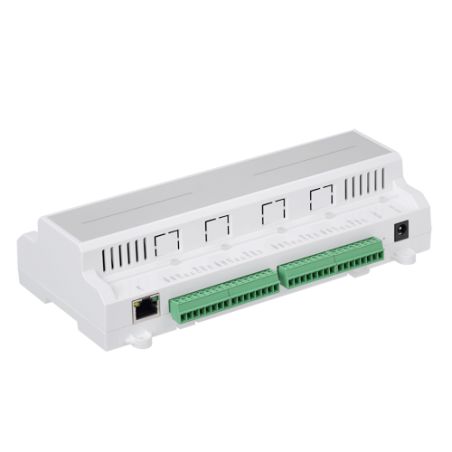

X-Security XS-AC1204-C - Biometric access controller, Access by fingerprint,…
search
  • X-Security XS-AC1204-C - Biometric access controller, Access by fingerprint,…

X-Security XS-AC1204-C - Biometric access controller, Access by fingerprint,…

Biometric access controller - Access by fingerprint, card or password - TCP/IP Communication - 4 Wiegand 26 / RS485 inputs - Relay output for four doors - SmartPSS Software
€76.70 €118.00 Save 35%
Tax included
Reference XS-AC1204-C
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security XS-AC1204-C - Biometric access controller, Access by fingerprint,…

X-Security XS-AC1204-C - Biometric access controller, Access by fingerprint,…

€76.70 €118.00 Save 35%

You might also like

  • X-Security
  • Access controller
  • Management of 4 doors
  • Capacity 100.000 users and 150.000 records
  • Supports up to 4 Wiegand readers or RS485
  • TCP/IP Communication
  • Input of 4 push buttons, 4 door sensors and 1 auxiliary input
  • 4 Relay outputs and 1 alarm outputs
  • Relay configuration NO/NC
  • Compatible with SmartPSS software for management of access control and reports

Features

  • Biometric access controller
  • Access by fingerprint, card or password
  • TCP/IP Communication
  • 4 Wiegand 26 / RS485 inputs
  • Relay output for four doors
  • SmartPSS Software

Specs

Brand X-Security
Hardware CPU 32bit CPU
Capacity Up to 100.000 cards
Records 150.000 registers
Identification modes Fingerprints, Card and/or passwords
Proximity card EM RFID (125 KHz) / MF (13,56MHz)
Communication TCP/IP | RS485
Outputs 4 x Relay Output, 1 x Alarm output
Inputs 4 x Wiegand 26 IN/RS485, 4 x Door sensor, 4 x Open button, 1 x Alarm input
Software SmartPSS
Power DC 12 V / 1A max.
Temp. operation -30º C ~ +60 ºC
Dimensions 210 (W) x 51 (H) x 106 (D) mm
Weight 500 g

Package content

  • X-Security Access controller
  • Mounting material
  • User instructions

Data sheet

Weight
500 g
500 g
Power
DC 12 V / 1A max.
Temp. operation
-30º C ~ +60 ºC
Dimensions
210 (W) x 51 (H) x 106 (D) mm
Capacity
Up to 100.000 cards
Records
150.000 registers
Identification modes
Fingerprints, Card and/or passwords
Proximity card
EM RFID (125 KHz) / MF (13,56MHz)
EM RFID (125 KHz) / Mifare(13,56MHz)
Inputs
4 x Wiegand 26 IN/RS485, 4 x Door sensor, 4 x Open button, 1 x Alarm input
Outputs
4 x Relay Output, 1 x Alarm output
Power supply
DC 12 V / 1A max.
Communication
TCP/IP | RS485
Brand
X-Security
Software
SmartPSS
Hardware CPU
32bit CPU
