Data sheet

Power

DC 12 V / 1.5 A, PoE+ IEEE802.3at (Max. 24W)
DC 12V, 50/60 Hz

Resolution

2 Megapixel (1920x1080)

Temp. operation

-30º C ~ +65º C

Degree of protection

IP66 / Surges 4000V

Screen

Aluminium polyester with 96% coating+CuSn drainage

Dimensions / Weight

44 (H) x 440 (W) x 321,8 (D) mm / 3.35 Kg

Communication

RS485 (PTZ) / RS232

Audio

1 input (Line In) / 1 output (Line Out)

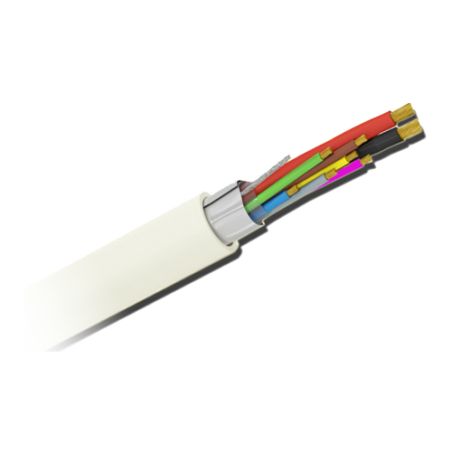

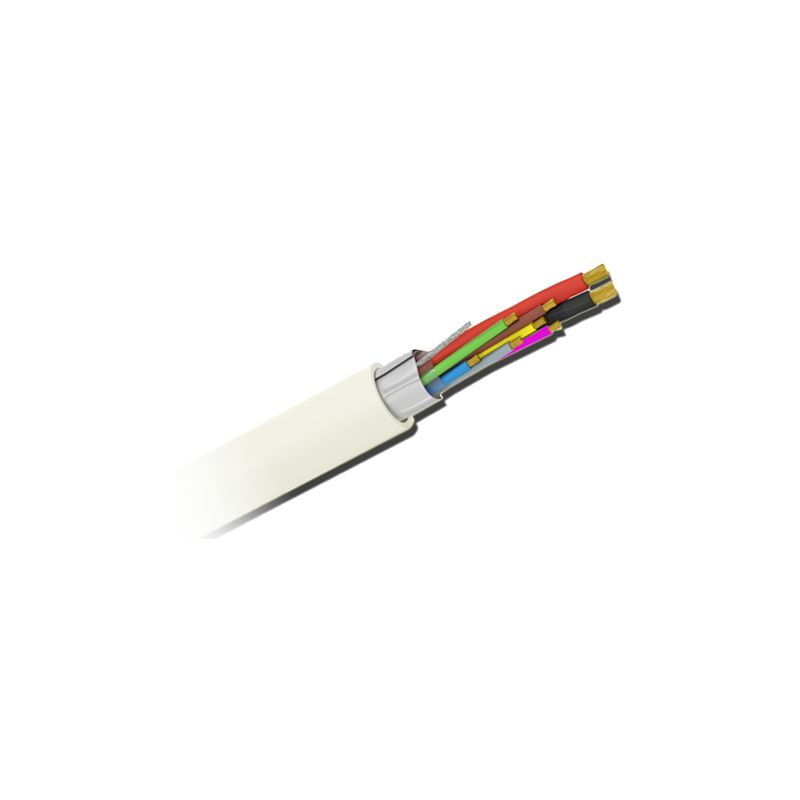

Length

100 m

Interior conductor

Flexible electrolytic copper AWG25 0,22 mm Class 5

Isolation

Polyethylene

Formation of the wires

Twisted

External cover

Polyolefin FRLSHF 6.3 mm

Number of conductors

12 signal

Image sensor

1/2.8“ Progressive Scan CMOS

Minimum illumination

0.005 Lux (color) / 0.001 Lux (B/N)/ LEDs IR (100 m)

Lens

Varifocal 4.8~120 mm (Optical Zoom 25X)

Image improvements

BLC, HLC, DWDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI

Day / Night

Removable mechanical ICR filter

Pan/Tilt Range

Horizontal: 0°~80°, Vertical: -15°~90° auto flip

Manual speed

Horizontal: 0.1° ~ 80°/sec, Vertical: 0.1° ~80°/s

Preset positions

300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan

Video inputs

4 VGA, 1 HDMI

Inputs for IP cameras

1 LAN Port

IP compatible cameras

Safire, ONVIF

Bidirectional audio

4 input / 4 output BNC / 1 RCA in / 1 RCA out

Simultaneous multifunction

Pentaplex: Live, Recording, Playback, Backup and Remote Access

Alarms

1 IN / 1 OUT
4 in / 4 relay

Recording method

Manual, programmed, motion detection, alarm

Internal memory

MicroSD card, Max 256 GB

Remote access

Safire Control Web Browser, App Smartphone and PC Software Center2.7.1.50
Web browser, Safire Control Center Smartphone App and PC Software

Compression

H.265+/ H.265 / H.264+/ H.264

Network interface

1 x RJ45 10/100/1000M Manageable / 1 x RJ45 10/100/1000M
Ethernet 10 / 100 BaseT

Video outputs

4 HDMI Ultra HD 4K

Video analysis

VCA: Tripwire | Area intrusion | Audio exception

Interoperability

ONVIF, PSIA, CGI

Decoding capacity

1ch@12Mpx / 1ch@4K / 4ch@1080p

Digital zoom

16X

Electronic shutter

1/1s~1/10,000s

Speed between Presets

Horizontal: 80° /s, Vertical: 80° /s

PTZ Control

Through network access

Advanced functions

TrueSense with false alarm filtering for vehicles and people | Line Crossing | Intrusion

Video decoding format

H.265 / H.264 / MPEG4 / MJPEG

Dimensions (without bracket)

290 mm (H) x 165 (Ø) mm

Weight (without bracket)

2000 g
