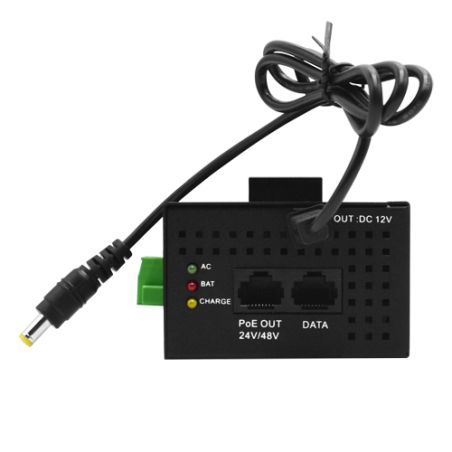

INJ-POE-30W-UPS - PoE injector, Input/Output RJ45 10/100/1000 Mbps,…

PoE injector - Input/Output RJ45 10/100/1000 Mbps - Power 30 W - Maximum distance 100 m - PoE/PoE+ IEEE802.3af/at and Liability 24V - Supports UPS battery backup | Jack output DC12V
€44.00
Tax included
Reference INJ-POE-30W-UPS
Brand Branded
Quantity
In Stock

Free shipping
INJ-POE-30W-UPS - PoE injector, Input/Output RJ45 10/100/1000 Mbps,…

INJ-POE-30W-UPS - PoE injector, Input/Output RJ45 10/100/1000 Mbps,…

€44.00
  • PoE+ injector
  • To inject data and power on a UTP cable to power PoE + devices (up to 30W) remotely
  • Maximum distance 100 metres
  • Compatible with PoE IEEE802.3af/at and Passive PoE 24V
  • DC power output 24/48V and jack DC12V 3A
  • Battery UPS function 12V 30AH

Features

  • PoE injector
  • Input/Output RJ45 10/100/1000 Mbps
  • Power 30 W
  • Maximum distance 100 m
  • PoE/PoE+ IEEE802.3af/at and Liability 24V
  • Supports UPS battery backup | Jack output DC12V

Specs


Interface Input / Output RJ45 of 10/100/1000Mbps
Power supply 30 W (Max. 46~52 VDC)
Power AC 90 V - 240 V
UPS function Battery support 12V 30H (not included)
Power supply outputs 1x jack DC 12 V max 3 A - 1x DC 24/48 V selectable
PoE features According to IEEE 802.3af/at
Passive PoE features 24 V to 24 W
Maximum range 100 meters
Operating temperature -30º C - 70º C
Dimensions 158 (D) x 35 (H) x 142 (W) mm

Package content

- PoE + injector

Data sheet

Power
AC 90 V - 240 V
Dimensions
158 (D) x 35 (H) x 142 (W) mm
Operating temperature
-30º C - 70º C
Power supply
30 W (Max. 46~52 VDC)
PoE features
According to IEEE 802.3af/at
Maximum range
100 meters
Interface
Input / Output RJ45 of 10/100/1000Mbps
Power supply outputs
1x jack DC 12 V max 3 A - 1x DC 24/48 V selectable
UPS function
Battery support 12V 30H (not included)
Passive PoE features
24 V to 24 W
