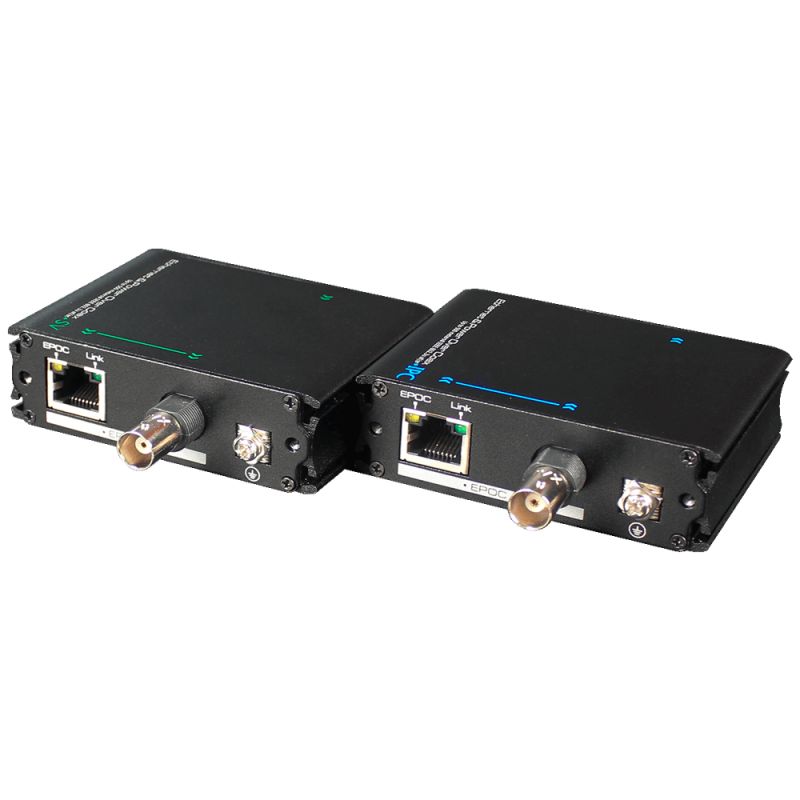

EOC-500-POE - IP extender coaxial cable | PoE, Passive, Transmitter…

IP extender coaxial cable | PoE - Passive - Transmitter and receiver - Allows transmission 1 IP channel - Maximum distance 500 - Bandwidth up to 100 Mbps
€154.00
Tax included
Reference EOC-500-POE
Brand Branded
Quantity
Out-of-Stock

Free shipping
  • Extender Ethernet over Coaxial and Ethernet Cable
  • Passive transmitter and receiver
  • Allows to transmit 1 IP channel and PoE power IEEE802.3af/at
  • Maximum distance 500 m via coaxial cable and 400 m via Ethernet cable at 100 Mbps bidirectional
  • No power supply required

Features

  • IP extender coaxial cable | PoE
  • Passive
  • Transmitter and receiver
  • Allows transmission 1 IP channel
  • Maximum distance 500
  • Bandwidth up to 100 Mbps

Specs

Power POE or power adapter
PoE IEEE802.3u ,IEEE 802.3af, 802.3at standard;
Datarate 10/100 Mbps with DIP switch
Distance over coaxial 500 m via coaxial cable and 400 m via Ethernet cable
Ethernet connection Port RJ45
Ethernet signal 10/100Mbps Base-T
Status indicators Yellow: power OK | Green: ethernet signal transmission OK |Green/yellow, signal transmission OK
Transmitted PoE Power 4.5 W to 500 meters of coaxial cable, 5 W to 400 meters of coaxial cable
Protection IEC61000-4-5 Level 3
Operating conditions -40℃~75℃ Temperature | 95% Humidity
Dimensions 63.2 x 82 x 25 mm
Weight IPC:153 g ; SV: 154 g

Package content

  • Pair of transceivers
  • Manual

Data sheet

Weight
IPC:153 g, SV: 154 g
Power
POE or power adapter
Ethernet Connection
Port RJ45
Protection
IEC61000-4-5 Level 3
Dimensions
63.2 x 82 x 25 mm
PoE
IEEE802.3u ,IEEE 802.3af, 802.3at standard,
Datarate
10/100 Mbps with DIP switch
Distance over coaxial
500 m via coaxial cable and 400 m via Ethernet cable
Ethernet signal
10/100Mbps Base-T
Status indicators
Yellow: power OK | Green: ethernet signal transmission OK |Green/yellow, signal transmission OK
Transmitted PoE Power
4.5 W to 500 meters of coaxial cable, 5 W to 400 meters of coaxial cable
Operating conditions
-40℃~75℃ Temperature | 95% Humidity
