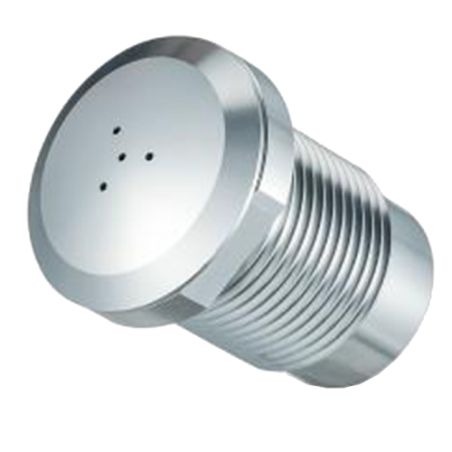

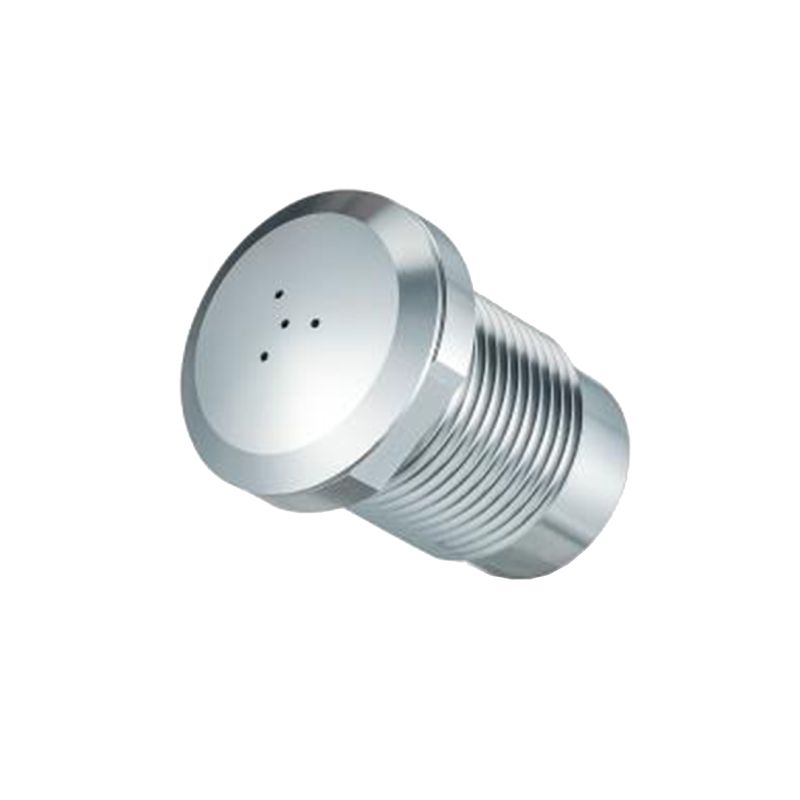

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 150SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 10229 AND id_lang = 1 Dahua HAP120-V - Branded Microphone, External / Omnidirectional, High…
  • -35%
Dahua HAP120-V - Micrófono Branded, Externo / Omnidireccional, Alta…
search
  • Dahua HAP120-V - Micrófono Branded, Externo / Omnidireccional, Alta…

Dahua HAP120-V - Branded Microphone, External / Omnidirectional, High…

Branded Microphone - External / Omnidirectional - High quality - 5m range, sensitivity -43dB - Audio RCA / Jack DC12V - IP66 Flush Mount Installation
€70.79 €108.90 Save 35%
Tax included
Reference HAP120-V
Brand Dahua
Quantity
Available in 24/48h

Free shipping
Dahua HAP120-V - Micrófono Branded, Externo / Omnidireccional, Alta…

Dahua HAP120-V - Branded Microphone, External / Omnidirectional, High…

€70.79 €108.90 Save 35%
  • Branded
  • External, Omnidirectional, Microphone
  • High sound quality
  • S/N ratio (signal/noise) 58 dB
  • Sensitivity -43 dB
  • Dymamic range 74 dB
  • Range 5 m
  • Output impedance 100 Ω non-equilibrium
  • Automatic noise reduction
  • Audio output via female RCA connector
  • Power supply DC12V by male jack connector
  • Protected against over-voltage and surge currents
  • Aluminium housing suitable for outdoor use IP66
  • Flush mount for more discrete and aesthetic installation

Features

  • Branded Microphone
  • External / Omnidirectional
  • High quality
  • 5m range, sensitivity -43dB
  • Audio RCA / Jack DC12V
  • IP66 Flush Mount Installation

Specs

Range 5 m
Frequency response 20 Hz ~ 20 KHz
Sensitivity -43 dB
Signal-to-noise ratio SNR 58 dB (1m 40dB sound source SPL) 1KHz at 1Pa
Direction pattern Omnidirectional
Gain Adjustment 44 dB by default
Dynamic range 74 dB (1KHz at maximum dBSPL)
Maximum sustainable sound pressure 110 dBSPL (1KHz, THD 1%)
Output Impedance 100 ohm (unbalanced)
Signal Output 2.5 Vpp / -25dB
Signal Processing Dynamic Noise Reduction
Power DC12V / 60 mA
Working temperature -30º C ~+70º C
Material Aluminium alloy, weatherproof IP66
Weight 60 g
Dimensions 50 (H) x 35 (Ø) mm

Package content

  • External microphone
  • User instructions

Data sheet

Weight
60 g
Power
DC12V / 60 mA
Sensitivity
-43 dB
Dimensions
50 (Al) x 35 (Ø) mm
50 (H) x 35 (Ø) mm
Power supply
DC12V / 60 mA
Material
Aleación de aluminio, impermeable IP66
Aluminium alloy, weatherproof IP66
Range
5 m
Output Impedance
100 ohm (no balanceado)
100 ohm (unbalanced)
Working temperature
-30º C ~+70º C
Frequency response
20 Hz ~ 20 KHz
Output signal
2.5 Vpp / -25dB
Signal Output
2.5 Vpp / -25dB
Relación señal / ruido
SNR 58 dB (1m 40dB sound source SPL) 1KHz a 1Pa
Rango dinámico
74 dB (1KHz a máximo dBSPL)
Presión sonora máxima sostenible
110 dBSPL (1KHz, THD 1%)
Signal-to-noise ratio
SNR 58 dB (1m 40dB sound source SPL) 1KHz at 1Pa
Dynamic range
74 dB (1KHz at maximum dBSPL)
Maximum sustainable sound pressure
110 dBSPL (1KHz, THD 1%)
Rango
5 m
Patrón direccional
Omnidireccional
Ajuste de ganancia
44 dB por defecto
Procesamiento de señal
DNR reducción de ruido
Direction pattern
Omnidirectional
Gain Adjustment
44 dB by default
Signal Processing
Dynamic Noise Reduction
