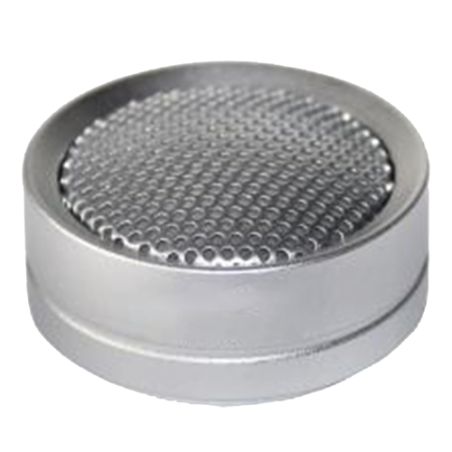

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 150SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 8809 AND id_lang = 1 Dahua HAP120 - Branded Microphone, External / Omnidirectional, 10~70…

-35%

Dahua HAP120 - Micrófono Branded, Externo / Omnidireccional, 10~70…

Dahua HAP120 - Branded Microphone, External / Omnidirectional, 10~70…

Branded Microphone - External / Omnidirectional - 10~70 m2 - RCA connector - Power supply DC12V - Esthetic design

€20.30 €31.23 Save 35%

Tax included

Reference HAP120

Brand Dahua

Dahua HAP120 - Micrófono Branded, Externo / Omnidireccional, 10~70…

Dahua HAP120 - Branded Microphone, External / Omnidirectional, 10~70…

€20.30 €31.23 Save 35%

Description
Product Details

Branded
External, Omnidirectional, Microphone
Audio output via female RCA connector
Power supply DC12V by male jack connector
S/N ratio 58 dB
Sensitivity -34dB
Range 10~70 m2
Output impedance 600 Ω

Features

Branded Microphone
External / Omnidirectional
10~70 m2
RCA connector
Power supply DC12V
Esthetic design

Specs

Coverage	10 ~70 m2
Sensitivity	-34 dB
Frequency response	80 Hz ~ 16 KHz
Directionality Pattern	Omnidirectional
Signal-to-noise ratio	SNR 58 dB (re 94dBSPL = 1Pa@1KHz)
Dynamic range	74 dB
Maximum sustainable sound pressure	110 dBSPL (1KHz, THD 1%)
Output Impedance	600 ohm (unbalanced)
Signal Output	2.5 Vpp / 88dBSPL
Microphone Type	Film condenser
Power	DC12V / 40 mA
Working temperature	-30º C ~+70º C
Material	Aluminium
Weight	48 g
Dimensions	20 (H) x 40 (Ø) mm

Package content

External microphone
M4 screws for installation
User instructions

Data sheet

Weight: 48 g
48 g
Power: DC12V / 40 mA
Sensitivity: -34 dB
Dimensions: 20 (H) x 40 (Ø) mm
Power supply: DC12V / 40 mA
Material: Aluminium
Output Impedance: 600 ohm (unbalanced)
Working temperature: -30º C ~+70º C
Frequency response: 80 Hz ~ 16 KHz
Output signal: 2.5 Vpp / 88dBSPL
Signal Output: 2.5 Vpp / 88dBSPL
Cobertura: 10 ~70 m2
Patrón de direccionalidad: Omnidireccional
Relación señal / ruido: SNR 58 dB (re 94dBSPL ﹦ 1Pa@1KHz)
Rango dinámico: 74 dB
Presión sonora máxima sostenible: 110 dBSPL (1KHz, THD 1%)
Tipo de micrófono: Condensador de film
Coverage: 10 ~70 m2
Directionality Pattern: Omnidirectional
Signal-to-noise ratio: SNR 58 dB (re 94dBSPL ﹦ 1Pa@1KHz)
Dynamic range: 74 dB
Maximum sustainable sound pressure: 110 dBSPL (1KHz, THD 1%)
Microphone Type: Film condenser
