Data sheet

Weight

7.85 g
90 g
270 g

Power

3V (CR2032)
DC 12 V / 400 mA, PoE IEEE802.3af

Temp. operation

-30º C ~ +50º C

Degree of protection

Weatherproof IP67

Units

1 unit

Dimensions

28.5 mm (H) x 10.3 (Ø) mm
182 (H) x 27 (W) x 20 (D) mm
186.3 mm (D) x 70 (Ø) mm

Transfer Rate

32 Kbps ~ 8 Mbps

Operating temperature

-18 ~ +55ºC

Material

Metal and Plastic

Range

HiWatch Series

Audio

No

Nominal voltage

12.0 V

Nominal capacity

53 mAh

Security

CAT II 600V/ CAT III 300V CAT III [%VAR%]

Image sensor

1/2.8\" Progressive Scan CMOS

Minimum illumination

Colour 0.01 Lux @ F1.2 | Colour 0.028 Lux @ F2.0

Lens

4 mm

Maximum resolution

2 Megapixel (1920x1080)

Infrared lighting

0 Lux / EXIR LEDs IR (30 m)

Image improvements

DWDR, BLC, 3D-DNR, AGC, Motion detection

Day / Night

Removable mechanical ICR filter

Alarms

No

Internal memory

No

Remote access

Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200

Main Stream rate

1080p / 720p (25 FPS)

Extra Stream rate

D1 / CIF (1 ~ 25 FPS)

Compression

H.265/H.264

Network interface

Ethernet 10/100 BaseT

Interoperability

ONVIF, PSIA, CGI, ISAPI

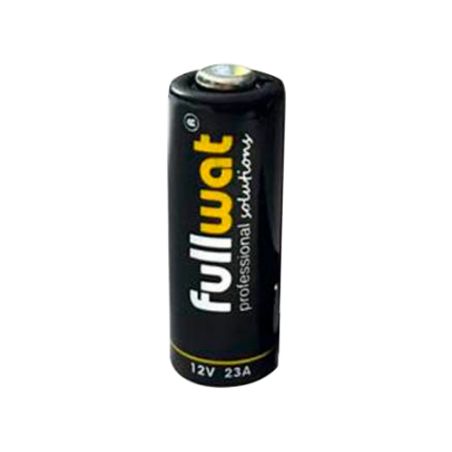

Nomenclature

23A / A23 / MN21 / GP23A / 8LR932

Type of battery

Alkaline non-rechargeable

Form

Cylindrical

Chemical Composition

Zn-MnO2

Resistance measuring range

SCAN Mode: 3MΩ ±(1%+3) AUTO Mode: 30MΩ ±(1%+3)

Capacitance measuring range

SCAN Mode: 300μF ±(3%+5) AUTO Mode: 3mF ±(3%+5)

Display accounts

Up to 4000

Display dimensions

28mm x 14mm

Diode test

Yes, it is available

Continuity test

Yes, it is available

Measuring range DC and AC voltage

DC 300V ±(1%+3) AC 300V ±(1%+4)

Electric field (EF) detection function

Yes, it is available

Input impedance for DC

≥10MΩ
