SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 105SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 3637 AND id_lang = 1 PD-250-18 - Power supply distribution box, 1 AC input 110 V ~ 220…
  • -35%
PD-250-18 - Power supply distribution box, 1 AC input 110 V ~ 220…
search
  • PD-250-18 - Power supply distribution box, 1 AC input 110 V ~ 220…

PD-250-18 - Power supply distribution box, 1 AC input 110 V ~ 220…

Power supply distribution box - 1 AC input 110 V ~ 220 V - 18 outputs - Resettable fuse protection - Output voltage 12 V / 250 W - Metal housing
€58.50 €90.00 Save 35%
Tax included
Reference PD-250-18
Brand Branded
Quantity
Available Now

Free shipping
PD-250-18 - Power supply distribution box, 1 AC input 110 V ~ 220…

PD-250-18 - Power supply distribution box, 1 AC input 110 V ~ 220…

€58.50 €90.00 Save 35%

You might also like

Professional power supply distribution box. It functions as a centralized power supply for several cameras or other security devices offering individualized protection.

It provides a total power of 250 W (20 A) which is distributed evenly between 18 DC voltage outputs of 12 V with clamp connection. The source is powered by an AC outlet (AC 110 ~ 220 V).

It has several protection systems to ensure that the installation is working perfectly:

  • - Pipe fuse of 5A for general protection at the source input
  • - PTC resettable fuse for each individual output up to 1100 mA
  • - Short-circuit protection
  • - Protection against overvoltage and surges

It incorporates an EMI filter to avoid electromagnetic interference to other devices or nearby cables. Due to the correction of the power factor (PFC) the electrical cost of reactive energy in industrial facilities is avoided. Low noise output for a clean and stable operation of connected devices. Adjustable output voltage between DC 12~14.8 V.

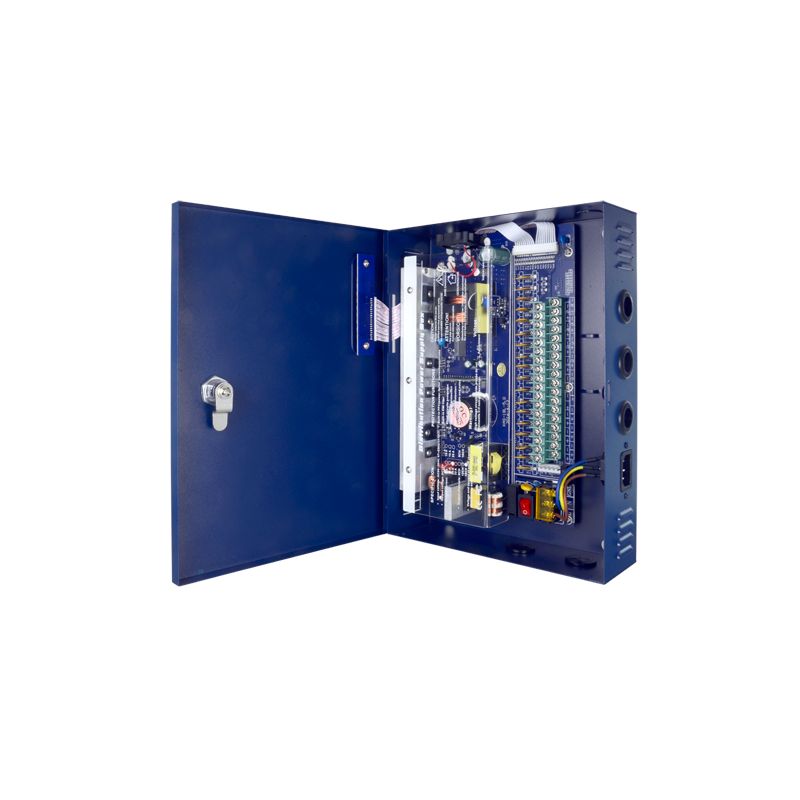

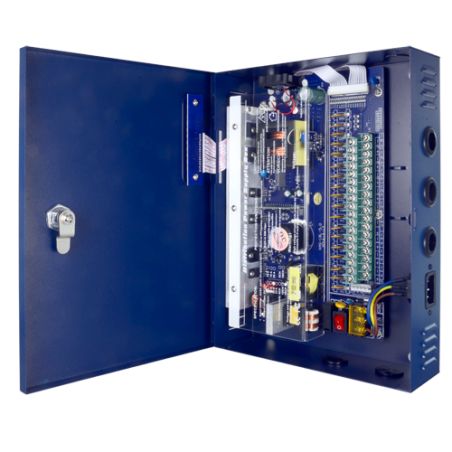

The power supply is housed in a metal cabinet with insulated cable grommets and key lock for added protection. On the front of the box there is an indicator with status LEDs for each output in order to facilitate both installation and maintenance.

Features

  • Power supply distribution box
  • 1 AC input 110 V ~ 220 V
  • 18 outputs
  • Resettable fuse protection
  • Output voltage 12 V / 250 W
  • Metal housing

Specs

Power supply inputAC 96 V - 264 V 50/60 Hz
Power supply outputs18 outputs via copper pair (clamp)
Output voltageDC 12~14.8 V
Total power250 W (20 A)
Max intensity. per output1100 mA
ProtectionShort circuit / Over voltage / Current peaks
FilteredEMI / PFC
Temp. operation-20º C ~ +50º C
Dimensions285 (H) x 210 (W) x 67 (D) mm
Weight2345 g

Package content

  • - Power distribution box with 18 outputs 12 V
  • - Key for security locking
  • - Spare fuse 5A
  • - Template for installation
  • - 4 dowels and 4 screws for anchoring
  • - User instructions

Data sheet

Weight
2345 g
2345 g
Temp. operation
-20º C ~ +50º C
Protection
Short circuit / Over voltage / Current peaks
Dimensions
285 (H) x 210 (W) x 67 (D) mm
Power supply input
AC 96 V - 264 V 50/60 Hz
Power supply outputs
18 outputs via copper pair (clamp)
Output voltage
DC 12~14.8 V
Total power
250 W (20 A)
Max intensity. per output
1100 mA
Filtered
EMI / PFC
