PD-180-12 - Switching Power Supply, Input AC 100~240 V, DC Output…
search
  • PD-180-12 - Switching Power Supply, Input AC 100~240 V, DC Output…

PD-180-12 - Switching Power Supply, Input AC 100~240 V, DC Output…

Switching Power Supply - Input AC 100~240 V - DC Output 12 V / 15 A (180W) - Adjustable output 11,5~13,9 V - Protected against surges - and current peaks
€29.90 €46.00 Save 35%
Tax included
Reference PD-180-12
Brand Branded
Quantity
Last items in stock

Free shipping
PD-180-12 - Switching Power Supply, Input AC 100~240 V, DC Output…

PD-180-12 - Switching Power Supply, Input AC 100~240 V, DC Output…

€29.90 €46.00 Save 35%

You might also like

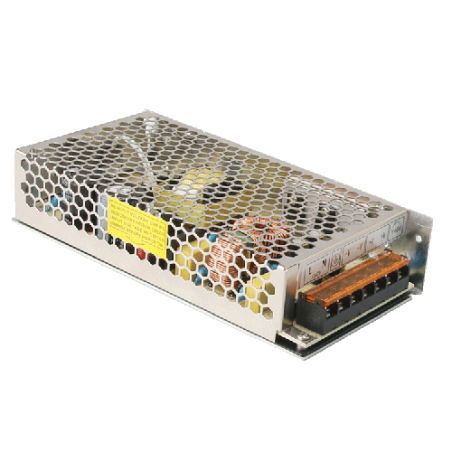

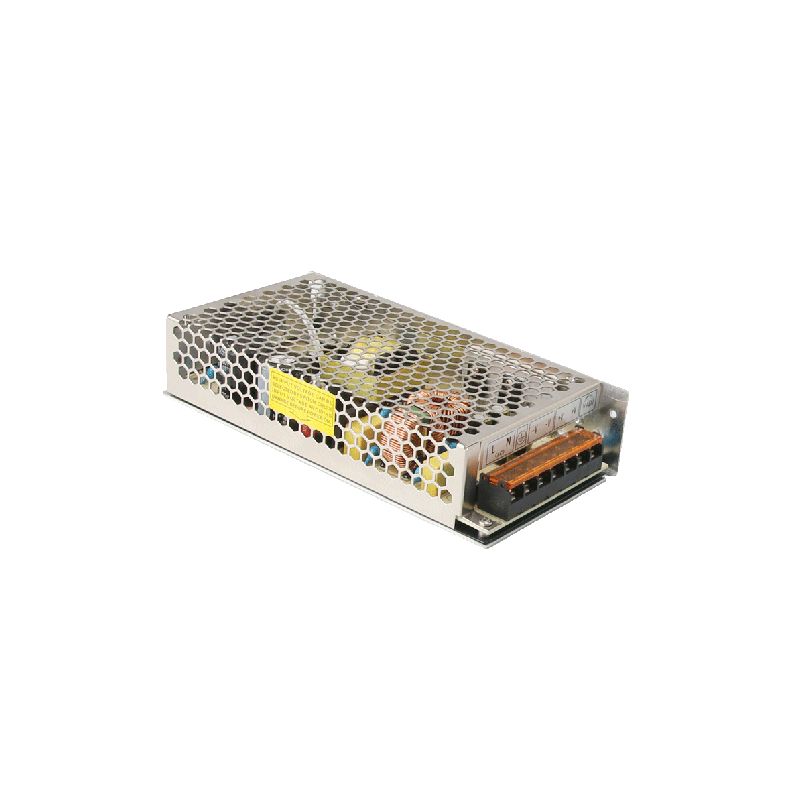

AC/DC switchable power supply. Precise voltage stabilization. Grid casing for better heat dissipation.

Its input is connected directly to alternating current (AC 100~240 V) and provides continuous DC power 12 V / 15 A. With two outputs. The voltage can be adjusted manually in a range between 11,5 V ~ 13,9 V.

It has protection systems against short circuit, overvoltage and current peaks to ensure a problemless performance of the installation.

Features

  • Switching Power Supply
  • Input AC 100~240 V
  • DC Output 12 V / 15 A (180W)
  • Adjustable output 11,5~13,9 V
  • Protected against surges
  • and current peaks

Specs

Input voltageAC 100~240 V
Input frequency47~63 Hz
Output VoltageDC 12 V (typically)
Output voltage rangeAdjustable 11,5 V ~ 13,9 V
Output power180W
Output current15 A
Working temperature-20º C ~ +55º C
Dimensions199 x 98 x 42 mm
Weight580 g

Package content

  • Power Supply DC 12 V / 15 A

Data sheet

Weight
580 g
580 g
Dimensions
199 x 98 x 42 mm
Output power
180W
Output voltage
DC 12 V (typically)
Input voltage
AC 100~240 V
Input frequency
47~63 Hz
Output voltage range
Adjustable 11,5 V ~ 13,9 V
Output current
15 A
Working temperature
-20º C ~ +55º C
