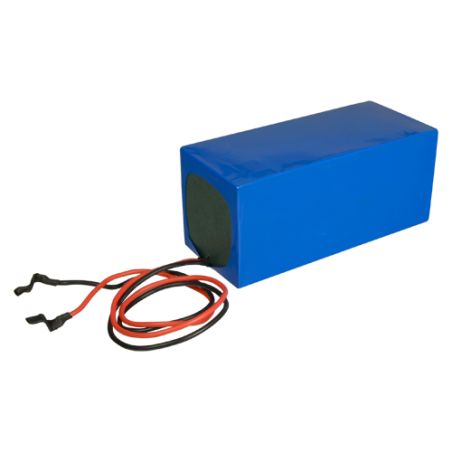

BAT12100-LIFEPO4 - Rechargeable battery, Lithium Technology LiFePO4,…
Rechargeable battery - Lithium Technology LiFePO4 - Voltage 12 V - Capacity 10.0 AH - Long lifetime - For backup or direct use
€52.00
€80.00
Save 35%
Tax included
Reference
BAT12100-LIFEPO4
Brand
Branded
BAT12100-LIFEPO4 - Rechargeable battery, Lithium Technology LiFePO4,…
€52.00
€80.00
Save 35%
- Maintenance-free lithium battery
- LiFePO 4
- Use at stand-by 12.8 V
- Maximum initial intensity 5.0 A
- Capacity 10000 mAh
- Connection terminal F1
- Long lifetime
- Especially suitable for installations in distribution boxes
Features
- Rechargeable battery
- Lithium Technology LiFePO4
- Voltage 12 V
- Capacity 10.0 AH
- Long lifetime
- For backup or direct use
Specs
| Nominal voltage | 12.8 V |
| Nominal capacity | 10 Ah |
| Total power | 128 Wh |
| Cell type | LiFePO4 (LF32700-5.0Ah) |
| Internal Impedance | 60mΩ |
| Load voltage | 14.60V |
| Discharge cut-off voltage | 9.20V |
| Standard charging current | 3A |
| Maximum charge current | 5A |
| Standard discharge current | 1.2A |
| Maximum discharge current | 20A (maximum 10s) |
| Service life | 2000 charging and discharging cycles |
| Connection type | F1 |
| Dimensions | 78 (H) x 67 (W) x 135 (D) mm |
| Weight | 1200 g |
Package content
- Lithium Backup Battery
Data sheet
- Weight
- 1200 g
1200 g - Dimensions
- 78 (H) x 67 (W) x 135 (D) mm
- Nominal voltage
- 12.8 V
- Nominal capacity
- 10 Ah
- Connection type
- F1
- Total power
- 128 Wh
- Cell type
- LiFePO4 (LF32700-5.0Ah)
- Internal Impedance
- 60mΩ
- Load voltage
- 14.60V
- Discharge cut-off voltage
- 9.20V
- Standard charging current
- 3A
- Maximum charge current
- 5A
- Standard discharge current
- 1.2A
- Maximum discharge current
- 20A (maximum 10s)
- Service life
- 2000 charging and discharging cycles
Rechargeable battery - Lithium Technology LiFePO4 - Voltage 12 V - Capacity 10.0 AH - Long lifetime - For backup or direct use
