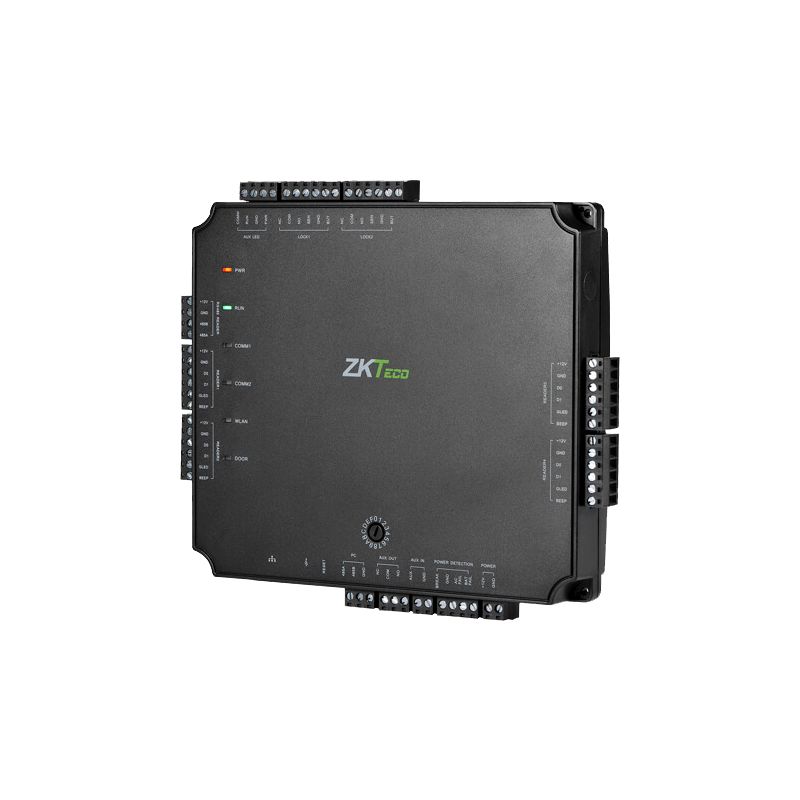

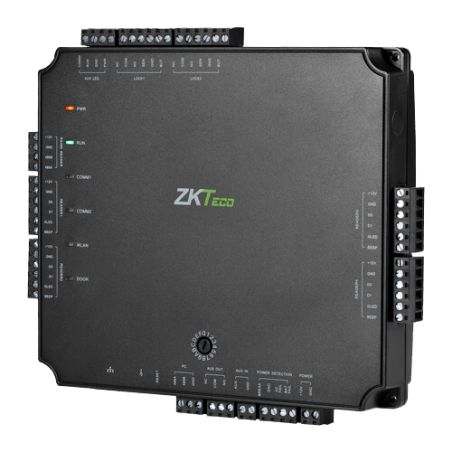

Zkteco ZK-ATLAS-200 - PoE access controller, Access with card or password,…

PoE access controller - Access with card or password - TCP/IP | Connection to slave controller - 4 Wiegand inputs 26 | 4 OSDP Inputs | Aux - Relay output for 2 doors and Aux - Embedded Atlas Series software and mobile App
€440.00
Tax included
Reference HS-ESSD-T100F-512G-B16
Brand Zkteco
Quantity
In Stock

Free shipping
Dahua HAC-ME2241C-W - HDCVI 2 Mpx Starlight Camera, Active deterrence with…

Zkteco ZK-ATLAS-200 - PoE access controller, Access with card or password,…

€440.00

You might also like

  • ZKTeco
  • RFID Access Controller
  • Management of 2 doors
  • Capacity 5.000 users and 10.000 records
  • Supports up to 4 Wiegand readers and 4 by OSDP (Card Reader)
  • TCP/IP, Wiegand and OSDP communication
  • Power by PoE
  • Input of 2 push buttons, 2 door sensors and 1 auxiliary input
  • 2 Relay Outputs and 1 auxiliary
  • Relay configuration NO/NC
  • Integrated Atlas Series software
  • Web browser access to software for access control management and reports
  • ZK Atlas mobile App for user, event, alarm and remotely open management
  • Connection of Atlas slave controllers with access from a unique IP to 84 gates

Features

  • PoE access controller
  • Access with card or password
  • TCP/IP | Connection to slave controller
  • 4 Wiegand inputs 26 | 4 OSDP Inputs | Aux
  • Relay output for 2 doors and Aux
  • Embedded Atlas Series software and mobile App

Specs

BrandZKTeco
ModelAtlas-200
CapacityUp to 5.000 users
Records10.000 registers
Identification modesCard and/or passwords
Proximity cardEM RFID (125 KHz) / MF (13,56 MHz)
CommunicationTCP/IP | RS485 | OSDP | Wiegand
Baud rate9.600bps for OSDP
Outputs2 x relay output, 1 x auxiliary output
Inputs4 x Wiegand, 2 x Door sensor, 2 x Open button, OSDP (up to 4 readers), 1 x Auxiliary input
Advanced featuresAnti-Passback, First Card, Multi-Card and Maps
SoftwareEmbedded Atlas Series with browser-based access
Secondary controllersConnection of up to 20 secondary controllers via IP with a control of up to 84 doors
Compatible web browsersGoogle Chrome, Mozilla Firefox, Microsoft Edge
Mobile AppZK Atlas for iOS and Android
PowerDC 12 V / 3A max | PoE power supply | Non-powered locks with controller
Temp. operation0º C ~ +55 C
Dimensions197 (W) x 171 (H) x 30 (D) mm

Package content

  • ZKTeco Access Controller
  • Mounting material
  • User instructions

Data sheet

Weight
410 g
Power
4.2-16 V DC
DC 12 V / 3A max | PoE power supply | Non-powered locks with controller
DC 12 V / 5.5W max
Resolution
1080p (1920x1080) at 25 FPS
Temp. operation
+5º C ~ 40º C
-20º C ~ 60º C
0º C ~ +55 C
Degree of protection
Weatherproof IP67
Housing material
ABS plastic
Internal security
Tamper-resistant opening
Dimensions
144.7 (d) x 76.7(An) x 146.4(Al)mm
163 (H) x 163 (W) x 36 (D) mm
197 (W) x 171 (H) x 30 (D) mm
Capacity
Up to 5.000 users
Backup battery
Duration up to 16 hours
Internal siren
No
Records
10.000 registers
Identification modes
Card and/or passwords
Proximity card
EM RFID (125 KHz) / MF (13,56 MHz)
Inputs
4 x Wiegand, 2 x Door sensor, 2 x Open button, OSDP (up to 4 readers), 1 x Auxiliary input
Outputs
2 x relay output, 1 x auxiliary output
Range
HDCVI 1080p ULTRA Active Deterrence
RF frequency
868 MHz. Protocol via Jeweller wireless technology
Communication
Ethernet / Dual SIM 2G (GPRS)
TCP/IP | RS485 | OSDP | Wiegand
Maximum devices
100
Number or users
Up to 50
Alarm
1 channel
Compatibility
Not compatible with ocBridge and uartBridge
Video output
1 x BNC HDCVI
Audio
Integrated microphone
Image sensor
1/2.8\" Progressive CMOS Starlight
Minimum illumination
0 Lux / IR Matrix LEDs (20 m)
Basic functions
OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions
WDR, Smart IR, SC, 3D-NR, AWB, AGC, BLC
Lens
2.8 mm
Software
Embedded Atlas Series with browser-based access
Output current
1.5 A
PIR detection
Range: 15m | Angle (110º) | Alarm to recorder
Baud rate
9.600bps for OSDP
Advanced features
Anti-Passback, First Card, Multi-Card and Maps
Other functions
Deterrent light with built-in siren upon motion detection
Video integration
Up to 25 IP cameras or video recorder channels
Connection with CRA
Contact ID / SIA
Average consumption per hour
95 mA
Maximum input current
2.2 A (@4.2 V DC) / 0.5 A (@16 V DC)
Secondary controllers
Connection of up to 20 secondary controllers via IP with a control of up to 84 doors
Compatible web browsers
Google Chrome, Mozilla Firefox, Microsoft Edge
Mobile App
ZK Atlas for iOS and Android
