UPM 1400 Universal Field Meter for DVB-S/S2/T/T2/C
The TRIAX UPM 1400 portable level meter is your ideal companion for everyday use: an economical all-rounder with extensive basic equipment for reliable measurement results. Operation is extremely intuitive and provides you quickly with measurements in the SAT and TV range. The UPM 1400 covers all transmission standards.
€30.31
Tax included
Reference
triax-304579
Brand
Triax
The TRIAX UPM 1400 portable level meter is your ideal companion for everyday use: an economical all-rounder with extensive basic equipment for reliable measurement results. Operation is extremely intuitive and provides you quickly with measurements in the SAT and TV range. The UPM 1400 covers all transmission standards. Measurement results can be archived and logged via the USB interface.
Characteristics
- Supports DVB-S / S2, DVB-T / T2 and DVB-C with BER and MER evaluation.
- Large 5 "high resolution TFT screen.
- Viewing live TV images in high definition, including support for the DVB-T2 codec, H.265 / HEVC
- Spectrum analyzer and constellation diagram.
- Measurement of BER and MER in COFDM, QAM and QPSK.
- Automatic satellite detection.
- Supports Unicable 1 and 2 (SCR / dSCR) standards
- DiSEqC-SCAN function for reliable satellite detection.
- USB interface for recording measurement data and software updates.
- HDMI output.
- AV input.
- Powerful lithium-ion battery with up to 4 hours of operating time.
Specifications
| Properties | |
|---|---|
| Supported audio formats | MPEG-2 layer I and II (music camera), MPEG4, AAC, Dolby Digital (AC-3) |
| Supported video formats | MPEG1, MPEG-2 MP @ ML, H.264, VC1, DV, MPEG-4, H.265 (1080p at 60 fps) |
| Frequencies | |
| Measurement range A | DVB-S / S2 |
| Measurement range B | DVB-T / T2 |
| Measurement range C | DVB-C |
| Frequency range | 50 ... 2150 MHz |
| VHF / UHF sensitivity measurement range | 35 ... 105 dBµV |
| SAT measuring range sensitivity | 35 ... 95 dBµV |
| Electrical data | |
| Characteristic impedance / impedance | 75 Ω |
| General data | |
| Remote supply voltage - DVB-T / SAT | DVB-T 5V, 12-24V / DVB-S 13V, 18V, LNB test 12V-20V in 0.2V steps |
| DC operating voltage | 15 VDC VDC |
| PSU / adapter INFORMATION | Including European plug (CEE 7/17) |
| Adapter / PSU item number | 304527 |
| Mechanical data | |
| Product Dimensions (H x D x W) | 145 x 220 x 50 mm |
| Packing quantity | 1 |
| Gross height | 0.125 meters |
| Gross width | 0.282 meters |
| Gross depth | 0.185 meters |
| volume | 0.007 m3 |
| Net weight | 0.850 kg |
| Packing weight | 0.050 kg |
| Weight | 0.900 kg |
Data sheet
- Weight
- Transmitter: 87g, Receiver: 51g
- Power
- Battery 9V
- Dimensions
- Transmitter: 102 (H) x 62 (W) x 28 (Fo) mm, Receiver: 102 (H) x 37 (W) x 28 (D) mm
- Capacity
- 128GB
- Operating temperature
- -25º ~ 85º
- Compatibility
- Compatible con MicroSDHC, MicroSDXC, MicroSDHC UHS-I y MicroSDXC UHS-I
Compatible with MicroSDHC, MicroSDXC, MicroSDHC UHS-I and MicroSDXC UHS-I - Video format
- MicroSD
- Manufacturer
- Hikvision
- Display
- Capacity, voltage, internal resistance, status
- Class
- 10 U1 V30
- Max. velocidad de lectura
- 100 MB/s
- Formato
- MicroSD
- Sistema de Archivos
- FAT32
- Max velocidad de escritura
- 85 MB/s
- NAND Flash
- TLC
- Max. read speed
- 100 MB/s
- File System
- FAT32
- Max write speed
- 85 MB/s

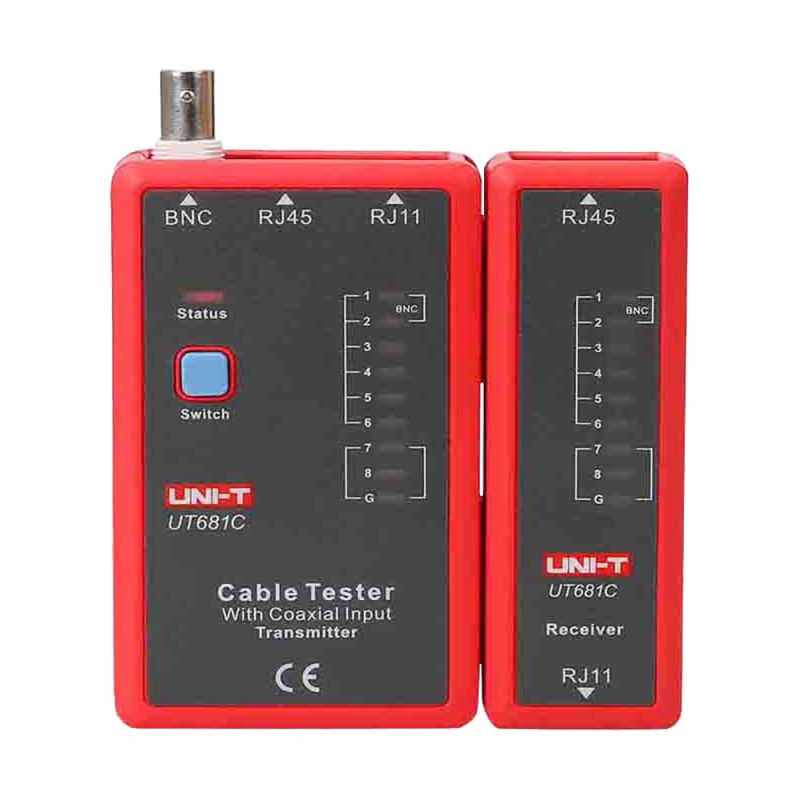

- Cables
- RJ45/RJ11/BNC (It is necessary to use an adapter RJ45-BNC)
- Testing for short circuits, crosses, open circuits, etc
- Yes, it is available
- Ethernet Cable: shielded / unshielded test
- Yes, it is available
