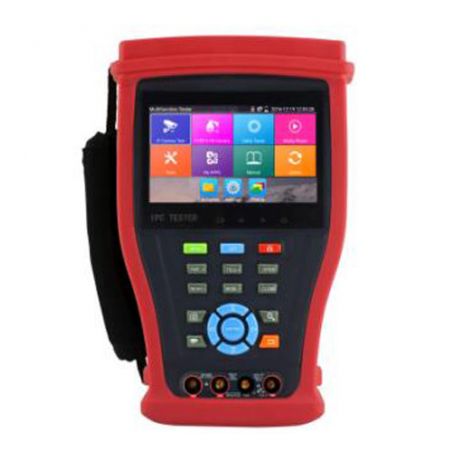

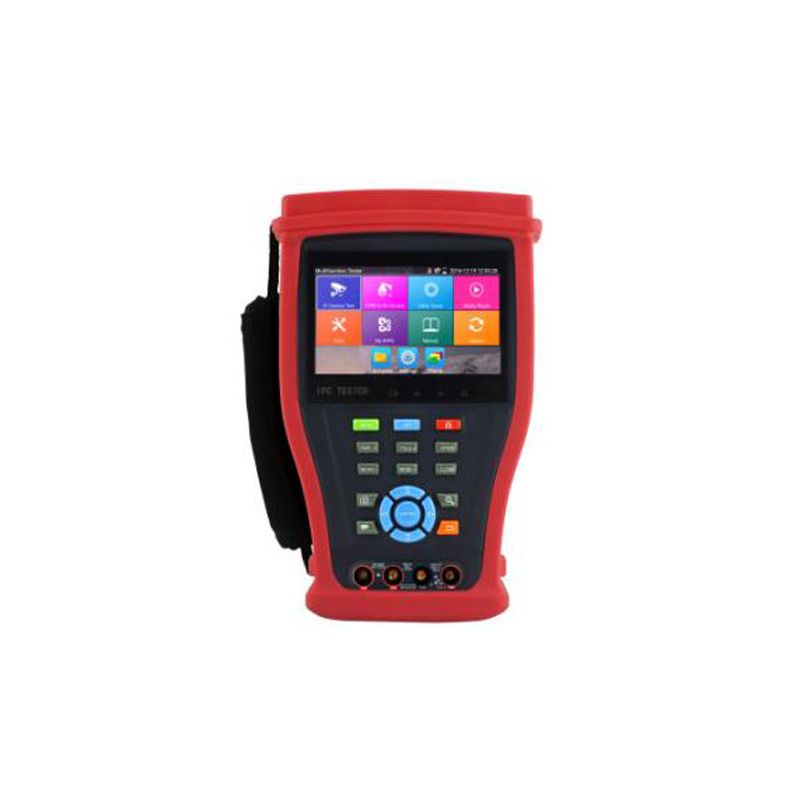

Bysecur BSC03552 Universal CCTV Tester up to 4K (Analog CVBS, IP ONVIF, AHD, HD-TVI, HD-CVI)

• Universal CCTV Tester up to 4K (Analog CVBS, IP ONVIF, AHD, HD-TVI, HD-CVI)
• H.264 and H.265, 4K video display via mainstream
• 4.3" touch screen
• IP, HD and analog video
• ONVIF and WIFI
• Digital multimeter

Applications:

Analog camera test

IP camera test, supports 4K, H.264 and H.265

8MP TVI Test, 8MP CVI Test, 8MP AHD Test

Digital multimeter

HDMI input and output

Characteristics:

Optional menu in English, Polish, Italian, Spanish, French and other languages

4.3 inch IPS touch screen, 960*540 resolution

H.264 and H.265, 4K video display via mainstream

Fast video, just one key to detect all network cameras and auto display

Built-in WiFi to receive images and data from the network, create a WiFi hotspot, support browser

Fast Onvif, auto login and display camera image, activate Hikvision camera and also can create test report

8MP TVI Test, 3840 x 2160, 15 FPS, 4xzoom, video record and playback, coaxial PTZ control and call camera OSD menu

8MP AHD Test, 3840x2160, 15FPS, 4xzoom, video record and playback, coaxial PTZ control and call camera OSD menu

8MP CVI Test, 3840 x 2160, 12.5/15 FPS, 4xzoom, video record and playback, coaxial PTZ control and call camera OSD menu

HDMI input, 720×480p/720×576p/1280×720p/1920×1080p/1024×768p/1280×1024p/1280×900p/1440×900p image display, recording and snapshot

Test IP and analog cameras at the same time, test analog to digital converter through dual IP and CVBS test window

CVBS loop test, the tester sends and receives the signal from the color bar generator to test the BNC cable

Tester traffic monitoring "Lan port", display network port or wifi connection in real time, upload and download speeds and other network

parameters

Support user self-installation apps, for example, install android version apps, like skype, wechat, etc.

4K video files and MKV/MP4 media files are played

Fast office applications (Excel, Word, ppt format), can edit the documents

Screen lock, password lock and pattern lock are optional

TesterPlay (screen projection): Tester, Android mobile phone version and PC screen at the same time

Shortcut button, drop-down menu, you can select PoE power, IP setting, wlan switch, HDMI in function etc. in any interface

Enhanced cable tester, UTP cable, telephone cable, as well as other cables ordering and connectivity testing, the test report can be saved.

Screen management, basic mode and normal mode for option, move function icons, create new directory, theme and background

configuration

Display onvif IP camera image, onvif PTZ controller, IP discovery.

Supports 80+ custom IP camera protocols

Support IP camera and RTSP app to view IP camera image

Network Bandwidth Test

FTP server, static IP address, DHCP, simultaneously test IP cameras from different segments

24W PoE power supply for IP camera

HDMI signal output, support 1080P

DC12V 2A power output for camera

USB power output 5V 2A t

LED lamp, easy to operate at night

Removable Micro SD card

Adjustable LCD screen brightness/contrast/color saturation

Automatically adapts and displays NTSC/PAL video format

Improved color bar generator, when receiving color from video

4x Zoom, video image can be enlarged to view details, easy to use (for both analog and IP v

Video recording and playback (for both analog and IP video)

Take a snapshot and save the current image as a JPG file on the SD card (for both analog and IP video)

Ping test, test the ethernet port of IP camera or other network devices if they work normally, and the IP address when

IP address scanning, quickly find the IP address of the connected IP camera and other network devices

Device port flashing, easy to find the PoE switch connected by

frequency.

Link monitor, check if the configuration IP address is occupied.

PTZ address scan, find PTZ camera ID.

Network cable and telephone cable test, display connection sequence and number of

Support RS232, RS485, rate 600～115200bps adjustable

Multi-protocol. Supports more than thirty PTZ protocols. Such as Pelco-P, Pelco-D, Samsung, etc.

PTZ protocol analysis, control protocol command screens to verify RS485 transmission

PTZ Control. Pan/tilt the PTZ unit, zoom in/out the lens, adjust focus, aperture and set preset position

Audio input and output test, test the audio signal from pickup devices, support audio output

Digital multimeter can test voltage, current, resistance and capacitance, continuity test, diode test

Lithium-ion polymer battery. The device employs advanced power control and protection circuit. The device is highly energy efficient, energy efficient.

saving and environmental protection. It can last 10 hours for normal use after charging for 6 hours

Specification

Model No. M-IPC-400E

Signal system NTSC / PAL (automatic selection)
