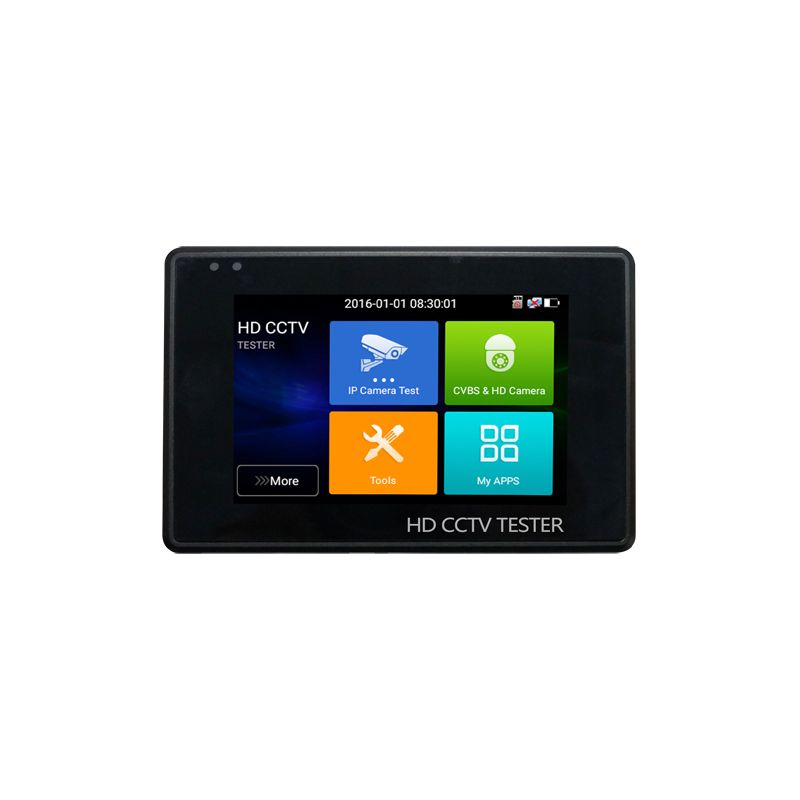

Safire SF-TESTER-ARM-5N1-4K - Multifunctional wrist held CCTV tester, Supports…

Multifunctional wrist held CCTV tester - Supports HDTVI, HDCVI, AHD, CVBS and IP cameras - Tester resolution up to 4K - Colour LCD display 4" - 2400mA Built-in Battery - Easy to use
€169.00 €260.00 Save 35%
Tax included
Reference SF-TESTER-ARM-5N1-4K
Brand Safire
Quantity
Out-of-Stock

Free shipping
  • Safire
  • Multifunctional wrist held CCTV tester for HDTVI, HDCVI, AHD, analogue CVBS and IP cameras
  • LCD 4" touch screen
  • Resolution 800x480
  • Decodes camera images up to 8 MP HDTVI, HDCVI, AHD, CVBS and IP
  • BNC video input
  • Audio inputs/outputs
  • PTZ analyser and controller. Supports multiple protocols
  • Rechargeable lithium battery 7.4V 2.4Ah
  • DC power supply outputs 12 V and PoE power supply
  • Multi-language menu

Features

  • Multifunctional wrist held CCTV tester
  • Supports HDTVI, HDCVI, AHD, CVBS and IP cameras
  • Tester resolution up to 4K
  • Colour LCD display 4"
  • 2400mA Built-in Battery
  • Easy to use

Specs

Brand SAFIRE
Screen IPS 4” resolution 800x480
Formats HDTVI / HDCVI / AHD / Analog / CVBS / IP (4K)
Video settings Brightness, contrast and saturation
Inputs BNC (TVI/CVI/AHD/CVBS), RS485, RJ45 (UTC/SCAN), Audio
Outputs No
PTZ RS485
Communication WiFi, RJ45 10/100/1000M
Cable Tester Independent accessory
Tools Information Tool Cable RJ45 | Hard Drive Capacity Calculation Tool | TDR RJ45 Test
Power Lithium Battery 7.4 V 2400 mAh
Charger DC 12V 3A
Temp. operation -10º C ~ +50º C
Dimensions / Weight 126 mm x 83 mm x 33 mm / 320 g

Package content

  • SAFIRE multifunction CCTV Test Tool
  • Adapter AC/DC 12V / 3.0 A
  • Probes for tester
  • Cables and connectors for tester
  • User instructions

Data sheet

Power
Lithium Battery 7.4 V 2400 mAh
Temp. operation
-10º C ~ +50º C
Screen
IPS 4” resolution 800x480
TFT-LCD 4” resolution 800x480
Inputs
BNC (TVI/CVI/AHD/CVBS), RS485, RJ45 (UTC/SCAN), Audio
Outputs
No
Power supply
Lithium Battery 7.4 V 2400 mAh
Dimensions / Weight
126 mm x 83 mm x 33 mm / 320 g
Communication
WiFi, RJ45 10/100/1000M
Formats
HDTVI / HDCVI / AHD / Analog / CVBS / IP (4K)
Video settings
Brightness, contrast and saturation
PTZ
RS485
Cable Tester
Independent accessory
Charger
DC 12V 3A
Tools
Information Tool Cable RJ45 | Hard Drive Capacity Calculation Tool | TDR RJ45 Test
