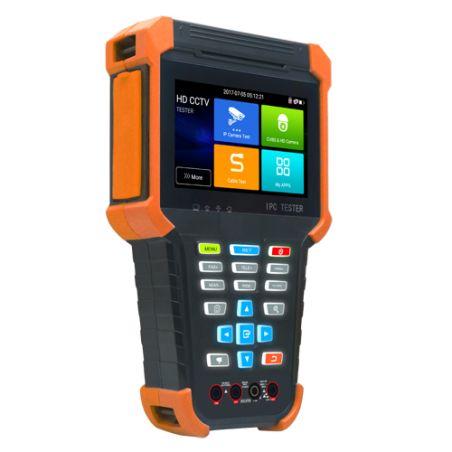

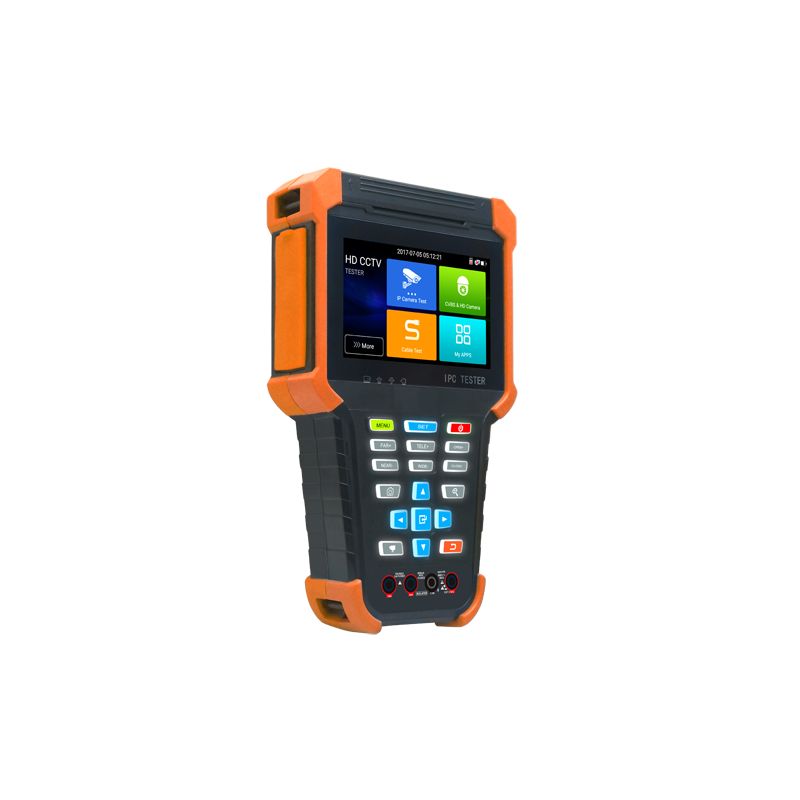

Safire SF-TESTER4-5N1-4K - Multifunctional CCTV Tester, Supports HDTVI, HDCVI,…

Multifunctional CCTV Tester - Supports HDTVI, HDCVI, AHD, CVBS and IP cameras - Tester resolution up to 4K - Colour LCD display 4" - 4000mA Built-in Battery - Easy to use
€370.50 €570.00 Save 35%
Tax included
Reference SF-TESTER4-5N1-4K
Brand Safire
Quantity
Available in 24/48h

Free shipping
Safire SF-TESTER4-5N1-4K - Comprobador CCTV multifuncional, Admite cámaras…

Safire SF-TESTER4-5N1-4K - Multifunctional CCTV Tester, Supports HDTVI, HDCVI,…

€370.50 €570.00 Save 35%
  • Safire
  • Multi-functional CCTV tester for HDTVI, HDCVI, AHD, analogue CVBS and IP cameras
  • LCD 4" touch screen
  • Resolution 800x400
  • Decodes the camera image up to 8 MP (HDTVI / HDCVI), 5 MP (AHD), 2 MP (CVBS) and 4K IP
  • Built-in WiFi
  • Audio inputs/outputs
  • PTZ analyser and controller. Supports multiple protocols
  • UTP Cable Tester
  • Digital multimeter
  • Rechargeable Lithium Battery 7.4V 4Ah
  • DC power supply outputs 12 V and PoE power supply
  • Multi-language menu
  • BNC Video Input/Output (Loop)
  • 1 HDMI input

Features

  • Multifunctional CCTV Tester
  • Supports HDTVI, HDCVI, AHD, CVBS and IP cameras
  • Tester resolution up to 4K
  • Colour LCD display 4"
  • 4000mA Built-in Battery
  • Easy to use

Specs

Brand SAFIRE
Screen IPS 4” resolution 800x480
Formats HDTVI / HDCVI (4K) / AHD (5Mpx) / Analog CVBS (2Mpx) / IP (4K)
Video settings Brightness, contrast and saturation
Inputs BNC (TVI/CVI/AHD/CVBS), RS485, 2x RJ45 (UTC/SCAN), HDMI, Audio
Outputs 1xAudio, 1x12VDC / 2A, 1xPoE
Analog video test Colour bar generator
TDR Test YES (Only for cable RJ45)
Digital Multimeter Voltage, Current, Resistance, Diode (Conductivity) and Capacity
PTZ RS485
Communication WiFi, RJ45 10/100/1000M
Cable Tester Independent accessory
Power Lithium Battery 7.4 V 4000 mAh
Charger DC 12V 3A
Temp. operation -10º C ~ +50º C
Dimensions / Weight 240 mm x 123 mm x 38 mm / 600 g

Package content

  • SAFIRE multifunction CCTV Test Tool
  • Adapter AC/DC 12V / 3.0 A
  • Protective Transportation Case
  • Probes for tester
  • Cables and connectors for tester
  • User instructions

Data sheet

Power
Lithium Battery 7.4 V 4000 mAh
Temp. operation
-10º C ~ +50º C
Screen
IPS 4” resolution 800x480
TFT-LCD 4” resolución 800x420
Inputs
BNC (TVI/CVI/AHD/CVBS), RS485, 2x RJ45 (UTC/SCAN), HDMI, Audio
Outputs
1xAudio, 1x12VDC / 2A, 1xPoE
Power supply
Lithium Battery 7.4 V 4000 mAh
Dimensions / Weight
240 mm x 123 mm x 38 mm / 600 g
Communication
WiFi, RJ45 10/100/1000M
Formats
HDTVI / HDCVI (4K) / AHD (5Mpx) / Analog CVBS (2Mpx) / IP (4K)
Video settings
Brightness, contrast and saturation
PTZ
RS485
Digital multimeter
Voltage, Current, Resistance, Diode (Conductivity) and Capacity
Cable Tester
Independent accessory
Charger
DC 12V 3A
Test de vídeo analógico
Generador de barra de colores
Test TDR
Si
Analog video test
Colour bar generator
TDR Test
YES (Only for cable RJ45)
Yes
