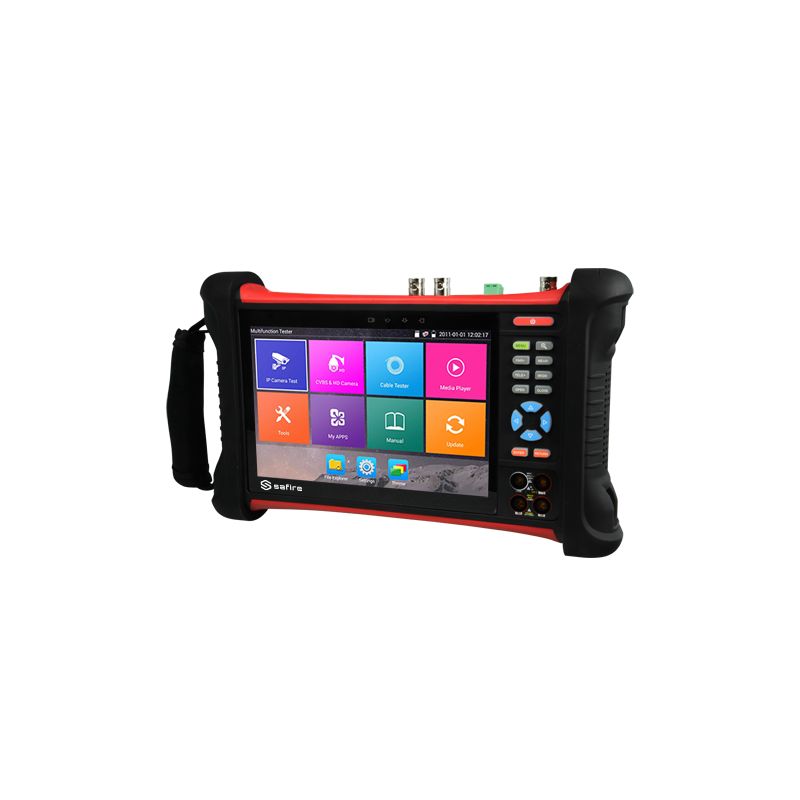

Safire SF-TESTER7-5N1-4K - Comprobador CCTV multifuncional, Admite cámaras…
search
  • Safire SF-TESTER7-5N1-4K - Comprobador CCTV multifuncional, Admite cámaras…

Safire SF-TESTER7-5N1-4K - Multifunctional CCTV Tester, Supports HDTVI, HDCVI,…

Multifunctional CCTV Tester - Supports HDTVI, HDCVI, AHD, CVBS and IP cameras (4K) - Colour LCD display 7" - Test of video, audio, UTP and TDR cables - Built-in battery 5000 mAh - WiFi connection / Digital multimeter
€559.00 €860.00 Save 35%
Tax included
Reference SF-TESTER7-5N1-4K
Brand Safire
Quantity
Available in 24/48h

Free shipping
Safire SF-TESTER7-5N1-4K - Comprobador CCTV multifuncional, Admite cámaras…

Safire SF-TESTER7-5N1-4K - Multifunctional CCTV Tester, Supports HDTVI, HDCVI,…

€559.00 €860.00 Save 35%
  • Safire
  • Multi-functional CCTV tester for HDTVI, HDCVI, AHD, analogue CVBS and IP cameras
  • LCD 7" touch screen
  • Resolution 1920x1200
  • Decodes camera image up to 4K (HDTVI / HDCVI / AHD / IP)
  • Built-in WiFi
  • Audio Input/Output
  • PTZ analyser and controller. Supports multiple protocols
  • UTP Cable Tester
  • Digital multimeter
  • Micro SD card of 8 GB for recording
  • Rechargeable lithium battery 7.4V 5Ah
  • DC power supply outputs 12 V and PoE power supply
  • Multi-language menu
  • BNC and HDMI video Input/Output
  • TDR function that can detect cable faults and the distance at which the fault is located

Features

  • Multifunctional CCTV Tester
  • Supports HDTVI, HDCVI, AHD, CVBS and IP cameras (4K)
  • Colour LCD display 7"
  • Test of video, audio, UTP and TDR cables
  • Built-in battery 5000 mAh
  • WiFi connection / Digital multimeter

Specs

Brand SAFIRE
Screen TFT-LCD 7” resolution 1920x1200
Formats HDTVI / HDCVI / AHD / Analog CVBS / IP (4K)
Video settings Brightness, contrast and saturation
Inputs BNC (TVI/CVI/AHD/CVBS), RS485, 2x RJ45 (UTC/SCAN), HDMI (4K 30fps), Audio
Outputs BNC, DC12V 3A, HDMI, Audio
PTZ RS485
Communication WiFi, RJ45 10/100/1000M
Speaker Incorporated
Digital multimeter Voltage, current, resistance, diode and capacity
Video generator Multicolour bar
Cable Tester Independent accessory
TDR Double TDR: UTP and Coaxial cable, to detect cable faults and the distance at which the fault is located
Power Lithium Battery 7.4 V 5000 mAh
Charger DC 12V 2A
Temp. operation -10º C ~ +50º C
Dimensions / Weight 255 mm x 160 mm x 46 mm / 950 g

Package content

  • SAFIRE multifunction CCTV Test Tool
  • Carrying case
  • Adapter AC/DC 12V / 2.0 A
  • Probes for tester
  • Cables and connectors for tester
  • User instructions

Data sheet

Power
Lithium Battery 7.4 V 5000 mAh
Temp. operation
-10º C ~ +50º C
Screen
TFT-LCD 7” resolution 1920x1200
Inputs
BNC (TVI/CVI/AHD/CVBS), RS485, 2x RJ45 (UTC/SCAN), HDMI (4K 30fps), Audio
Outputs
BNC, DC12V 2A, HDMI, Audio
BNC, DC12V 3A, HDMI, Audio
BNC, DC12V 3A, HDMI, Audio
Power supply
Lithium Battery 7.4 V 5000 mAh
Dimensions / Weight
240 mm x 143 mm x 35 mm / 1200 g
255 mm x 160 mm x 46 mm / 950 g
Communication
WiFi, RJ45 10/100/1000M
Formats
HDTVI / HDCVI / AHD / Analog CVBS / IP (4K)
Video settings
Brightness, contrast and saturation
PTZ
RS485
Speaker
Incorporated
Digital multimeter
Voltage, current, resistance, diode and capacity
Video generator
Multicolour bar
Cable Tester
Independent accessory
Charger
DC 12V 2A
TDR
Double TDR: UTP and Coaxial cable, to detect cable faults and the distance at which the fault is located
