SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 105SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2933 AND id_lang = 1 BA608P-HD - Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS), 8 passive…
  • -35%
BA608P-HD -
search
  • BA608P-HD -

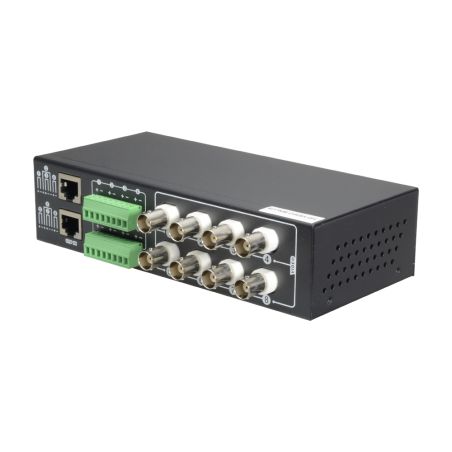

BA608P-HD - Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS), 8 passive…

Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS) - 8 passive channels - Includes 8 BA612P-HAC - BNC and RJ45 connection - Range: 180 ~ 440 m - Rack mount possibility 19"
€42.90 €66.00 Save 35%
Tax included
Reference BA608P-HD
Brand Branded
Quantity
Available Now

Free shipping
BA608P-HD -

BA608P-HD - Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS), 8 passive…

€42.90 €66.00 Save 35%
  • Balun (transceiver)
  • Optimized for HD video: HDTVI / HDCVI / AHD and CVBS
  • 8 channels
  • Passive
  • BNC/RJ45
  • Video
  • Maximum range 440 m
  • Includes 8 individual baluns BA612P-HAC to the side of the camera

Features

  • Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS)
  • 8 passive channels
  • Includes 8 BA612P-HAC
  • BNC and RJ45 connection
  • Range: 180 ~ 440 m
  • Rack mount possibility 19"

Specs

Input Tx / Output Rx 8 female BNC connectors for video
Output Tx / Input Rx 2 connectors RJ45 or 8 clamp connectors for UTP cable CAT5
Bandwidth DC up to 42 MHz
Video format NTSC, PAL, SECAM
Impedance BNC 75 Ω, UTP 100 Ω
Distance HDTVI 190/190/180 m (720p/1080p/5Mpx), HDCVI 440/230/230 m (720p/1080p/4Mpx) and AHD 320/250/200 m (720p/1080p/5Mpx)
Power Passive (not required)
Temp. Functioning -20 ºC ~ 70º C
Dimensions 45 (H) x 180 (W) x 85 (D) mm
Weight 580 g

Package content

  • Balun 8 channels
  • Installation material
  • 8 baluns BA612P-HAC
  • Instructions

Data sheet

Weight
580 g
Power
Passive (not required)
Dimensions
45 (H) x 180 (W) x 85 (D) mm
Power supply
Passive (not required)
Impedance
BNC 75 Ω, UTP 100 Ω
Input Tx / Output Rx
8 female BNC connectors for video
Output Tx / Input Rx
2 connectors RJ45 or 8 clamp connectors for UTP cable CAT5
Bandwidth
DC up to 42 MHz
Video format
NTSC, PAL, SECAM
Distance
HDTVI 190/190/180 m (720p/1080p/5Mpx), HDCVI 440/230/230 m (720p/1080p/4Mpx) and AHD 320/250/200 m (720p/1080p/5Mpx)
Temp. Functioning
-20 ºC ~ 70º C
