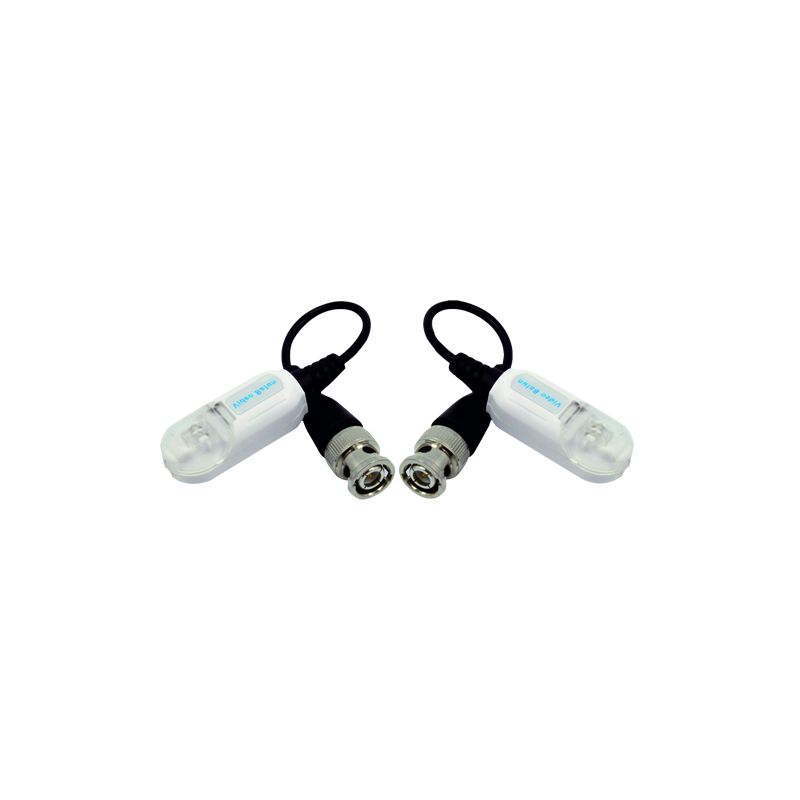

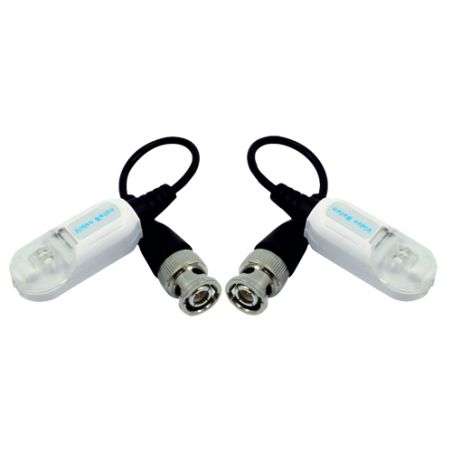

Safire BA609-HAC - SAFIRE UTP passive transceiver, Optimized for HDTVI /…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

SAFIRE UTP passive transceiver - Optimized for HDTVI / HDCVI / AHD - 1 video channel - Passive, connector of 2 pins - Range: 200 ~ 400 m - 2 units | Quick connection

€6.61 €10.17 Save 35%

Tax included

Reference BA609-HAC

Brand Safire

Safire BA609-HAC - SAFIRE UTP passive transceiver, Optimized for HDTVI /…

€6.61 €10.17 Save 35%

Description
Product Details

Safire
Balun (transceiver)
Optimized for HD video: HDTVI / HDCVI / AHD
1 channel
Passive
BNC/UTP 2 pins
Video (no audio)
Maximum reach HDTVI 250/250/100/100 m (720p/1080p/4 Mpx/4 K), HDCVI 400/250/200/200 m (720p/1080p/4 Mpx/4K) and AHD 350/200/200 m (720p/1080p/4 Mpx)
2 units (transmitter and receiver)
Quick connection

Features

SAFIRE UTP passive transceiver
Optimized for HDTVI / HDCVI / AHD
1 video channel
Passive, connector of 2 pins
Range: 200 ~ 400 m
2 units | Quick connection

Specs

Brand	Safire
Number of channels	1 channel
Power	Not required (Passive)
Video Input/Output	BNC (male)
Transmission distance	HDTVI 250/250/100/100m (720p/1080p/4 Mpx/4K) HDCVI 400/250/200/200m (720p/1080p/4 Mpx/4K) AHD 350/200/200m (720p/1080p/4 MP)
Twisted pair connector	Connector with 2 pins
Crosstalk	60 dB
Input impedance	75 Ohm
Output Impedance	100 Ohm
Cable category	UTP category 5/5E/6

Package content

Pair of passive HD transceivers

Data sheet

Power: Not required (Passive)
Transmission distance: HDTVI 250/250/100/100m (720p/1080p/4 Mpx/4K) HDCVI 400/250/200/200m (720p/1080p/4 Mpx/4K) AHD 350/200/200m (720p/1080p/4 MP)
Power supply: Not required (Passive)
Output Impedance: 100 Ohm
Number of channels: 1 channel
Twisted pair connector: Connector with 2 pins
Cable category: UTP category 5/5E/6
Video Input/Output: BNC (male)
Crosstalk: 60 dB
Input impedance: 75 Ohm
