  • Safire BA610-HAC - SAFIRE UTP passive transceiver, 4 en 1 (HDTVI HDCVI…

Safire BA610-HAC - SAFIRE UTP passive transceiver, 4 en 1 (HDTVI HDCVI…

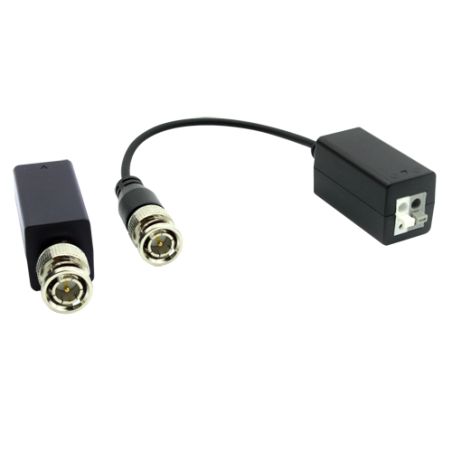

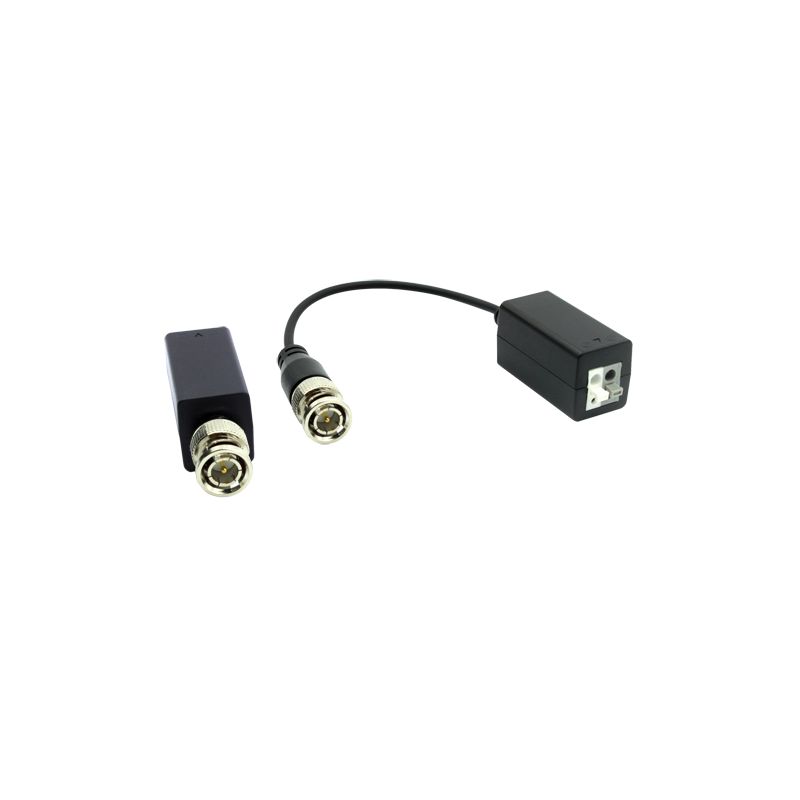

SAFIRE UTP passive transceiver - 4 en 1 (HDTVI HDCVI AHD CVBS) - 1 video channel - Passive, connector of 2 pins - Range: 150 ~ 400 m - 2 units
€4.25 €6.54 Save 35%
Tax included
Reference BA610-HAC
Brand Safire
Quantity
Available in 24/48h

Free shipping
Safire BA610-HAC - SAFIRE UTP passive transceiver, 4 en 1 (HDTVI HDCVI…

Safire BA610-HAC - SAFIRE UTP passive transceiver, 4 en 1 (HDTVI HDCVI…

€4.25 €6.54 Save 35%
  • Balun (Transceiver) SAFIRE
  • Optimized for 4 in 1 (HDTVI HDCVI AHD CVBS)
  • 1 channel
  • Passive
  • BNC/UTP 2 pins
  • Video
  • Maximum range HDTVI 150/250 m (3Mpx/1080p), HDCVI 150/250/400 m (4Mp/1080p/720p) and AHD 200/350 m (1080p/720p)
  • 2 units (transmitter and receiver, one without extender cable)

Features

  • SAFIRE UTP passive transceiver
  • 4 en 1 (HDTVI HDCVI AHD CVBS)
  • 1 video channel
  • Passive, connector of 2 pins
  • Range: 150 ~ 400 m
  • 2 units

Specs

BrandSAFIRE
Number of channels1 channel
PowerNot required (Passive)
Video Input/OutputBNC (male)
Transmission distanceHDTVI 150/250 m (3Mpx/1080p), HDCVI 150/250/400 m (4Mp/1080p/720p) and AHD 200/350 m (1080p/720p)
Twisted pair connectorConnector with 2 pins
Temp. operation-10º C ~ +55º C
Humidity0 ~ 95 %
Input impedance75 Ohm
Output Impedance100 Ohm
Cable categoryUTP category 5E/6

Package content

  • Passive HD transceiver with extender cable
  • Passive HD transceiver without extension cable

Data sheet

Power
Not required (Passive)
Temp. operation
-10º C ~ +55º C
Transmission distance
HDTVI 150/250 m (3Mpx/1080p), HDCVI 150/250/400 m (4Mp/1080p/720p) and AHD 200/350 m (1080p/720p)
Power supply
Not required (Passive)
Output Impedance
100 Ohm
Number of channels
1 channel
Twisted pair connector
Connector with 2 pins
Cable category
UTP category 5E/6
Video Input/Output
BNC (male)
Input impedance
75 Ohm
Humidity
0 ~ 95 %
